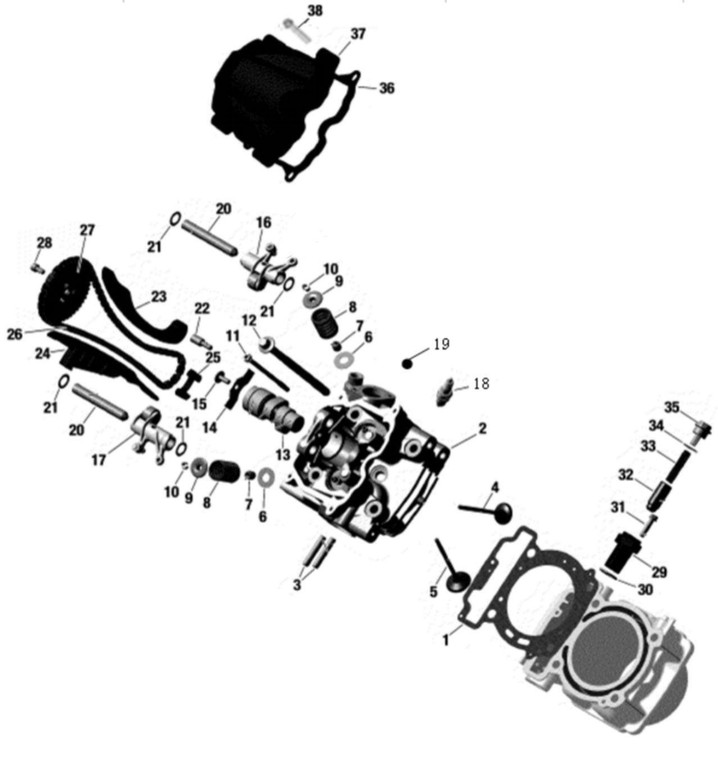

  • 2023 Aodes Desertcross 1000-6 HVAC (Cylinder 1 Head Assembly)

    • 2023 Aodes Desertcross 1000-6 HVAC (Cylinder 1 Head Assembly)

    Aodes

    SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

    (No reviews yet) Write a Review
    Condition:
    New

    Product Description


    Item #    		 Part Number Description
    Specification
    Quantity
    Warranty period
    1 21040100102 Cylinder Head Gasket Cylinder 1 Not Covered Under Warranty
    2 21140100201 Cylinder Front Head 1 24 Months (Unlimited Miles)
    3 21040100501 Stud M8×45 M 2 Not Covered Under Warranty
    4 21040100701 Exhaust Valve,27 Mm Mm 2 24 Months (Unlimited Miles)
    5 21040100601 Intake Valve, 31 Mm Mm 2 24 Months (Unlimited Miles)
    6 21040100801 Thrust Washer Seat 4 Not Covered Under Warranty
    7 21040100901 Valve Stem Seal Valve 4 Not Covered Under Warranty
    8 21040101001 Valve Spring Spring 4 Not Covered Under Warranty
    9 21040101101 Valve Spring Retainer   4 Not Covered Under Warranty
    10 21040101201 Valve Retainer Locks   8 Not Covered Under Warranty
    11 01214061051 Flanged Screw   2 Not Covered Under Warranty
    12 21050101201 Screw M 4 Not Covered Under Warranty
    12 21050101202 Screw M 4 Not Covered Under Warranty
    13 21140100901 Camshaft Camshaft 1 24 Months (Unlimited Miles)
    14 21040101601 Holding Strip Plate 1 24 Months (Unlimited Miles)
    15 01224060161 Hex Flange Bolt Flange 1 Not Covered Under Warranty
    16 21040103301 Rocker Arm Inlet Rocker 1 24 Months (Unlimited Miles)
    17 21040103401 Rocker Arm Exhaust Rocker 1 24 Months (Unlimited Miles)
    18 21040105101 Spark Plug DCPR7E 1 Not Covered Under Warranty
    19 21040100401 Steel Ball Sф 1 Not Covered Under Warranty
    20 21040103101 Rocker Shaft Shaft 2 24 Months (Unlimited Miles)
    21 21040103201 Flat Washer 18.6×12.4×0.5 4 Not Covered Under Warranty
    22 21040101701 Cam Retention Plate Bolts   1 Not Covered Under Warranty
    23 21050102301 Cam Chain Tensioner Guide Chain 1 Not Covered Under Warranty
    24 21050102401 Cam Chain Guide Guide 1 Not Covered Under Warranty
    25 21040102001 Cam Chain Guard Guard 1 Not Covered Under Warranty
    26 21050102601 Timing Chain 6.35 4×3 118 1 Not Covered Under Warranty
    27 21050102701 Camshaft Sprocket 42 Teeth 1 24 Months (Unlimited Miles)
    28 21050102801 Screw M6x12 3 Not Covered Under Warranty
    29 21040102401 Chain Tensioner Housing   1 Not Covered Under Warranty
    30 21040102501 O-Ring Ф21×2.5 1 Not Covered Under Warranty
    31 01224060221 Hex Flange Bolt Flange 2 Not Covered Under Warranty
    32 21040102601 Chain Tensioner Plunger Ten 1 Not Covered Under Warranty
    33 21040102901 Spring Spring 1 Not Covered Under Warranty
    34 21040102701 O-Ring Ф17x2 1 Not Covered Under Warranty
    35 21040102801 Cam Chain Tensioner Cap   1 Not Covered Under Warranty
    36 21040103801 Valve Cover Gasket Gasket 1 Not Covered Under Warranty
    37 21040103901 Valve Cover Cover 1 24 Months (Unlimited Miles)
    38 01224060251 Hex Flange Bolt   4 Not Covered Under Warranty
