2023 Aodes Desertcross 1000-6 HVAC (Dash Assembly 2)

2023 Aodes Desertcross 1000-6 HVAC (Dash Assembly 2)

Aodes

SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

(No reviews yet)
Condition:
New
Current Stock:
Description

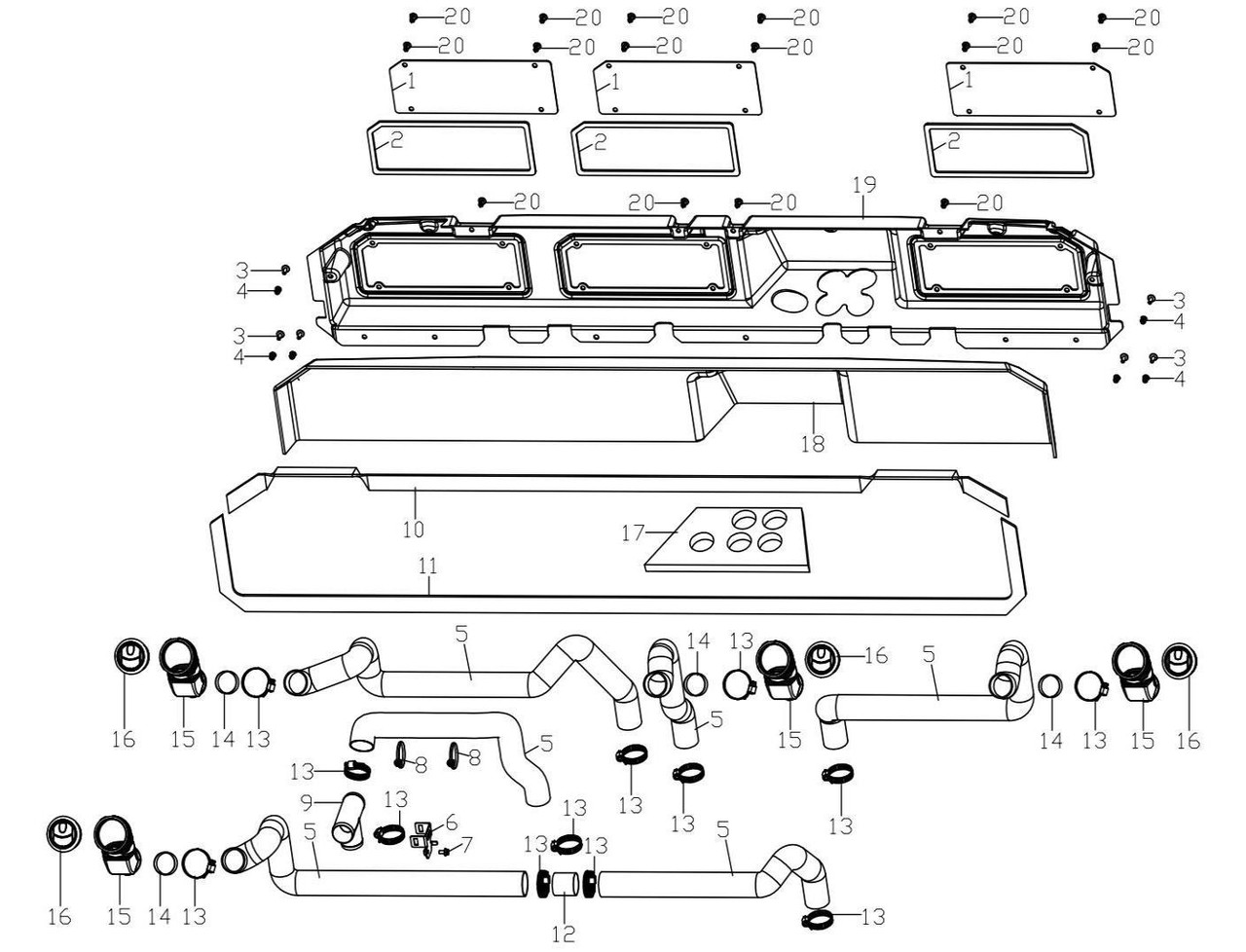

Item #		 Part Number Description
Specification
Quantity
Warranty period		 Fits Models
1 17110270100 Windshield Cover   3 Not Covered Under Warranty 1000-13
2 17114320230 Foam Seal For Windshield Cover 10×5×850 3 Not Covered Under Warranty 1000-13
3 03414060164 Socket Pan Head Screws M6×16 6
4 04512060127 Rivet Nut M6 14 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
5 17114310140 Corrugated Duct   6
6 17112010190 Air Duct Three-Way Fixing Plate   1
7 01254060126 Hex Flange Bolt M6×12 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
8 90103040053 Fixed Buckle 5×150 2
9 17112010180 Air Conditioning Duct Tee   1
10 17114320200 Windshield Both Sides Sealing Foam   1
11 17114320190 Windshield Lower Sealing Foam   1
12 17114310110 Liner Tube   1
13 12304010090 Clamp φ40-φ60 13
14 17114310050 Air Duct Bushing   4
15 17114310060 Air Duct Transfer Pipe   4
16 17114310070 Adjusted Air Out Let   4
17 17114320160 Windshield Air Outlet Sealing Foam EPDM 1
18 17114320320 Sealing Foam Inside Windshield 250×20×1700 1
19 17110270110 Windshield   1
20 10410190000 Push Pin   16 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
