2023 Aodes SportCross 1000 (Stator & Starter)
Item # |

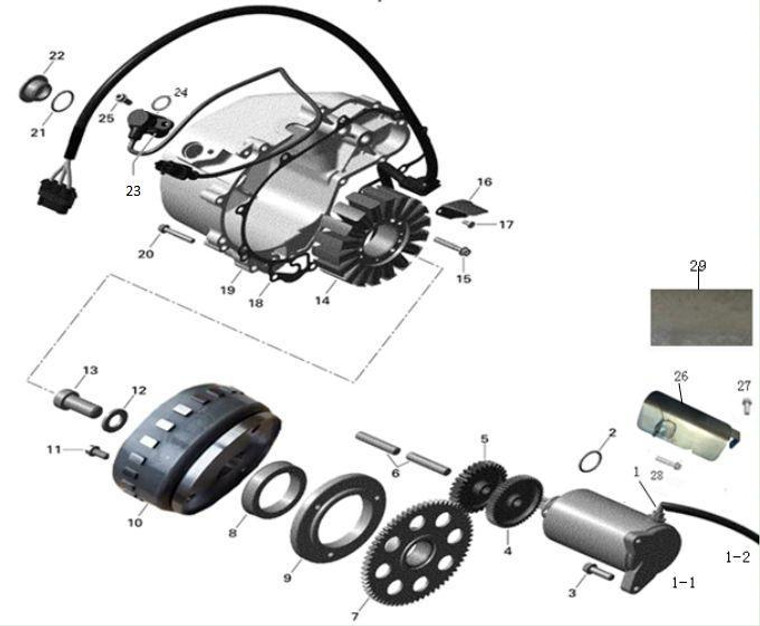

Part Number | Description |
Specification |
Quantity |
Warranty Period |
Fits Models |
| 1 | 21040109100 | Starter Assembly | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 2 | 21040109118 | O-Ring | 23.8×3.1 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 3 | 02224080251 | Hex Flange Bolt | 8x25 | 1 | Not Covered Under Warranty | All Models 800/1000 |
| 4 | 21040109201 | Double Gear | 49T/11T | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp |
| 5 | 21040109301 | Gear | 30T | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp |
| 6 | 21040105901 | Location Pin | 2 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 7 | 21040109401 | Free Wheel Gear | 60T | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp |
| 8 | 21040109501 | Sprag Clutch | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 9 | 21040109601 | Sprag Clutch Housing | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 10 | 21041000701 | Flywheel （ Used With 21040109702） | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 11 | 03344080161 | Flanged Screw | 8x16 | 3 | Not Covered Under Warranty | All Models 800/1000 |
| 12 | 21040109901 | Shim | 30×16.5×3 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 13 | 03344160357 | Socket Head Screw | 16x35 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 14 | 21040109702 | Stator Plate （Used With 21041000701） | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 15 | 01224060351 | Hex Flange Bolt | 6x35 | 3 | Not Covered Under Warranty | All Models 800/1000 |
| 16 | 21040110101 | Cable Inner Cover | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp | |
| 17 | 03113040081 | Tap Screw | 4x8 | 2 | Not Covered Under Warranty | All Models 800/1000 |
| 18 | 21040111301 | Gasket | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp | |
| 19 | 22040110201 | Cover | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 20 | 01224060351 | Hex Flange Bolt | 6x35 | 11 | Not Covered Under Warranty | All Models 800/1000 |
| 21 | 21040111101 | O-Ring | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp | |
| 22 | 21040111201 | Screw Plug | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp | |
| 23 | 21040110901 | Crankshaft Position Sensor Assembly | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 24 | 21040111001 | O-Ring | 16x2 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 25 | 01224060161 | Hex Flange Bolt | 6x16 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 26 | 21051101501 | Starter Shield | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp | |
| 27 | 01224060141 | Hex Flange Bolt | 6x14 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 28 | 01224080161 | Hex Flange Bolt | 8x16 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 29 | 21040117501 | Brake Cable-Heat Insulation Film (Thin) | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
