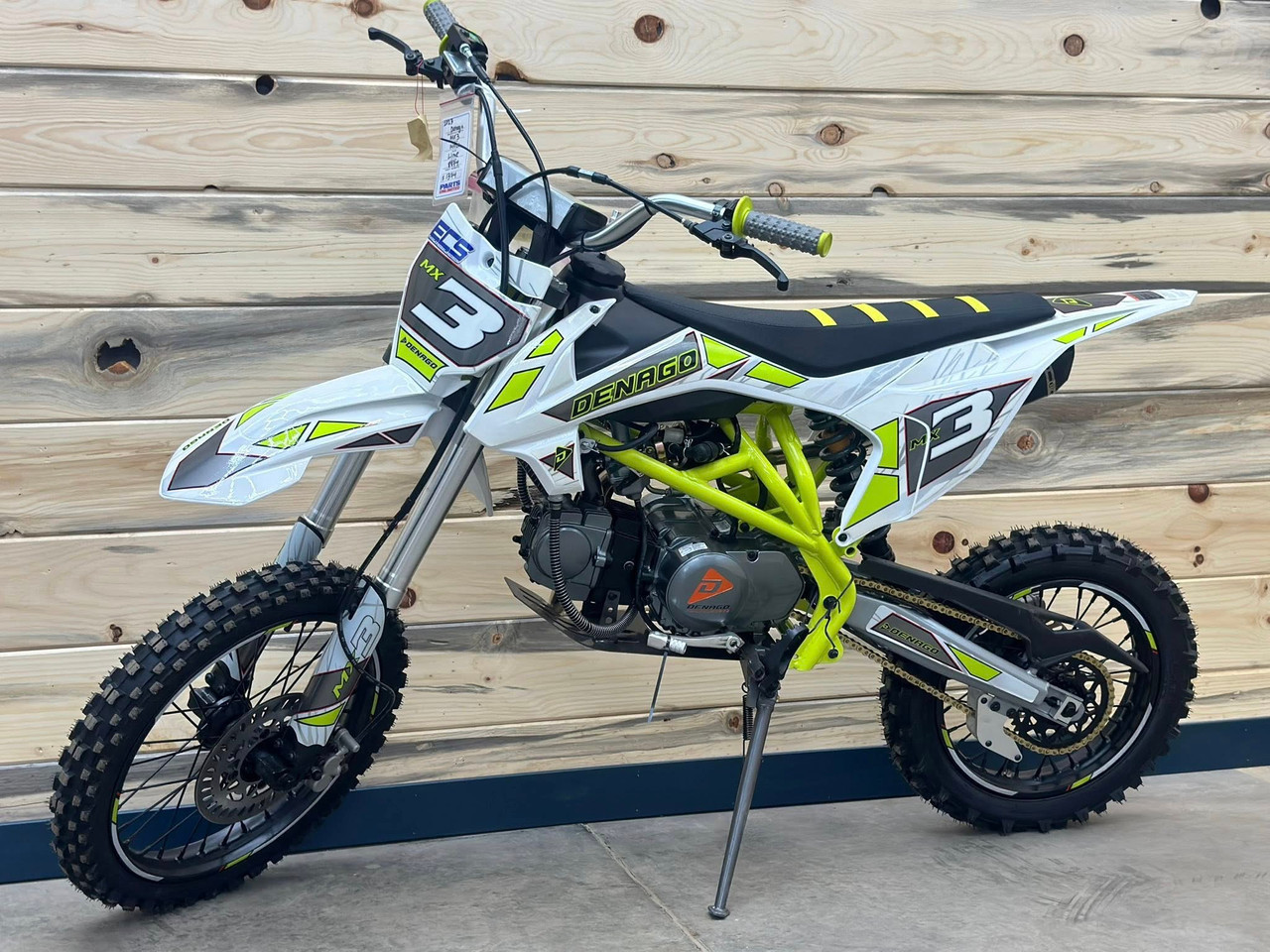

The heart of the Denago MX3 Lime Edition is its 140cc air-cooled 4-stroke engine, delivering 13.5 horsepower at 8,000 RPM for exhilarating acceleration and hill-climbing power. The SOHC (Single Overhead Cam) design features:
58mm bore x 52.4mm stroke oversquare configuration for optimal powerband
26mm Mikuni-style carburetor with altitude-adjustable jetting
High-performance red ignition coil for reliable spark in all conditions
External oil cooler maintains optimal engine temps (180-220°F operating range)
Stainless steel exhaust with ceramic-coated header (USFS-approved spark arrestor)
4-speed manual transmission with heavy-duty wet clutch (7 friction plates)
Precision-cut gears with positive engagement dogs
Optimized gear ratios:
1st: 3.083 (17/52) - 30% lower than MX2 for technical climbs
2nd: 1.882 (17/32)
3rd: 1.400 (21/30)
4th: 1.130 (23/26) - 12% taller than MX2 for top speed
CNC-machined folding shifter with 3-position adjustment
Inverted 37mm hydraulic forks:
6.3" of travel (20% more than MX2)
20-click compression damping adjustment
Adjustable triple clamps (3 handlebar positions)
Hydraulic monoshock rear suspension:
5.9" of wheel travel
7-position preload adjustment
Rebound damping control
Front hydraulic disc:
240mm wave rotor (10% larger than MX2)
Dual-piston caliper with CNC-machined bracket
Rear hydraulic disc:
200mm wave rotor
Single-piston caliper
Folding levers:
7075-T6 aluminum construction
6-position reach adjustment
Front wheel:
17" diameter | 1.85" width
70/100-17 knobby tire (6-ply rating)
Rear wheel:
14" diameter | 2.50" width
90/100-14 knobby tire (6-ply rating)
#428 gold X-ring chain:
Self-lubricating design
50% longer lifespan than standard chains
35" seat height (optimal for riders 5'2" to 6'0")
Lime color-matched grips:
Dual-density rubber with ergonomic palm swell
Adjustable controls:
Brake lever (6 positions)
Clutch lever (6 positions)
| Category | Specification |
|---|---|
| Engine | 140cc 4-stroke SOHC |
| Bore x Stroke | 58mm x 52.4mm |
| Compression Ratio | 10.2:1 |
| Fuel System | 26mm Carburetor |
| Transmission | 4-speed manual |
| Final Drive | #428 Gold X-Ring Chain |
| Suspension (F/R) | Inverted Hydraulic / Monoshock |
| Brakes (F/R) | Hydraulic Disc (240mm/200mm) |
| Tires (F/R) | 70/100-17 / 90/100-14 |
| Wheelbase | 50" |
| Seat Height | 35" |
| Ground Clearance | 14.5" |
| Fuel Capacity | 1.2 gal (4.5L) |
| Dry Weight | 163 lbs |
Powerful 4 Stroke Engine
The engine is the lifeline of all powersports products and fun factor of everthing we ride.
Manual 4 Speed Transmission with Activated Clutch
Adjustable Suspension Front & Rear
The comfort and confidence you have in pushing your machine to its fullest potential comes from your suspension, so having a shock tht can adapt to your weight and speed is extremely important.
Adjustable Suspension Front & Rear
Hydraulic Disc Brakes Front & Rear
Having consistent and effective stopping power is as essential as a high-performance engine, nothing stops better then hydraulic disc brakes!
Folding & Adjustable Brake Levers
When a motorcycles falls over, it commonly breaks levers which makes operating the bike very difficult. Our bikes come with retactable brake levers, which reduce that possibility considerably.
Side Stand
Kickstands on motorcycles have been around since the first motorcycle was invented, making parking your bike extremely convenient. Many dirt bikes sold today do not have them, which is a big inconvenience.
Color-Matched Comfort Top Grips
Grips connect the rider to the machine, and our color matched comfort top grips achieve that goal in stride.
Throttle Assembly with Tapered Bearing
Controlling your throttle consistently is the most important thing you will do as a rider, and having a smooth, light throttle is a must in performing this task.
CNC Anodized Aluminum Brake Reservoir Caps
Gold Drive Chain
A motorcycle's chain connects the motor to the rear wheel and produces power to the ground. Denago used a high grade gold-plated chain to ensure that connection.
CNC Andoized Aluminum Chain Adjuster Blocks
Color matched aluminum chain adjuster blacks are one of many high end components on all Denago bikes! They work great and look amazing!
Powder Coated Black Wheels
All Denago bikes come equipped with high quality black anodized rims that work and look great
Powder Coated Black Exhaust System
Color Matched CNC Anodized Aluminum Fuel Vent Cap
High Performance Red Ignition Coil Wire
Keyed Ignition
CNC Andodized Aluminum Folding Shifter Lever
All Denago Bikes come standard with retractable length adjustable aluminum levers!
Stainless Steel Exhaust Pipe
Adjustable Triple Clamps
External Oil Cooler
