Product Description

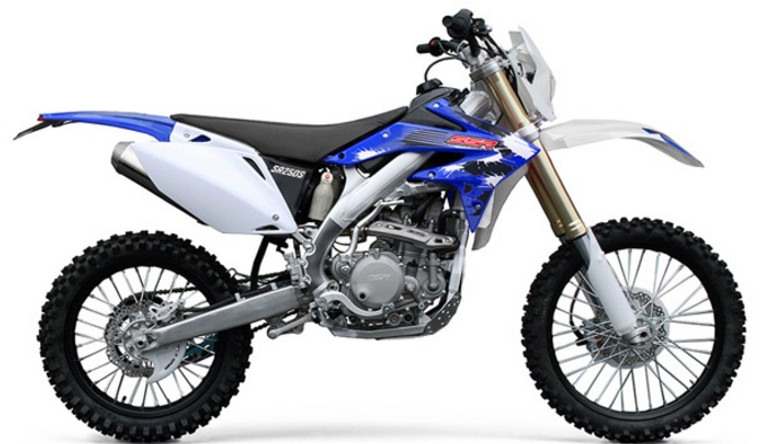

Looking for OEM parts for your 2016-2018 SSR SR250 dirt bike? Look no further! We have the SR250S Full Parts Schematic to help you find all the parts you need. Browse through our comprehensive collection of parts numbers, schematics, and pricing, making the ordering process hassle-free.
With the SR250S Full Parts Schematic, you can easily locate the exact parts you require for your SSR SR250 dirt bike. Our user-friendly interface and detailed schematics ensure that you never miss any crucial component. We understand the importance of having high-quality OEM parts for optimum performance and longevity, which is why we offer only genuine parts. Call us now and get your SR250S Full Parts Schematic to find the perfect OEM parts for your 2016-2018 SSR SR250 dirt bike!
2016-2018 SR250S | ||||||

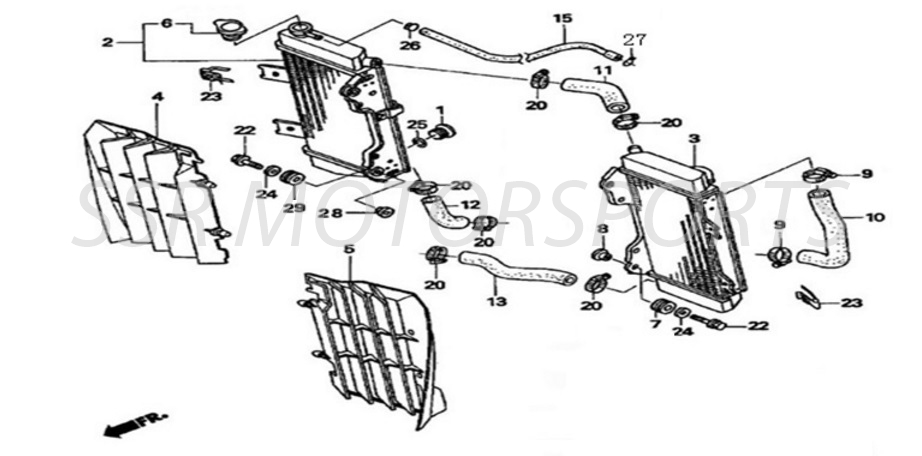

RADIATOR | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00010-06-00 | RADIATOR DRAIN PLUG | M16X1.25 | 1 | Pc. | $3.50 |
2 | A00011-06-00 | RIGHT RADIATOR | 1 | Pc. | $112.00 | |
3 | A00012-06-00 | LEFT RADIATOR | 1 | Pc. | $112.00 | |
4 | A00051-02-01 | RIGHT RADIATOR GRILLE | WHITE | 1 | Pc. | $18.00 |
5 | A00052-02-01 | LEFT RADIATOR GRILLE | WHITE | 1 | Pc. | $18.00 |
6 | A00025-06-00 | RADIATOR CAP | 1 | Pc. | $8.00 | |
7 | A00014-06-00 | RUBBER GROMMET | 4 | Pcs. | $4.00 | |
8 | A00015-06-00 | COLLAR | 2 | Pcs. | $1.50 | |
9 | A00021-24-02 | HOSE CLAMP | 2 | Pcs. | $2.00 | |
10 | A00016-06-00 | COOLANT HOSE A | 1 | Pc. | $14.00 | |
11 | A00017-06-00 | COOLANT HOSE B | 1 | Pc. | $13.00 | |
12 | A00018-06-00 | COOLANT HOSE C | 1 | Pc. | $13.00 | |
13 | A00019-06-00 | COOLANT HOSE D | 1 | Pc. | $13.00 | |
15 | A00020-06-00 | HOSE | 5.5x8x825 | 1 | Pc. | $18.00 |
20 | A00022-24-02 | HOSE CLAMP | 6 | Pcs. | $2.00 | |
22 | A00012-19-01 | FLANGE BOLT | M6X25 | 4 | Pcs. | $1.50 |
23 | A00343-22-01 | U-SHAPED CLIP NUT | M6 | 4 | Pcs. | $1.50 |
24 | A00044-21-01 | WASHER | 6.4X18X1.6 | 4 | Pcs. | $1.50 |
25 | A00037-06-00 | SEALING WASHER | 1 | Pc. | $1.50 | |
26 | A00023-24-03 | WIRE HOSE CLAMP | 2 | Pcs. | $1.50 | |
27 | A00024-24-03 | WIRE HOSE CLAMP | 1 | Pc. | $1.50 | |
28 | A00099-06-00 | COLLAR | 1 | Pc. | $1.50 | |
29 | A00098-06-00 | RUBBER GROMET | 1 | Pc. | $1.50 | |

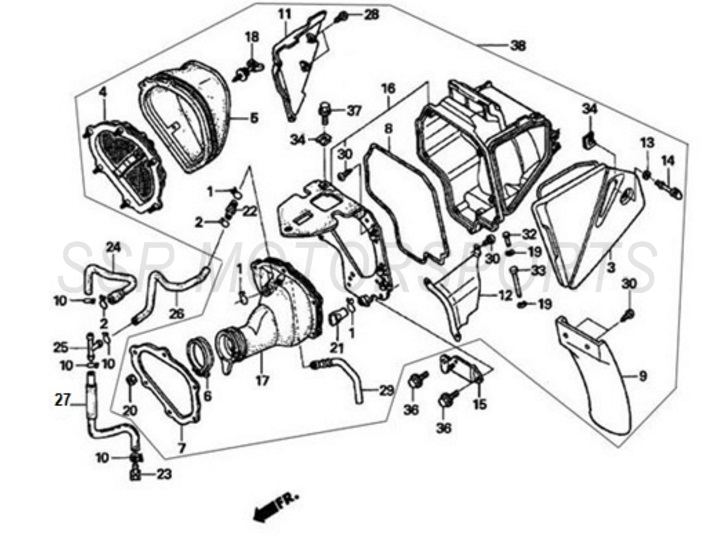

AIR CLEANER | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00025-24-03 | WIRE HOSE CLAMP | 3 | Pcs. | $1.50 | |
2 | A00026-24-03 | WIRE HOSE CLAMP | 16MM | 2 | Pcs. | $1.50 |
3 | A00027-14-00 | AIRBOX LID | 1 | Pc. | $24.00 | |
4 | A00028-14-00 | AIR FILTER HOLDER SCREEN | 1 | Pc. | $30.00 | |
5 | A00063-14-00 | AIR FILTER ELEMENT | TWIN AIR | 1 | Pc. | $60.00 |
6 | A00027-24-02 | HOSE CLAMP | 40-60mm | 1 | Pc. | $7.00 |
7 | A00031-14-00 | AIRBOX BOOT RETAINER | 1 | Pc. | $13.00 | |
8 | A00032-14-00 | AIR BOX SEAL | 1 | Pc. | $8.00 | |
9 | A00067-14-00 | MUDFLAP | 1 | Pc. | $8.00 | |
10 | A00028-24-03 | WIRE HOSE CLAMP | 12MM | 5 | Pcs. | $1.50 |
11 | A00034-14-00 | RIGHT AIRBOX COVER | 1 | Pc. | $18.00 | |
12 | A00035-14-00 | LEFT AIRBOX COVER | 1 | Pc. | $18.00 | |
13 | A00098-21-01 | WASHER | 1 | Pcs. | $1.50 | |
14 | A00036-14-00 | FILTER COVER BOLT | 1 | Pc. | $1.50 | |
15 | A00037-14-00 | REGULATOR / RECTIFIER BRACKET | 1 | Pc. | $6.00 | |
16 | A00038-14-00 | AIRBOX | 1 | Pc. | $77.00 | |
17 | A00039-14-00 | AIR BOX BOOT | 1 | Pc. | $39.00 | |
18 | A00247-19-01 | AIR FILTER WINGBOLT | 1 | Pc. | $4.00 | |
19 | A00029-24-07 | CIRCLIP | 2 | Pcs. | $1.50 | |
20 | A00028-22-03 | FLANGE NUT | 6 | Pcs. | $1.50 | |
21 | A00041-14-00 | AIRBOX DRAIN HOSE | 1 | Pc. | $4.00 | |
22 | A00042-14-00 | TUBE JOINT | 1 | Pc. | $7.00 | |
23 | A00076-14-00 | PLUG | 1 | Pc. | $4.00 | |
24 | A00044-14-00 | VENT TUBE | 1 | Pc. | $8.00 | |
25 | A00078-14-00 | 3-WAY CONNECTOR | 1 | Pc. | $3.50 | |
26 | A00046-14-00 | VENT TUBE | 1 | Pc. | $8.00 | |
27 | A00047-14-00 | BREATHER TUBE | 1 | Pc. | $8.00 | |
28 | A00012-20-03 | SCREW | 2 | Pcs. | $1.50 | |
29 | A00049-14-00 | TUBE | 1 | Pc. | $8.00 | |
30 | A00039-20-02 | PAN HEAD SCREW | 8 | Pcs. | $1.50 | |
32 | A00014-25-00 | PIN | 1 | Pc. | $1.50 | |
33 | A00015-25-00 | PIN | 1 | Pc. | $1.50 | |
34 | A00001-22-05 | CLIP NUT | M6 | 2 | Pc. | $1.50 |
36 | A00118-19-01 | FLANGE BOLT | 2 | Pcs. | $1.50 | |
37 | A00119-19-01 | FLANGE BOLT | 1 | Pc. | $1.50 | |
38 | A00082-14-00 | AIR BOX ASSY | 1 | Assy. | $150.00 | |

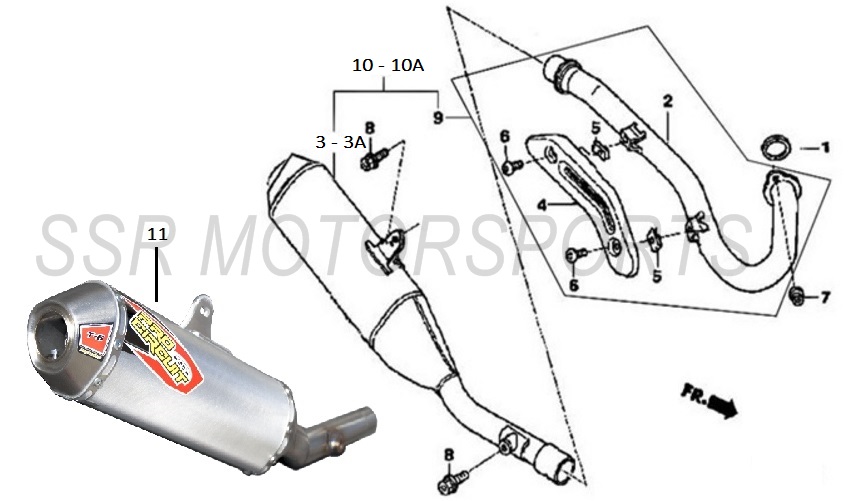

EXHAUST SYSTEM | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00029-13-00 | EXHAUST GASKET | 1 | Pc. | $8.00 | |
2 | A00013-10-00 | HEAD PIPE | 1 | Pc. | $77.00 | |
3 | A00014-10-00 | MUFFLER ASSY | 1 | Assy. | $199.00 | |
3A | A00115-10-00 | MUFFLER ASSY | CARBON FIBER END CAP | 1 | Assy. | $219.00 |
4 | A00015-10-00 | HEAT SHIELD | 1 | Pc. | $30.00 | |
5 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
6 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
7 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |
8 | A00015-19-01 | FLANGE BOLT | M8X20 | 2 | Pcs. | $1.50 |
9 | A00016-10-00 | EXHAUST HEAD PIPE ASSY | 1 | Assy. | $96.00 | |
10 | A00017-10-00 | EXHAUST SYSTEM ASSY | ALUMINUM | 1 | Assy. | $265.00 |
10A | A00114-10-00 | EXHAUST SYSTEM ASSY | CARBON FIBER END CAP | 1 | Assy. | $292.00 |
11 | A00073-01-00 | PRO CIRCUIT T-6 MUFFLER W/ SPARK ARRESTOR | OPTIONAL | 1 | Pc. | $472.00 |
12 | A00301-13-00 | MUFFLER PACKING GASKET | NOT PICTURED | 1 | Pc. | $11.00 |

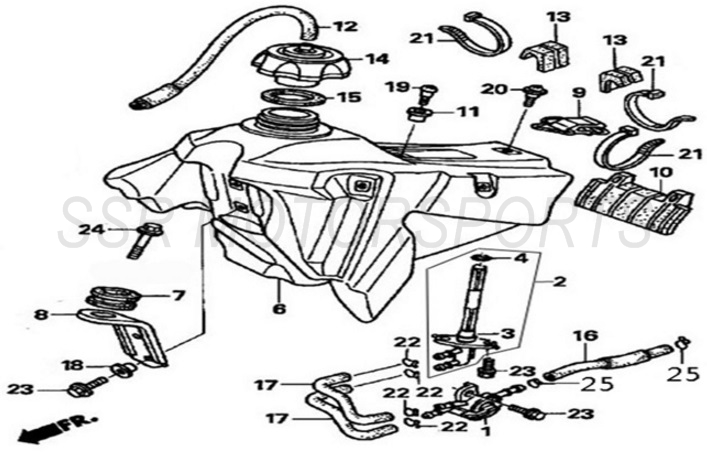

FUEL TANK | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00080-12-00 | FUEL PETCOCK ASSY | 1 | Assy. | $21.00 | |
2 | A00081-12-00 | FUEL PICKUP W/ SCREEN ASSY | 1 | Assy. | $24.00 | |
3 | A00061-12-00 | FUEL PICKUP SCREEN | 1 | Pc. | $13.00 | |
4 | A00086-27-00 | O-RING | 1 | Pc. | $1.50 | |
6 | A00063-12-02 | FUEL TANK | BLACK | 1 | Pc. | $150.00 |
7 | A00377-12-00 | RUBBER GROMMET | 1 | Pc. | $2.50 | |
8 | A00378-12-00 | FRONT FUEL TANK STAY | 1 | Pc. | $7.00 | |
9 | A00066-12-00 | FUEL TANK STRAP | 1 | Pc. | $8.00 | |
10 | A00067-12-00 | REAR RUBBER FUEL TANK DAMPER | 1 | Pc. | $7.00 | |
11 | A00090-12-00 | SEAT COLLAR | PLASTIC | 1 | Pc. | $1.50 |
12 | A00069-12-00 | FUEL TANK VENT HOSE | 4X8X300 | 1 | Pc. | $11.00 |
13 | A00070-12-00 | FUEL TANK RUBBER DAMPER | 4 | Pcs. | $8.00 | |
14 | A00071-12-00 | FUEL TANK CAP | 1 | Pc. | $14.00 | |
15 | A00072-12-00 | FUEL TANK CAP GASKET | 1 | Pc. | $7.00 | |
16 | A00073-12-00 | FUEL HOSE A | 7.3X12.5X25 | 1 | Pc. | $18.00 |
17 | A00074-12-00 | FUEL HOSE B | 7X12 | 2 | Pcs. | $8.00 |
18 | A00097-12-00 | COLLAR | 6.3X16X6.5 | 1 | Pc. | $1.50 |
19 | A00108-19-03 | BOLT | 1 | Pc. | $1.50 | |
20 | A00109-19-03 | BOLT | 1 | Pc. | $1.50 | |
21 | A00006-24-01 | ZIP TIE | 3.6X250 | 4 | Pcs. | $2.00 |
22 | A00031-24-02 | HOSE CLAMP | 4 | Pcs. | $1.50 | |
23 | A00002-19-01 | CASE FLANGE BOLT | M6X16 | 5 | Pcs. | $1.50 |
24 | A00001-19-01 | FLANGE BOLT | M6X30 | 1 | Pc. | $1.50 |
25 | A00063-24-02 | HOSE CLAMP | 2 | Pcs. | $1.50 | |

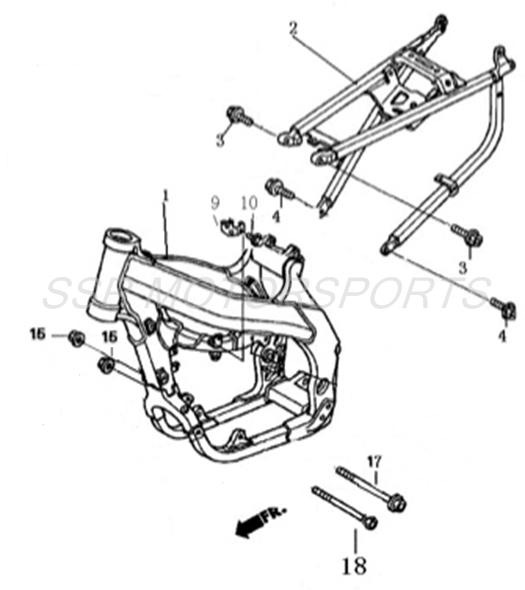

FRAME | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00026-11-00 | FRAME | *OVERSIZE* | 1 | Pc. | $1,086.00 |
2 | A00031-11-00 | SUBFRAME | 1 | Pc. | $168.00 | |
3 | A00041-19-01 | FLANGE BOLT | M8X30 | 2 | Pcs. | $1.50 |
4 | A00079-19-01 | FLANGE BOLT | M10X30 | 2 | Pcs. | $2.00 |
9 | A00030-11-00 | STAY | 1 | Pc. | $2.50 | |
10 | A00002-19-01 | CASE FLANGE BOLT | M6X16 | 3 | Pcs. | $1.50 |
15 | A00004-22-04 | FLANGE LOCKNUT | M10 | 2 | Pcs. | $1.50 |
17 | A00069-19-01 | FLANGE BOLT | M10X135 | 1 | Pc. | $4.00 |
18 | A00480-19-01 | FLANGE BOLT | M10X145 | 1 | Pc. | $4.00 |

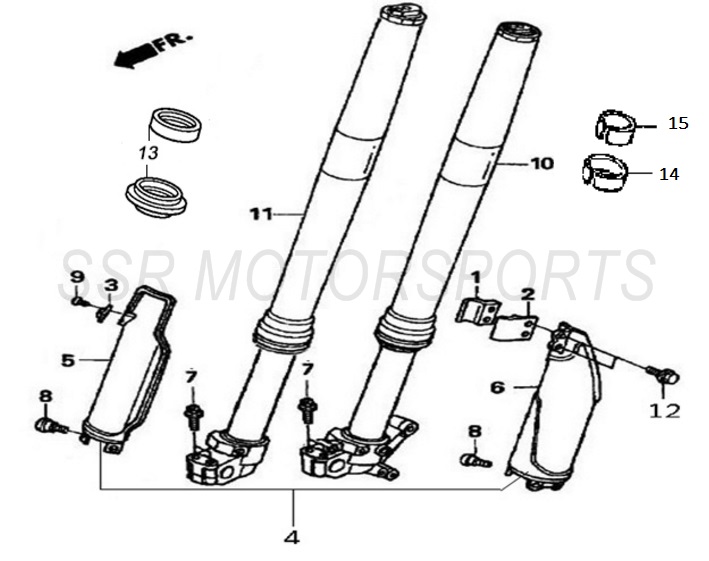

FRONT SUSPENSION | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00078-16-00 | FRONT BRAKE HOSE HOLDER A | 1 | Pc. | $2.50 | |
2 | A00079-16-00 | FRONT BRAKE HOSE HOLDER B | 1 | Pc. | $2.50 | |
3 | A00055-16-00 | SPEEDOMETER WIRE RETAINER | 1 | Pc. | $1.50 | |
4 | A00053-02-01 | FORK PROTECTOR SET | 1 | Set | $59.00 | |
5 | A00088-02-01 | LEFT FORK PROTECTOR | WHITE | 1 | Pc. | $33.00 |
6 | A00089-02-01 | RIGHT FORK PROTECTOR | WHITE | 1 | Pc. | $33.00 |
7 | A00014-19-01 | FLANGE BOLT | M8X40 | 4 | Pcs. | $2.00 |
8 | A00008-19-07 | ALLEN BOLT | M6X12 | 6 | Pcs. | $1.50 |
9 | A00111-19-01 | FLANGE BOLT | 1 | Pc. | $1.50 | |
10 | A00075-16-00 | RIGHT FORK ASSY | 1 | Assy. | $322.00 | |
11 | A00077-16-00 | LEFT FORK ASSY | 1 | Assy. | $322.00 | |
12 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
13 | A00687-16-00 | FORK/DUST SEAL SET | SEAL + DUST SEAL | 2 | Set | $30.00 |
14 | A00692-16-00 | GUIDE BUSHING | 2 | Pcs. | $8.00 | |
15 | A00693-16-00 | SLIDER BUSHING | 2 | Pcs. | $8.00 | |

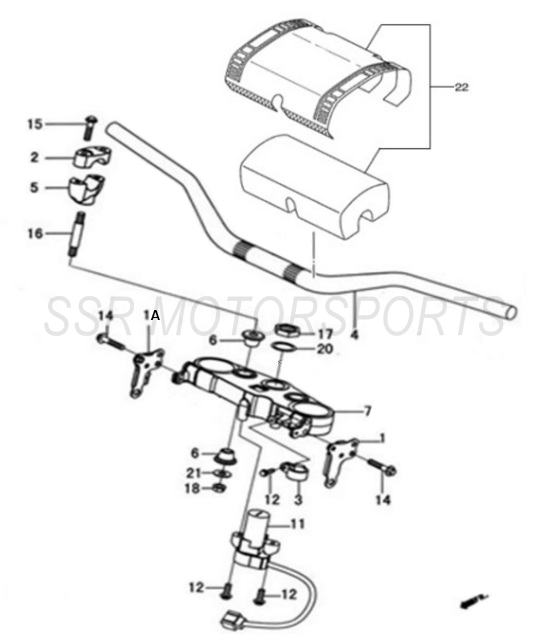

HANDLEBAR COMPONENTS | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00124-05-00 | LEFT HEADLIGHT STAY | 1 | Pc. | $8.00 | |
1A | A00125-05-00 | RIGHT HEADLIGHT STAY | 1 | Pc. | $8.00 | |
2 | A00062-05-00 | UPPER HANDLEBAR CLAMP | 2 | Pcs. | $24.00 | |
3 | A00123-05-00 | FRONT BRAKE HOSE GUIDE | 1 | Pc. | $2.50 | |
4 | A00064-05-00 | HANDLEBAR | 1 | Pc. | $142.00 | |
5 | A00065-05-00 | LOWER HANDLEBAR CLAMP | 2 | Pcs. | $24.00 | |
6 | A00066-05-00 | RUBBER HANDLEBAR DAMPER | 4 | Pcs. | $3.50 | |
7 | A00067-05-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $104.00 | |
11 | A00062-08-01 | IGNITION SWITCH | W/ 2 KEYS | 1 | Pc. | $51.00 |
12 | A00007-19-03 | BOLT | M6X18 | 1 | Pc. | $1.50 |
14 | A00014-19-01 | FLANGE BOLT | M8X40 | 4 | Pcs. | $2.00 |
15 | A00007-19-01 | FLANGE BOLT | M8X25 | 4 | Pcs. | $1.50 |
16 | A00120-19-04 | STUD | M10 | 2 | Pcs. | $7.00 |
17 | A00345-22-01 | STEERING STEM NUT | M26 | 1 | Pc. | $7.00 |
18 | A00014-22-01 | NUT | M10X1.25 | 2 | Pcs. | $1.50 |
20 | A00041-21-01 | WASHER | 26.5X35X1 | 1 | Pc. | $4.00 |
21 | A00002-21-01 | WASHER | M10 | 1 | Pc. | $1.50 |
22 | A00444-05-00 | HANDLEBAR PAD WITH COVER | 1 | Pc. | $24.00 | |

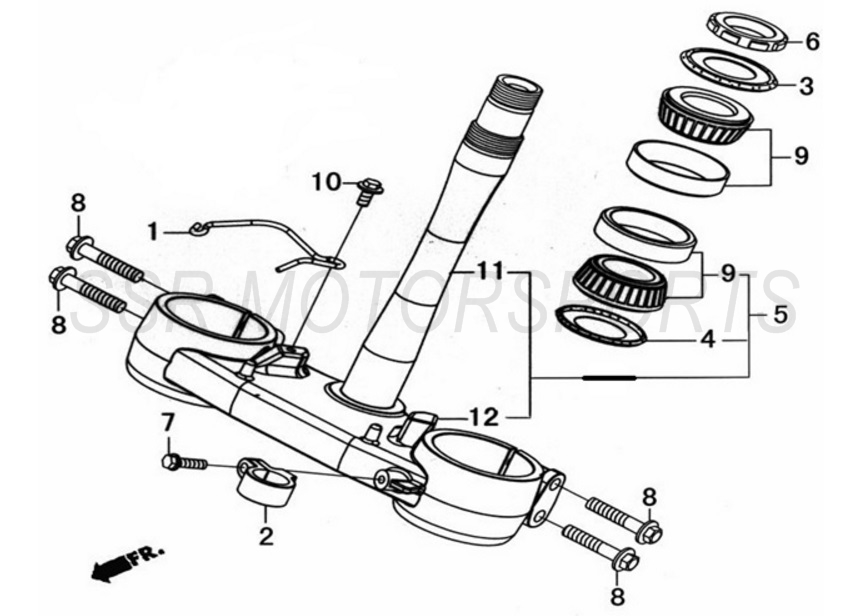

LOWER TRIPLE CLAMP | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00361-15-00 | STAY | 1 | Pc. | $2.50 | |
2 | A00063-05-00 | FRONT BRAKE HOSE GUIDE | 1 | Pc. | $2.50 | |
3 | A00033-15-00 | UPPER DUST SEAL | 1 | Pc. | $7.00 | |
4 | A00034-15-00 | LOWER DUST SEAL | 1 | Pc. | $7.00 | |
5 | A00035-15-00 | LOWER TRIPLE CLAMP W/ STEM + BEARING ASSY | 1 | Assy. | $218.00 | |
6 | A00036-15-01 | STEERING STEM NUT | M30X1 | 1 | Pc. | $8.00 |
7 | A00066-19-01 | FLANGE BOLT | M6X18 | 1 | Pc. | $1.50 |
8 | A00016-19-01 | FLANGE BOLT | M8X45 | 4 | Pcs. | $2.00 |
9 | A00037-15-00 | BEARING SET | TR0627 | 2 | Pcs. | $36.00 |
10 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
11 | A00038-15-00 | STEERING STEM | 1 | Pc. | $69.00 | |
12 | A00039-15-00 | LOWER TRIPLE CLAMP | 1 | Pc. | $112.00 | |

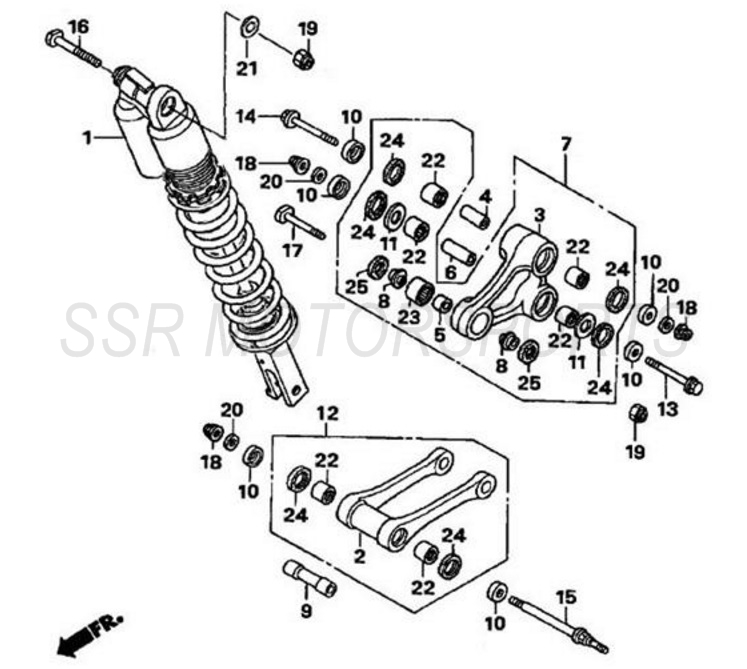

REAR SUSPENSION | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00058-16-00 | REAR SHOCK ASSY | 1 | Assy. | $356.00 | |
2 | A00059-16-00 | REAR SUSPENSION CONNECTING ROD | 1 | Pc. | $72.00 | |
3 | A00060-16-00 | SUB-ARM CONNECTING LINK | 1 | Pc. | $77.00 | |
4 | A00061-16-00 | SUB-ARM SLEEVE 2 | 12X20X37 | 1 | Pc. | $13.00 |
5 | A00062-16-00 | SUB-ARM SLEEVE 3 | 14X19X10.5 11 | 1 | Pc. | $8.00 |
6 | A00063-16-00 | SUB-ARM SLEEVE 1 | 12X20X50 | 1 | Pc. | $14.00 |
7 | A00064-16-00 | CONNECTING ROD SUB-ASSY | 1 | Assy. | $142.00 | |
8 | A00065-16-00 | SUB-ARM FRONT SPACER SLEEVE | 2 | Pcs. | $3.50 | |
9 | A00066-16-00 | CONNECTING ROD SLEEVE | 12X20X77.5 | 1 | Pc. | $18.00 |
10 | A00067-16-00 | CONNECTING ROD SPACER SLEEVE | 12X25X5 | 6 | Pcs. | $2.50 |
11 | A00024-21-01 | WASHER | 20X31X1.5 | 2 | Pcs. | $1.50 |
12 | A00069-16-00 | CONNECTING ROD ASSY | 1 | Assy. | $89.00 | |
13 | A00019-19-01 | FLANGE BOLT | M12X95X1.25 | 1 | Pc. | $6.00 |
14 | A00072-19-01 | FLANGE BOLT | M12X80X1.25 | 1 | Pc. | $4.00 |
15 | A00014-19-04 | STUD | M12X173X1.25 | 1 | Pc. | $8.00 |
16 | A00081-19-07 | SPECIAL BOLT | M10X63X1.25 | 1 | Pc. | $4.00 |
17 | A00005-19-07 | SPECIAL BOLT | M10X45X1.25 | 1 | Pc. | $3.50 |
18 | A00003-22-34 | FLANGE LOCKNUT | M12X1.25 | 3 | Pcs. | $2.50 |
19 | A00004-22-34 | FLANGE LOCKNUT | M10X1.25 | 2 | Pcs. | $2.00 |
20 | A00001-21-01 | WASHER | M12 | 2 | Pcs. | $1.50 |
21 | A00002-21-01 | WASHER | M10 | 1 | Pc. | $1.50 |
22 | A00109-28-00 | NEEDLE BEARING | FH 2016 20X26X15 | 6 | Pcs. | $13.00 |
23 | A00110-28-01 | NEEDLE BEARING | FH1913 19X26X13 | 1 | Pc. | $13.00 |
24 | A00068-26-00 | DUST SEAL | 6 | Pcs. | $3.50 | |
25 | A00069-26-00 | DUST SEAL | 2 | Pcs. | $2.50 | |

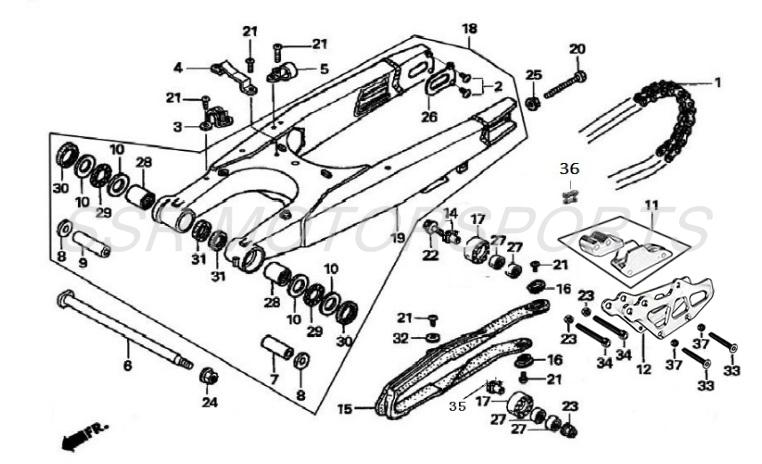

SWINGARM | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00033-07-00 | DRIVE CHAIN | 520X114L | 1 | Pc. | $168.00 |
2 | A00007-20-12 | CS SCREW | M5×12 | 4 | Pcs. | $1.50 |
3 | A00034-07-00 | GUIDE A | 1 | Pc. | $2.50 | |
4 | A00035-07-00 | GUIDE B | 1 | Pc. | $1.50 | |
5 | A00036-07-00 | GUIDE C | 1 | Pc. | $2.50 | |
6 | A00037-07-00 | SWINGARM AXLE | M14X247X1.5 | 1 | Pc. | $35.00 |
7 | A00038-07-00 | BUSHING LEFT | 17X22X46 | 1 | Pc. | $14.00 |
8 | A00039-07-00 | WASHER | 17X30X6 | 2 | Pcs. | $2.00 |
9 | A00040-07-00 | BUSHING RIGHT | 17X22X54 | 1 | Pc. | $18.00 |
10 | A00039-21-01 | WASHER | AS 22352 | 4 | Pcs. | $2.00 |
12 | A00431-07-00 | LOWER CHAIN GUIDE ASSY | INCLUDES HARDWARE | 1 | Assy. | $63.00 |
14 | A00045-07-00 | COLLAR T | 8.5X16X8.5 | 1 | Pc. | $1.50 |
15 | A00046-07-00 | CHAIN SLIDER | 1 | Pc. | $59.00 | |
16 | A00069-07-00 | CHAIN SLIDER WASHER | 28.5X21X5.5 | 2 | Pcs. | $1.50 |
17 | A00047-07-00 | CHAIN ROLLER | 2 | Pcs. | $13.00 | |
18 | A00071-07-00 | SWINGARM ASSY | 1 | Assy. | $367.00 | |
19 | A00049-07-00 | SWINGARM | 1 | Pc. | $308.00 | |
20 | A00041-19-03 | BOLT | M8X50 | 2 | Pcs. | $2.00 |
21 | A00007-20-01 | SCREW | M5X12 | 9 | Pcs. | $1.50 |
22 | A00014-19-01 | FLANGE BOLT | M8X40 | 1 | Pc. | $2.00 |
23 | A00093-22-03 | FLANGE NUT | M6 | 3 | Pcs. | $1.50 |
24 | A00003-22-01 | FLANGE NUT | M14X1.5 | 1 | Pc. | $2.50 |
25 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |
26 | A00050-07-00 | CHAIN ADJUSTER PLATE | 2 | Pcs. | $8.00 | |
27 | A00023-28-00 | BEARING | 608 LU | 3 | Pcs. | $21.00 |
28 | A00024-28-00 | NEEDLE BEARING | 22X29X30 | 2 | Pcs. | $11.00 |
29 | A00025-28-00 | BEARING | AXK 22352 | 2 | Pcs. | $11.00 |
30 | A00009-26-00 | OUTER DUST SEAL | 30X37X4 | 2 | Pcs. | $11.00 |
31 | A00010-26-00 | INNER DUST SEAL | 22X29X4 | 2 | Pcs. | $4.00 |
32 | A00040-21-01 | WASHER | 5.5X18X2 | 1 | Pc. | $1.50 |
33 | A00401-19-00 | TAPERED HEAD ALLEN BOLT | M5X50 | 2 | Pc. | $1.50 |
34 | A00400-19-00 | ALLEN BOLT | M6X55 | 2 | Pcs. | $1.50 |
35 | A00081-07-00 | LOWER CHAIN ROLLER BUSHING | 1 | Pc. | $2.50 | |
36 | A00344-07-00 | CHAIN LINK | 520 | 1 | Pc. | $8.00 |
37 | A00331-22-00 | LOCKNUT | M5 | 2 | Pcs. | $1.50 |

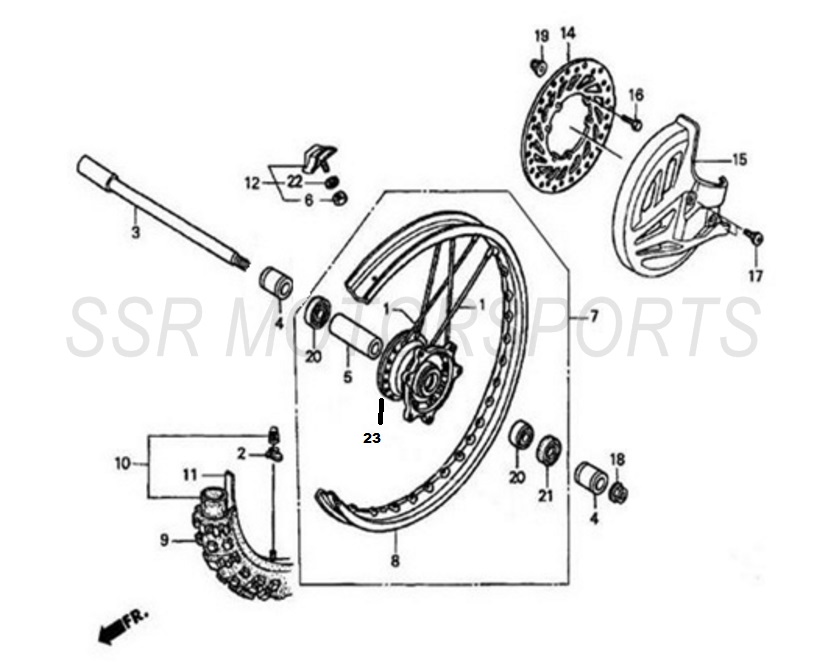

FRONT WHEEL | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00054-18-00 | FRONT SPOKE W/ NIPPLE | 21 | 36 | Pcs. | $3.50 |
2 | A00055-18-00 | VALVE STEM RUBBER HOLDER | 1 | Pc. | $6.00 | |
3 | A00056-18-00 | FRONT WHEEL AXLE | M16X1.5X230 | 1 | Pc. | $33.00 |
4 | A00057-18-00 | FRONT LEFT WHEEL SPACER | 20X27X25.5 | 1 | Pc. | $14.00 |
4-1 | A00126-18-00 | FRONT RIGHT WHEEL SPACER | 20X27X24.5 | 1 | Pc. | $14.00 |
5 | A00058-18-00 | FRONT WHEEL BEARING SPACER | 20X26X71 | 1 | Pc. | $29.00 |
6 | A00002-22-01 | NUT | M8 | 1 | Pc. | $1.50 |
7 | A00059-18-01 | FRONT WHEEL ASSY |
1.60-21 SILVER HUB / BLACK RIM
|
1 | Assy. | $413.00 |
8 | A00060-18-02 | FRONT RIM BLACK | 1.60-21 BLACK | 1 | Pc. | $188.00 |
9 | A00061-18-00 | FRONT TIRE |
80/100-21 KT9662-01 51W
|
1 | Pc. | $121.00 |
10 | A00064-18-00 | INNERTUBE | 3.00-21 | 1 | Pc. | $18.00 |
11 | A00046-18-00 | RIM BAND | 21 | 1 | Pc. | $7.00 |
12 | A00065-18-00 | RIM LOCK ASSY | 1.6 | 1 | Assy. | $24.00 |
14 | A00556-04-00 | FRONT BRAKE ROTOR | 240X3 | 1 | Pc. | $51.00 |
15 | A00054-02-01 | FRONT BRAKE ROTOR COVER | WHITE | 1 | Pc. | $30.00 |
16 | A00006-19-01 | FLANGE BOLT | M6X20 | 6 | Pcs. | $1.50 |
17 | A00042-19-03 | BUTTON HEAD ALLEN BOLT | M6X15 | 2 | Pcs. | $1.50 |
18 | A00007-22-03 | FLANGE NUT | M16 | 1 | Pc. | $4.00 |
19 | A00002-22-34 | FLANGE LOCKNUT | M6 | 6 | Pcs. | $1.50 |
20 | A00038-28-00 | FRONT WHEEL BEARING | 6904-2RS | 2 | Pcs. | $30.00 |
21 | A00011-26-00 | SEAL | TC 26X37X7 | 2 | Pcs. | $3.50 |
22 | A00023-21-01 | WASHER | 8.4X16X1.6 | 1 | Pc. | $1.50 |
23 | A00519-18-00 | FRONT HUB | 1 | Pc. | $272.00 | |

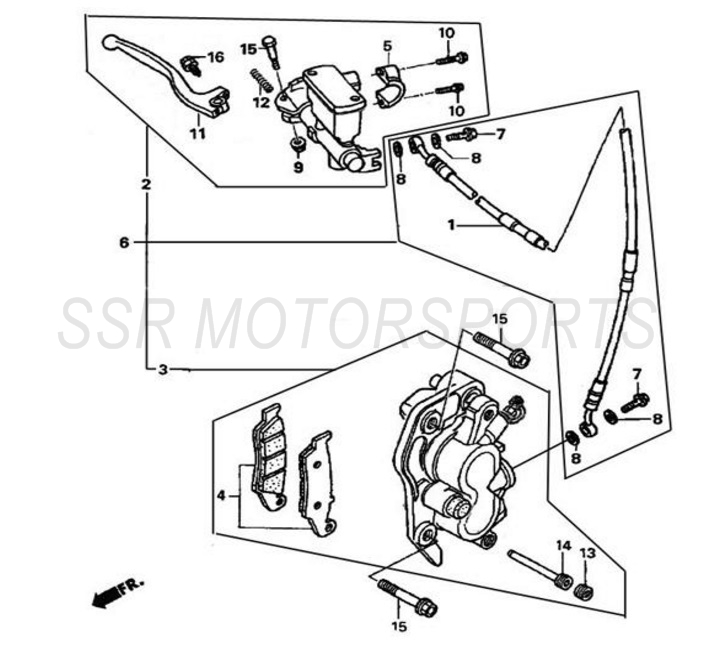

FRONT BRAKE SYSTEM | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00050-04-00 | FRONT BRAKE HOSE | 1 | Pc. | $39.00 | |
2 | A00051-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | NON SPRING TYPE | 1 | Assy. | $59.00 |
2 | A00748-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | BLACK | 1 | Assy. | $59.00 |
3 | A00052-04-00 | FRONT CALIPER ASSY | 1 | Assy. | $77.00 | |
4 | A00053-04-00 | FRONT BRAKE PAD SET | 1 | Set | $42.00 | |
5 | A00054-04-00 | MASTER CYLINDER CLAMP | 1 | Pc. | $11.00 | |
6 | A00055-04-00 | FRONT BRAKE ASSY | 1 | Assy. | $168.00 | |
7 | A00056-04-00 | BANJO BOLT | 2 | Pcs. | $2.00 | |
8 | A00025-04-00 | SEALING WASHER | 4 | Pcs. | $1.50 | |
9 | A00002-22-01 | NUT | M8 | 1 | Pc. | $1.50 |
10 | A00113-19-01 | FLANGE BOLT | 2 | Pcs. | $1.50 | |
11 | A00057-04-00 | FRONT BRAKE LEVER | SPRING TYPE | 1 | Pc. | $18.00 |
11 | A00057-04-0A | FRONT BRAKE LEVER | NON SPRING TYPE | 1 | Pc. | $18.00 |
12 | A00058-04-00 | BRAKE LEVER SPRING | 1 | Pc. | $1.50 | |
13 | A00059-04-00 | BRAKE PIN PLUG | 1 | Pc. | $1.50 | |
14 | A00076-04-01 | FRONT BRAKE PAD PIN | 1 | Pc. | $2.00 | |
15 | A00014-19-01 | FLANGE BOLT | M8X40 | 2 | Pcs. | $2.00 |
16 | A00062-04-00 | LEVER ADJUSTER BOLT | 1 | Pc. | $1.50 | |

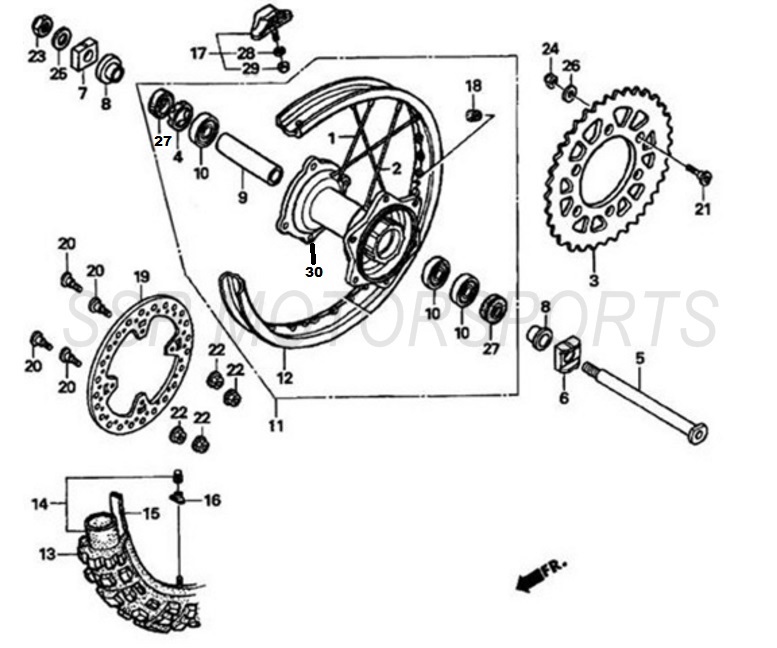

REAR WHEEL | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00070-18-00 | INNER SPOKE W/ NIPPLE | 16 | Pcs. | $3.50 | |
2 | A00071-18-00 | OUTER SPOKE W/ NIPPLE | 16 | Pcs. | $3.50 | |
3 | A00353-07-00 | REAR SPROCKET | 48T | 1 | Pc. | $131.00 |
3 | A00073-18-00 | REAR SPROCKET | 50T | 1 | Pc. | $142.00 |
4 | A00074-18-00 | RETAINER | 1 | Pc. | $4.00 | |
5 | A00075-18-00 | REAR WHEEL AXLE | M22X1.5X272 | 1 | Pc. | $39.00 |
6 | A00076-18-00 | LEFT CHAIN ADJUSTER BLOCK | 1 | Pc. | $10.00 | |
7 | A00077-18-00 | RIGHT CHAIN ADJUSTER BLOCK | 1 | Pc. | $10.00 | |
8 | A00078-18-00 | REAR WHEEL AXLE SPACER | 25X40X23 | 2 | Pcs. | $18.00 |
9 | A00079-18-00 | REAR WHEEL BEARING SPACER | 25X31X100.5 | 1 | Pc. | $30.00 |
10 | A00039-28-00 | BEARING | 61905-RS1 | 3 | Pcs. | $11.00 |
11 | A00081-18-01 | REAR WHEEL ASSY |
2.15-18 BLACK/SILVER HUB
|
1 | Assy. | $464.00 |
12 | A00082-18-02 | REAR RIM BLACK | 2.15-18 BLACK | 1 | Pc. | $209.00 |
13 | A00083-18-00 | REAR TIRE |
100/90-18 CST C-7210-17
|
1 | Pc. | $127.00 |
14 | A00084-18-00 | INNERTUBE | 4.60-18 | 1 | Pc. | $21.00 |
15 | A00033-18-00 | RIM STRIP | 18" | 1 | Pc. | $7.00 |
16 | A00085-18-00 | VALVE STEM RUBBER HOLDER | 1 | Pc. | $6.00 | |
17 | A00086-18-00 | RIM LOCK ASSY | 2.15 | 1 | Assy. | $24.00 |
18 | A00087-18-00 | SPOKE NIPPLE | 32 | Pcs. | $1.50 | |
19 | A00644-04-00 | REAR BRAKE ROTOR | 240X4 | 1 | Pc. | $51.00 |
20 | A00006-19-01 | FLANGE BOLT | M6X20 | 4 | Pcs. | $1.50 |
21 | A00045-19-03 | REAR SPROCKET BOLT | M8X31 | 6 | Pcs. | $1.50 |
22 | A00002-22-34 | FLANGE LOCKNUT | M6 | 4 | Pcs. | $1.50 |
23 | A00012-22-01 | REAR AXLE NUT | M22X1.5 | 1 | Pc. | $6.00 |
24 | A00001-22-04 | LOCK NUT | M8X1.25 | 6 | Pcs. | $1.50 |
25 | A00097-21-01 | WASHER | M22 | 1 | Pc. | $2.00 |
26 | A00004-21-01 | WASHER | M8 | 6 | Pcs. | $1.50 |
27 | A00012-26-00 | SEAL | TC33X43X7 | 2 | Pcs. | $3.50 |
28 | A00004-21-01 | WASHER | M8 | 1 | Pc. | $1.50 |
29 | A00002-22-01 | NUT | M8 | 1 | Pc. | $1.50 |
30 | A00520-18-00 | REAR HUB | 1 | Pc. | $291.00 | |

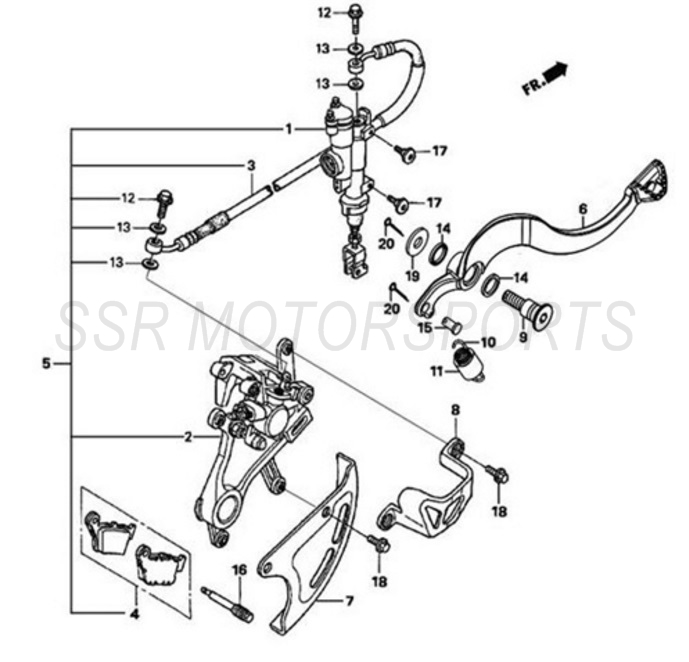

REAR BRAKE SYSTEM | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00063-04-00 | REAR BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $59.00 | |
2 | A00064-04-00 | REAR CALIPER ASSY | 1 | Assy. | $77.00 | |
3 | A00065-04-00 | REAR BRAKE HOSE | 1 | Pc. | $18.00 | |
4 | A00066-04-00 | REAR BRAKE PAD SET | 1 | Set | $51.00 | |
5 | A00067-04-00 | REAR BRAKE ASSY | 1 | Assy. | $150.00 | |
6 | A00068-04-00 | REAR BRAKE PEDAL | 1 | Pc. | $54.00 | |
7 | A00055-02-01 | REAR BRAKE ROTOR GUARD | WHITE | 1 | Pc. | $13.00 |
8 | A00075-04-01 | REAR BRAKE CALIPER COVER | 1 | Pc. | $7.00 | |
9 | A00069-04-00 | REAR BRAKE PEDAL PIVOT BOLT | M10X43 | 1 | Pc. | $2.00 |
10 | A00070-04-00 | REAR BRAKE PEDAL RETURN SPRING | 1 | Pc. | $2.50 | |
11 | A00071-04-00 | RUBBER SLEEVE | 14X18X17 | 1 | Pc. | $1.50 |
12 | A00072-04-00 | BANJO BOLT | 2 | Pcs. | $2.00 | |
12 | A00597-08-00 | REAR BRAKE LIGHT SWITCH | OPTIONAL | 1 | Pc. | $33.00 |
13 | A00025-04-00 | SEALING WASHER | 4 | Pcs. | $1.50 | |
14 | A00020-26-00 | DUST SEAL | 15X20X2.5 | 2 | Pcs. | $3.50 |
15 | A00016-25-00 | REAR BRAKE PIN | 1 | Pc. | $1.50 | |
16 | A00074-04-00 | BRAKE PAD PIN | 1 | Pc. | $1.50 | |
17 | A00042-19-03 | BOLT | M6X15 | 2 | Pcs. | $1.50 |
18 | A00008-19-03 | BOLT | M6X12 | 4 | Pcs. | $1.50 |
20 | A00006-25-01 | COTTER PIN | 2.0X15 | 2 | Pcs. | $1.50 |

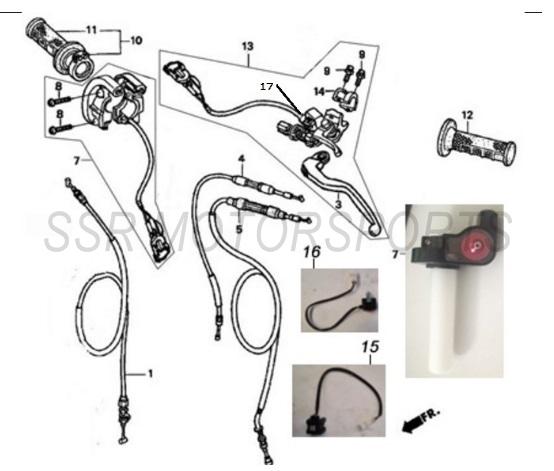

CONTROLS | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00516-05-00 | THROTTLE CABLE | DELLORTO-ITALY | 1 | Pc. | $18.00 |
1A | A00069-05-00 | THROTTLE CABLE | SWR PHB E34 | 1 | Pc. | $18.00 |
3 | A00071-05-00 | CLUTCH LEVER | 1 | Pc. | $18.00 | |
4 | A00072-05-00 | CHOKE CABLE | 1 | Pc. | $24.00 | |
5 | A00073-05-00 | CLUTCH CABLE | 1 | Pc. | $24.00 | |
7 | A00518-05-00 | THROTTLE ASSY W/ TUBE | DELLORTO-ITALY | 1 | Assy. | $29.00 |
7A | A00457-05-00 | THROTTLE ASSY W/ TUBE | SWR PHB E34 | 1 | Assy. | $41.00 |
8 | A00023-20-02 | PAN HEAD SCREW | M5X14 | 2 | Pcs. | $1.50 |
9 | A00024-19-01 | FLANGE BOLT | M6X22 | 2 | Pcs. | $1.50 |
10 | A00519-05-00 | THROTTLE GRIP W/ TUBE ASSY | DELLORTO-ITALY | 1 | Assy. | $13.00 |
10A | A00109-05-00 | THROTTLE GRIP W/ TUBE ASSY | SWR PHB E34 | 1 | Assy. | $13.00 |
11 | A00309-05-00 | RIGHT HANDLE GRIP | GREY | 1 | Pc. | $10.00 |
12 | A00111-05-00 | LEFT HANDLE GRIP | GREY | 1 | Pc. | $10.00 |
13 | A00079-05-00 | CLUTCH PERCH ASSY | 1 | Assy. | $39.00 | |
14 | A00080-05-00 | CLUTCH PERCH CLAMP | 1 | Pc. | $11.00 | |
15 | A00074-08-00 | KILL SWITCH | 1 | Pc. | $48.00 | |
16 | A00073-08-00 | START SWITCH | 1 | Pc. | $48.00 | |
17 | A00539-05-00 | CLUTCH LOCKOUT SWITCH | 1 | Pc. | $11.00 | |

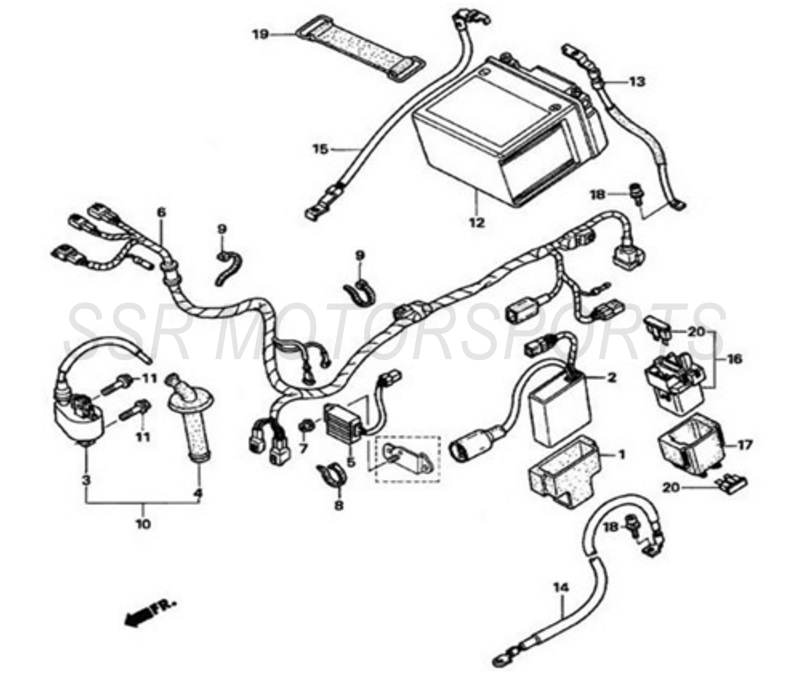

ELECTRICAL | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00054-08-00 | RUBBER CDI HOLDER | 1 | Pc. | $8.00 | |
2 | A00055-08-00 | CDI | 1 | Pc. | $168.00 | |
3 | A00056-08-00 | IGNITION COIL | 1 | Pc. | $39.00 | |
4 | A00057-08-00 | SPARK PLUG CAP | 1 | Pc. | $21.00 | |
5 | A00058-08-00 | REGULATOR / RECTIFIER | 1 | Pc. | $51.00 | |
6 | A00059-08-00 | WIRE HARNESS LX | WITH HEADLIGHT | 1 | Pc. | $69.00 |
7 | A00001-22-01 | NUT | M6 | 1 | Pc. | $1.50 |
8 | A00006-24-01 | ZIP TIE | 3.6X250 | 1 | Pc. | $2.00 |
9 | A00007-24-01 | ZIP TIE | 3.6X150 | 2 | Pcs. | $1.50 |
10 | A00062-08-00 | IGNITION COIL ASSY | 1 | Assy. | $59.00 | |
11 | A00066-19-01 | FLANGE BOLT | M6X18 | 2 | Pcs. | $1.50 |
12 | HJTX7L-FP | LITHIUM BATTERY | HJTX7L-FP | 1 | Pc. | $112.00 |
13 | A00064-08-00 | POSITIVE BATTERY CABLE | 1 | Pc. | $18.00 | |
14 | A00065-08-00 | STARTER MOTOR CABLE | 1 | Pc. | $18.00 | |
15 | A00068-08-00 | NEGATIVE BATTERY CABLE | 1 | Pc. | $18.00 | |
16 | A00069-08-00 | STARTER RELAY ASSY | 1 | Assy. | $41.00 | |
17 | A00070-08-00 | STARTER RELAY RUBBER HOLDER | 1 | Pc. | $8.00 | |
18 | A00043-19-03 | BOLT | M5X9 | 2 | Pcs. | $1.50 |
19 | A00071-08-00 | BATTERY STRAP | 1 | Pc. | $8.00 | |
20 | A00072-08-00 | BLADE FUSE | 15A | 2 | Pcs. | $2.50 |

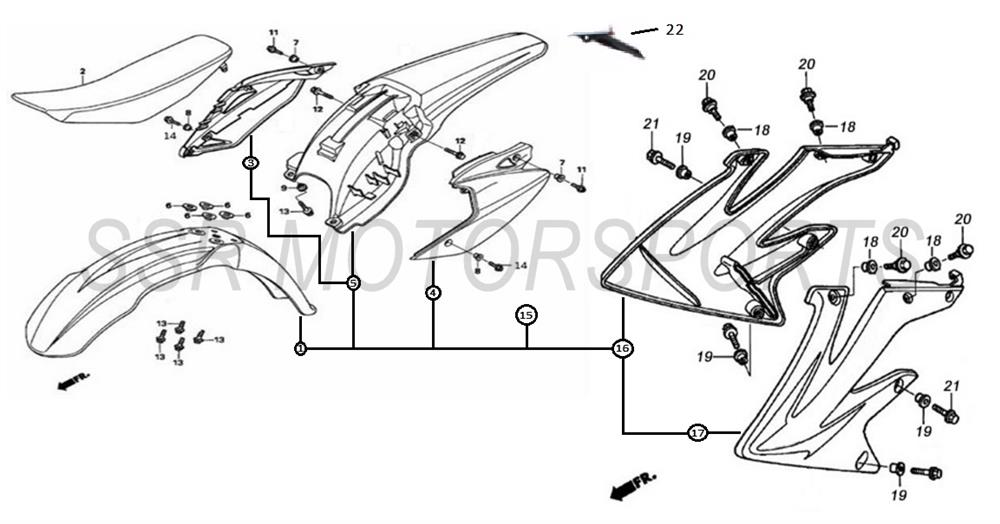

BODY | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00056-02-02 | FRONT FENDER | BLACK | 1 | Pc. | $51.00 |
1 | A00056-02-18 | FRONT FENDER | RED | 1 | Pc. | $51.00 |
1 | A00056-02-12 | FRONT FENDER | BLUE | 1 | Pc. | $51.00 |
1 | A00056-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $51.00 |
2 | A00057-02-02 | SEAT | BLACK | 1 | Pc. | $112.00 |
3 | A00058-02-01 | RIGHT REAR NUMBER PLATE | WHITE | 1 | Pc. | $33.00 |
4 | A00059-02-01 | LEFT REAR NUMBER PLATE | WHITE | 1 | Pc. | $33.00 |
5 | A00060-02-02 | REAR FENDER | BLACK | 1 | Pc. | $51.00 |
5 | A00060-02-18 | REAR FENDER | RED | 1 | Pc. | $51.00 |
5 | A00060-02-12 | REAR FENDER | BLUE | 1 | Pc. | $51.00 |
5 | A00060-02-01 | REAR FENDER | WHITE | 1 | Pc. | $51.00 |
6 | A00061-02-00 | COLLAR | 6.3X25X6 | 4 | Pcs. | $1.50 |
7 | A00063-02-00 | COLLAR | 8.5X18X6 | 2 | Pcs. | $1.50 |
8 | A00713-02-00 | COLLAR | 6.3X14X4.5 | 2 | Pcs. | $1.50 |
9 | A00064-02-00 | COLLAR | 6.3X22X5.8 | 2 | Pcs. | $1.50 |
11 | A00041-19-01 | FLANGE BOLT | M8X30 | 2 | Pcs. | $1.50 |
12 | A00001-19-01 | FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
13 | A00114-19-01 | FLANGE BOLT | 6 | Pcs. | $1.50 | |
14 | A00445-19-08 | CASE FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
15 | A00940-02-02 | COMPLETE PLASTIC KIT | BLACK | 1 | Kit | $188.00 |
15 | A00940-02-18 | COMPLETE PLASTIC KIT | RED | 1 | Kit | $188.00 |
15 | A00940-02-12 | COMPLETE PLASTIC KIT | BLUE | 1 | Kit | $188.00 |
15 | A00940-02-01 | COMPLETE PLASTIC KIT | WHITE | 1 | Kit | $188.00 |
16 | A00045-02-02 | RIGHT RADIATOR SHROUD | BLACK | 1 | Pc. | $30.00 |
16 | A00045-02-18 | RIGHT RADIATOR SHROUD | RED | 1 | Pc. | $30.00 |
16 | A00045-02-12 | RIGHT RADIATOR SHROUD | BLUE | 1 | Pc. | $30.00 |
16 | A00045-02-01 | RIGHT RADIATOR SHROUD | WHITE | 1 | Pc. | $30.00 |
17 | A00046-02-02 | LEFT RADIATOR SHROUD | BLACK | 1 | Pc. | $30.00 |
17 | A00046-02-18 | LEFT RADIATOR SHROUD | RED | 1 | Pc. | $30.00 |
17 | A00046-02-12 | LEFT RADIATOR SHROUD | BLUE | 1 | Pc. | $30.00 |
17 | A00046-02-01 | LEFT RADIATOR SHROUD | WHITE | 1 | Pc. | $30.00 |
18 | A00067-02-00 | COLLAR | 5.5X15X4.5 | 4 | Pcs. | $1.50 |
19 | A00073-02-00 | COLLAR | 6.3X18X5.5 | 4 | Pcs. | $1.50 |
20 | A00068-19-08 | CASE FLANGE BOLT | M5X14 | 4 | Pcs. | $1.50 |
21 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 4 | Pcs. | $1.50 |
22 | A00331-03-00 | LED TAIL LIGHT ASSY | 1 | Pc. | $48.00 | |

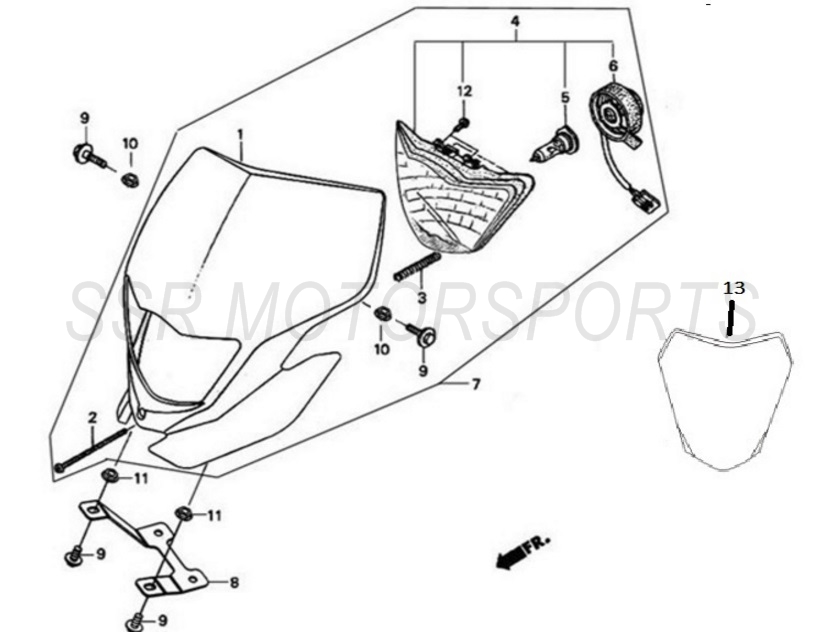

HEADLIGHT / FRONT NUMBER PLATE | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00091-02-01 | HEADLIGHT SHROUD | WHITE | 1 | Pc. | $39.00 |
2 | A00040-20-02 | HEADLIGHT ADJUSTER SCREW | M4X55 | 1 | Pc. | $1.50 |
3 | A00291-03-00 | HEADLIGHT ADJUSTER SPRING | 1 | Pc. | $2.50 | |
4 | A00292-03-00 | HEADLIGHT | 1 | Assy. | $45.00 | |
5 | A00293-03-00 | HEADLIGHT BULB | 1 | Pc. | $11.00 | |
6 | A00294-03-00 | HEADLIGHT BULB SOCKET | 1 | Pc. | $11.00 | |
7 | A00295-03-00 | HEADLIGHT W/ # PLATE ASSY | 1 | Assy. | $89.00 | |
8 | A00296-03-00 | HEADLIGHT BRACKET | 2 | Pcs. | $13.00 | |
9 | A00002-19-01 | FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
10 | A00001-22-01 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
11 | A00001-22-01 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
12 | A00089-19-00 | SCREW | 2 | Pcs. | $1.50 | |
13 | A00857-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $33.00 |

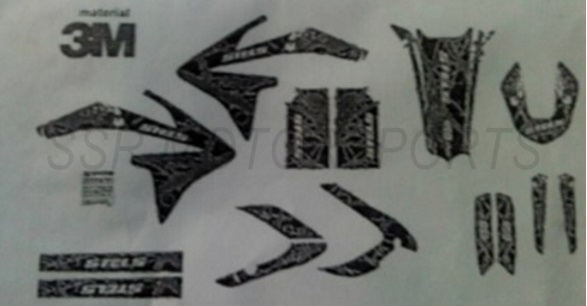

GRAPHICS KIT | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00990-02-00 | GRAPHICS KIT | 1 | Kit | $77.00 | |

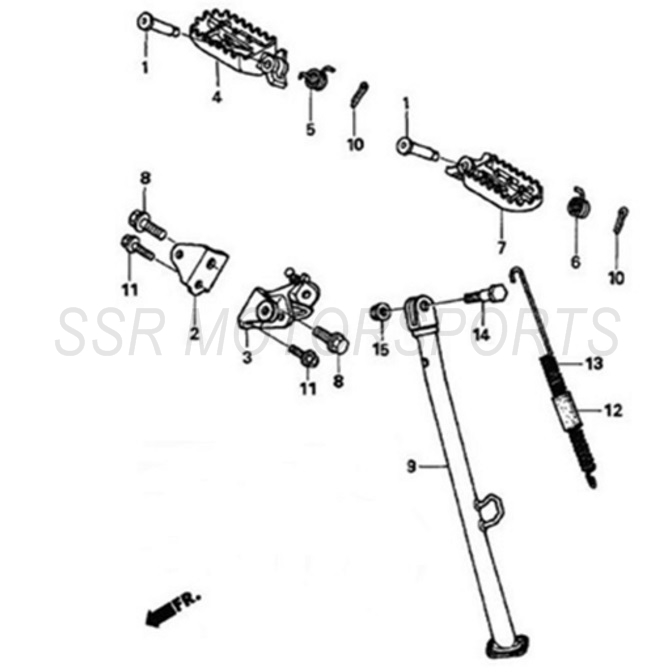

FOOTPEG / STAND | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00081-05-00 | FOOTPEG PIN | 2 | Pcs. | $2.50 | |
2 | A00082-05-00 | RIGHT FOOTPEG MOUNTING BRACKET | 1 | Pc. | $18.00 | |
3 | A00083-05-00 | LEFT FOOTPEG MOUNTING BRACKET | 1 | Pc. | $48.00 | |
4 | A00084-05-00 | RIGHT FOOTPEG | 1 | Pc. | $48.00 | |
4 | A00521-05-00 | RIGHT FOOTPEG | TWO-PIECE | 1 | Pc. | $36.00 |
5 | A00085-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
6 | A00086-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
7 | A00087-05-00 | LEFT FOOTPEG | 1 | Pc. | $48.00 | |
7 | A00522-05-00 | LEFT FOOTPEG | TWO-PIECE | 1 | Pc. | $36.00 |
8 | A00056-19-03 | HEX BOLT | M12X30 | 2 | Pcs. | $2.00 |
9 | A00099-05-00 | SIDE STAND | 1 | Pc. | $83.00 | |
10 | A00006-25-01 | COTTER PIN | 2.0X15 | 2 | Pcs. | $1.50 |
11 | A00041-19-01 | FLANGE BOLT | M8X30 | 2 | Pcs. | $1.50 |
12 | A00100-05-00 | SIDE STAND SPRING RUBBER COVER | 1 | Pc. | $2.50 | |
13 | A00101-05-00 | OUTER SIDE STAND SPRING | 1 | Pc. | $7.00 | |
13A | A00103-05-00 | INNER SIDE STAND SPRING | NOT PICTURED | 1 | Pc. | $4.00 |
14 | A00115-19-07 | SIDE STAND BOLT | M10X35 | 1 | Pc. | $3.50 |
15 | A00004-22-03 | FLANGE NUT | M10 | 1 | Pc. | $1.50 |

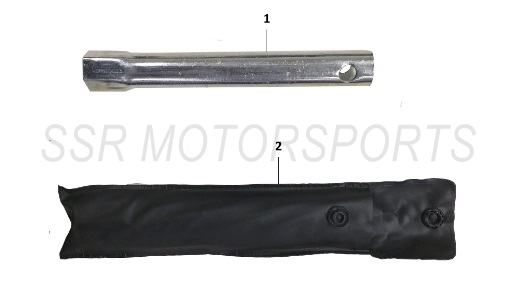

TOOL KIT | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00024-01-00 | SPARK PLUG SOCKET | 1 | Pc. | $14.00 | |
2 | A00026-01-00 | SPARK PLUG SOCKET BAG | 1 | Pc. | $7.00 |
