(SSR SR300) Full Parts Schematics
| 2020-2022 SR300S | ||||||
 |
||||||

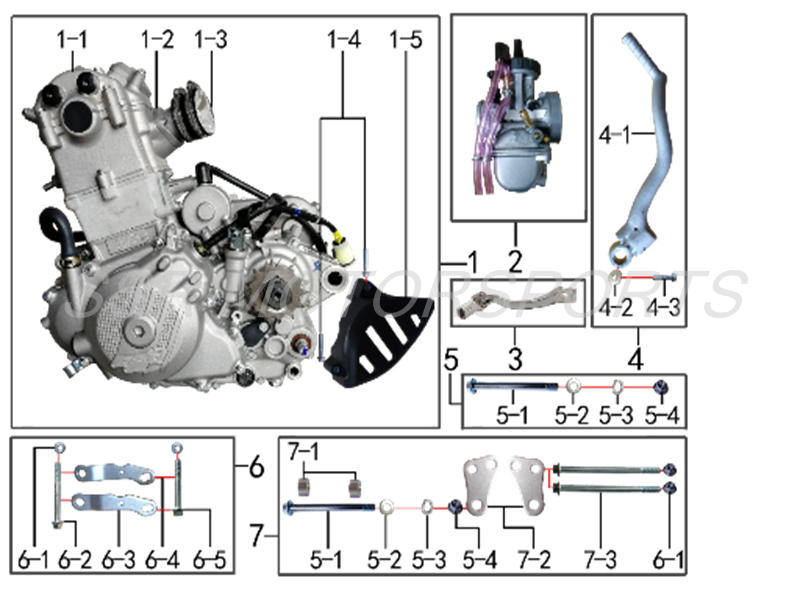

| ENGINE & COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A02949-09-00 | COMPLETE ENGINE | 520-13T | 1 | Assy. | $1,999.00 |
| 1-2 | A00323-14-00 | INTAKE MANIFOLD FLANGE | 1 | Pc. | $13.00 | |
| 1-3 | A00273-09-00 | HOSE CLAMP | 40-55 | 2 | Pcs. | $13.00 |
| 1-3 | A00100-06-00 | HOSE CLAMP | 35-51 | 2 | Pcs. | $13.00 |
| 1-4 | A00423-19-08 | CASE FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 1-5 | A02950-09-00 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | $18.00 | |
| 2 | A00409-12-00 | CARBURETOR | PWK35 | 1 | Assy. | $218.00 |
| 2 | A00415-12-00 | CARBURETOR | GEN. 2 - FCR CARB | 1 | Assy. | $364.00 |
| 3 | A00547-05-00 | GEARSHIFT LEVER | 1 | Pc. | $33.00 | |
| 4-1 | A00548-05-00 | KICKSTARTER LEVER | 1 | Pc. | $89.00 | |
| 4-2 | A00549-05-00 | WASHER | 8X22X3 | 1 | Pc. | $1.50 |
| 4-3 | A00015-19-01 | FLANGE BOLT | M8X20 | 1 | Pc. | $1.50 |
| 5-1 | A00463-19-01 | FLANGE BOLT | M10X127 | 2 | Pcs. | $3.50 |
| 5-2 | A00002-21-01 | WASHER | 10X18X1.5 | 2 | Pcs. | $1.50 |
| 5-3 | A00004-21-02 | LOCK WASHER | M10 | 2 | Pcs. | $1.50 |
| 5-4 | A00004-22-34 | FLANGE LOCKNUT | M10 | 2 | Pcs. | $2.00 |
| 6-1 | A00100-22-34 | FLANGE LOCKNUT | M8 | 4 | Pcs. | $1.50 |
| 6-2 | A00090-19-01 | FLANGE BOLT | M8X70 | 1 | Pc. | $2.00 |
| 6-3 | A00560-11-00 | LEFT ENGINE BRACKET | 1 | Pc. | $8.00 | |
| 6-4 | A00561-11-00 | RIGHT ENGINE BRACKET | 1 | Pc. | $8.00 | |
| 6-5 | A00102-19-01 | FLANGE BOLT | M8X60 | 1 | Pc. | $2.00 |
| 7-1 | A00315-11-00 | SPACER | 10X20X10 | 2 | Pcs. | $2.50 |
| 7-2 | A00562-11-00 | ENGINE BRACKET C | 2 | Pcs. | $8.00 | |
| 7-3 | A00464-19-01 | FLANGE BOLT | M8X122 | 2 | Pcs. | $3.50 |

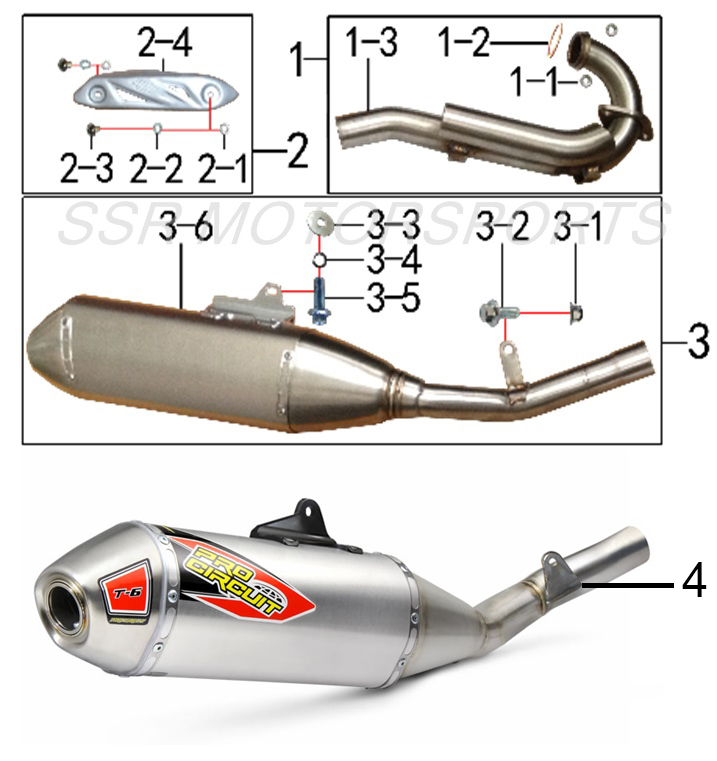

| EXHAUST SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00003-22-03 | FLANGE NUT | M8 | 2 | Pcs. | $1.50 |
| 1-2 | A00295-13-00 | EXHAUST GASKET | 1 | Pc. | $7.00 | |
| 1-3 | A00122-10-00 | EXHAUST HEAD PIPE | 1 | Pc. | $96.00 | |
| 2-1 | A00002-21-02 | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |
| 2-2 | A00104-21-01 | WASHER | 6X12 | 2 | Pcs. | $1.50 |
| 2-3 | A00476-19-09 | BUTTON HEAD ALLEN BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 2-4 | A00123-10-00 | EXHAUST HEAT SHIELD | 1 | Pc. | $21.00 | |
| 3-1 | A00100-22-34 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 3-2 | A00015-19-01 | FLANGE BOLT | M8X20 | 1 | Pc. | $1.50 |
| 3-3 | A00100-21-01 | WASHER | 8X22 | 1 | Pc. | $1.50 |
| 3-4 | A00001-21-02 | LOCK WASHER | M8 | 1 | Pc. | $1.50 |
| 3-5 | A00007-19-01 | FLANGE BOLT | M8X25 | 1 | Pc. | $1.50 |
| 3-6 | A00124-10-00 | MUFFLER | 1 | Pc. | $218.00 | |
| 4 | A00106-01-00 |
PRO CIRCUIT T-6 SLIP-ON MUFFLER W/ SPARK ARRESTOR
|
OPTION | 1 | Pc. | $647.00 |

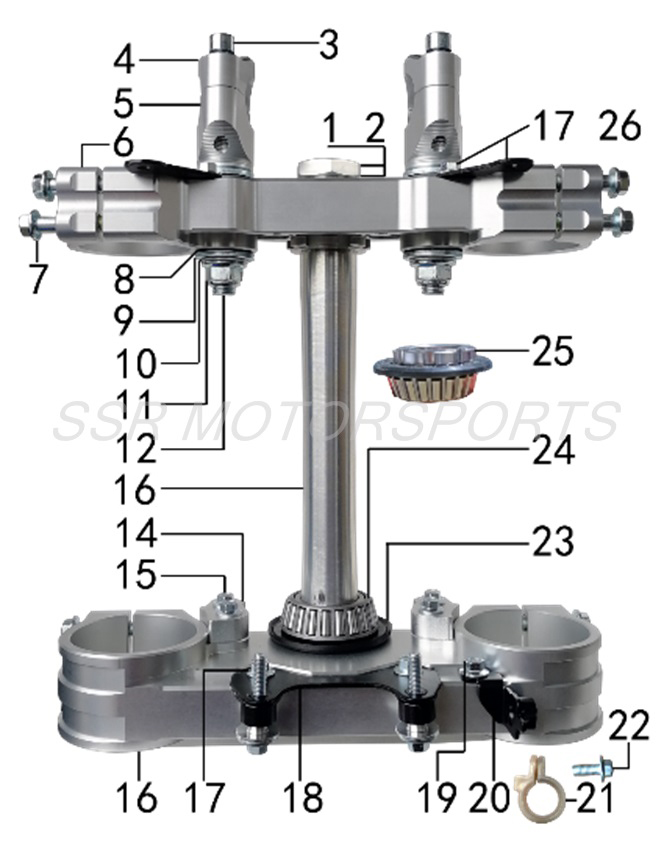

| TRIPLE CLAMPS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00345-22-01 | STEERING STEM NUT | M26 | 1 | Pc. | $7.00 |
| 2 | A00275-21-01 | WASHER | 26X35X1 | 1 | Pc. | $2.50 |
| 3 | A00249-19-02 | ALLEN BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 4 | A00376-15-00 | UPPER HANDLEBAR HOLDER | 2 | Pcs. | $18.00 | |
| 5 | A00377-15-00 | LOWER HANDLEBAR HOLDER | 2 | Pcs. | $21.00 | |
| 6 | A00378-15-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $103.00 | |
| 7 | A00014-19-01 | FLANGE BOLT | M8X40 | 8 | Pcs. | $2.00 |
| 8 | A00232-15-00 | HANDLEBAR VIBRATION DAMPER | 4 | Pcs. | $1.50 | |
| 9 | A00110-21-01 | CONVEX WASHER | 26X30X3 | 4 | Pcs. | $1.50 |
| 10 | A00111-21-01 | WASHER | 12X24X1.5 | 2 | Pcs. | $1.50 |
| 11 | A00001-22-34 | FLANGE LOCKNUT | M12 | 2 | Pcs. | $2.00 |
| 12 | A00127-19-04 | STUD | M12X72 | 2 | Pcs. | $2.50 |
| 14 | A00380-15-00 | STEERING STOPPER BLOCK | 2 | Pcs. | $7.00 | |
| 15 | A00003-19-01 | FLANGE BOLT | M6X25 | 4 | Pcs. | $1.50 |
| 16 | A00381-15-00 | LOWER TRIPLE CLAMP W/ STEM | INCLUDES STEERING STEM | 1 | Assy. | $150.00 |
| 17 | A00445-19-08 | CASE FLANGE BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 18 | A01008-02-00 | LOWER NUMBER PLATE BRACKET | 1 | Pc. | $13.00 | |
| 19 | A00461-19-01 | FLANGE BOLT | M6X8 | 1 | Pc. | $1.50 |
| 20 | A00372-15-00 | BRAKE HOSE GUIDE BRACKET | 1 | Pc. | $7.00 | |
| 21 | A00373-15-00 | BRAKE HOSE GUIDE | 1 | Pc. | $2.50 | |
| 22 | A00002-19-01 | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 23 | A00254-26-00 | DUST SEAL | 2 | Pcs. | $4.00 | |
| 24 | A00171-28-00 | STEERING STEM BEARING | 32006 | 2 | Pcs. | $27.00 |
| 25 | A00346-22-01 | ADJUSTMENT NUT | M30 | 1 | Pc. | $8.00 |
| 26 | A00732-02-00 | UPPER FRONT NUMBER PLATE BRACKET | 2 | Pcs. | $13.00 | |
| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00563-11-00 | WIRE HARNESS RETAINER | 1 | Pc. | $7.00 | |
| 2 | A00461-19-01 | FLANGE BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 3 | A00034-24-01 | ANCHORED ZIP-TIE | 5X168 | 2 | Pcs. | $1.50 |
| 4 | A00564-11-00 | FRAME | *OVERSIZE* | 1 | Pc. | $1,086.00 |
| 5 | A00010-19-09 | PAN HEAD ALLEN BOLT | M6X10 | 1 | Pc. | $1.50 |
| 6 | A00031-22-05 | CABLE RETAINER | 1 | Pc. | $1.50 | |
| 7 | A00002-19-01 | FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 8 | A00565-11-00 | CHAIN SLIDER | 1 | Pc. | $8.00 | |
| 9 | A00098-19-01 | FLANGE BOLT | M10X25 | 2 | Pcs. | $1.50 |
| 10 | A00007-19-01 | FLANGE BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 11 | A00566-11-00 | SUBFRAME | 1 | Pc. | $168.00 | |
| 12 | A00445-19-08 | CASE FLANGE BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 13 | A00567-11-00 | REAR FUEL TANK BRACKET | 1 | Pc. | $4.00 | |
| 14 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 15 | A00569-11-00 | REAR FUEL TANK DAMPER | 1 | Pc. | $8.00 | |
| 16 | A00570-11-00 | SIDE FUEL TANK DAMPER | 4 | Pcs. | $7.00 | |
| 17 | A00104-21-01 | WASHER | 6X12 | 2 | Pcs. | $1.50 |
| 18 | A00002-21-02 | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |
| 19 | A00568-11-00 | SKID PLATE | 1 | Pc. | $69.00 | |
| 20 | A00015-19-01 | FLANGE BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 21 | A00001-21-02 | LOCK WASHER | M8 | 2 | Pcs. | $1.50 |
| 22 | A00013-21-01 | WASHER | 8X16X1.5 | 2 | Pcs. | $1.50 |

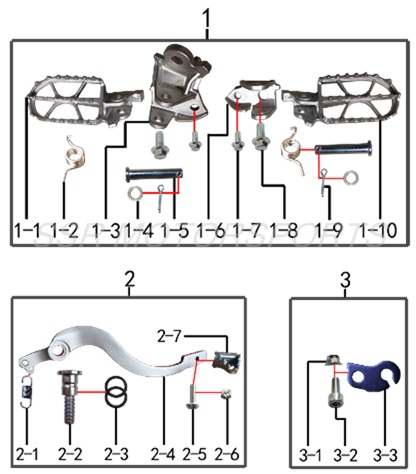

| FOOTPEGS & COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00550-05-00 | LEFT FOOTPEG | 1 | Pc. | $36.00 | |
| 1-2 | A00551-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 1-2 | A00551-05-01 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 1-3 | A00552-05-00 | LEFT FOOTPEG BRACKET | 1 | Pc. | $13.00 | |
| 1-4 | A00273-21-01 | WASHER | 10X16X1 | 2 | Pcs. | $1.50 |
| 1-5 | A00553-05-00 | FOOTPEG PIN | 2 | Pcs. | $1.50 | |
| 1-6 | A00554-05-00 | RIGHT FOOTPEG BRACKET | 1 | Pc. | $11.00 | |
| 1-7 | A00015-19-01 | FLANGE BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 1-8 | A00465-19-01 | FLANGE BOLT | M12X25 | 2 | Pcs. | $2.00 |
| 1-9 | A00008-25-01 | COTTER PIN | 2.5X16 | 3 | Pcs. | $1.50 |
| 1-10 | A00555-05-00 | RIGHT FOOTPEG | 1 | Pc. | $36.00 | |
| 2-1 | A00556-05-00 | REAR BRAKE PEDAL SPRING | 1 | Pc. | $1.50 | |
| 2-2 | A00467-19-07 | BRAKE LEVER PIVOT BOLT | 1 | Pc. | $2.00 | |
| 2-3 | A00153-27-00 | O-RING | 15X20X2.5 | 2 | Pcs. | $1.50 |
| 2-4 | A00557-05-00 | REAR BRAKE PEDAL | 1 | Pc. | $48.00 | |
| 2-5 | A00126-19-19 | BUTTON HEAD ALLEN BOLT | M6X20 | 1 | Pc. | $1.50 |
| 2-6 | A00005-22-04 | LOCK NUT | M6 | 1 | Pc. | $1.50 |
| 2-7 | A00293-05-00 | BRAKE PEDAL TIP | 1 | Pc. | $7.00 | |
| 3-1 | A00100-22-34 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 3-2 | A00251-19-02 | ALLEN BOLT | M8X20 | 1 | Pc. | $1.50 |
| 3-3 | A02951-09-00 | CLUTCH CABLE BRACKET | 1 | Pc. | $4.00 | |

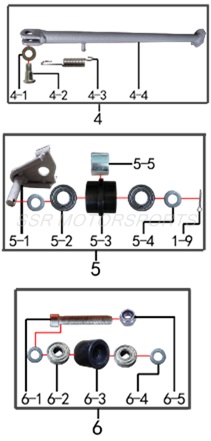

| SIDE STAND & COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 4-1 | A00111-21-01 | WASHER | 12X24X1.5 | 1 | Pc. | $1.50 |
| 4-2 | A00001-19-07 | SIDE STAND PIVOT BOLT | M10X25 | 1 | Pc. | $2.00 |
| 4-3 | A00322-11-00 | SIDE STAND SPRING | 1 | Pc. | $2.50 | |
| 4-4 | A00571-11-00 | SIDE STAND | 1 | Pc. | $42.00 | |
| 5-1 | A00572-11-00 | LOWER CHAIN ROLLER BRACKET | 1 | Pc. | $8.00 | |
| 5-2 | A00096-28-00 | BEARING | 6900 | 2 | Pcs. | $7.00 |
| 5-3 | A00573-11-00 | LOWER CHAIN ROLLER | 1 | Pc. | $8.00 | |
| 5-4 | A00002-21-01 | WASHER | 10X18X1.5 | 2 | Pcs. | $1.50 |
| 5-5 | A00215-16-00 | BEARING SPACER | 18X12.5X13.5 | 1 | Pc. | $2.50 |
| 6-1 | A00413-19-02 | ALLEN BOLT | M8X50 | 1 | Pc. | $2.00 |
| 6-2 | A00097-28-00 | BEARING | 608 | 2 | Pcs. | $7.00 |
| 6-3 | A00321-11-00 | UPPER CHAIN ROLLER | 1 | Pc. | $7.00 | |
| 6-4 | A00013-21-01 | WASHER | 8X16X1.5 | 2 | Pcs. | $1.50 |
| 6-5 | A00100-22-34 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |

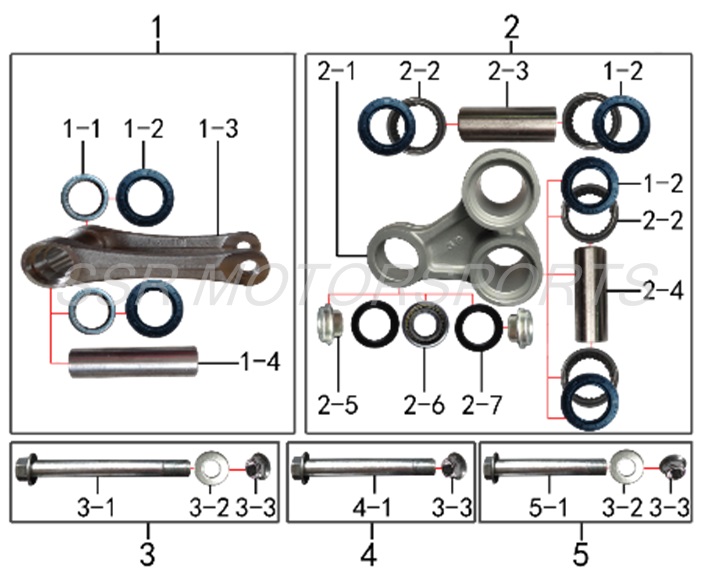

| SUSPENSION LINKAGE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00064-28-00 | NEEDLE BEARING | HK2012 | 2 | Pcs. | $23.00 |
| 1-2 | A00034-26-00 | DUST SEAL | 20X32X5 | 6 | Pcs. | $2.50 |
| 1-3 | A00710-16-00 | ROD LINK SUBASSY | 1 | Pc. | $59.00 | |
| 1-4 | A00709-16-00 | BEARING SPACER SLEEVE | 20X12X82 | 1 | Pc. | $4.00 |
| 2-1 | A00711-16-00 | PIVOT ARM | 1 | Pc. | $66.00 | |
| 2-2 | A00169-28-00 | NEEDLE BEARING | HK2020 | 4 | Pcs. | $8.00 |
| 2-3 | A00712-16-00 | BEARING SPACER SLEEVE | 20X12X55 | 1 | Pc. | $4.00 |
| 2-4 | A00713-16-00 | BEARING SPACER SLEEVE | 20X12X54 | 1 | Pc. | $4.00 |
| 2-5 | A00714-16-00 | COLLAR | 10X9.5X14.5 | 2 | Pcs. | $4.00 |
| 2-6 | A00170-28-00 | NEEDLE BEARING | HK1913 | 1 | Pc. | $14.00 |
| 2-7 | A00255-26-00 | DUST SEAL | 18X26X3 | 2 | Pcs. | $2.50 |
| 3-1 | A00085-19-01 | FLANGE BOLT | M12X140 | 1 | Pc. | $4.00 |
| 3-2 | A00111-21-01 | WASHER | 12X24X1.5 | 2 | Pcs. | $1.50 |
| 3-3 | A00001-22-34 | FLANGE LOCKNUT | M12 | 3 | Pcs. | $2.00 |
| 4-1 | A00466-19-01 | FLANGE BOLT | M12X107 | 1 | Pc. | $3.50 |
| 5-1 | A00019-19-01 | FLANGE BOLT | M12X95 | 1 | Pc. | $6.00 |
| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00574-11-00 | SWINGARM | 1 | Pc. | $367.00 | |
| 2 | A00575-11-00 | BEARING SPACER SLEEVE | 28X17.5X5.5 | 2 | Pcs. | $2.50 |
| 3 | A00256-26-00 | DUST SEAL | 28X37X5 | 2 | Pcs. | $4.00 |
| 4 | A00172-28-00 | BEARING | 22X36X6 | 2 | Pcs. | $8.00 |
| 5 | A00576-11-00 | LEFT SPACER | 22X17X55 | 1 | Pc. | $8.00 |
| 6 | A00173-28-00 | NEEDLE BEARING | HK222930 | 2 | Pcs. | $13.00 |
| 7 | A00010-26-00 | DUST SEAL | 22X29X4 | 2 | Pcs. | $4.00 |
| 8 | A00577-11-00 | RIGHT SPACER | 22X17X49 | 1 | Pc. | $8.00 |
| 9 | A00578-11-00 | COLLAR | 23.5X12X18.5X16X13.5 | 2 | Pcs. | $6.00 |
| 10 | A00002-22-34 | FLANGE LOCKNUT | M6 | 2 | Pcs. | $1.50 |
| 11 | A00035-19-01 | FLANGE BOLT | M6X50 | 2 | Pcs. | $1.50 |
| 12 | A00579-11-00 | LOWER CHAIN GUIDE INSERT | 1 | Pc. | $18.00 | |
| 13 | A00002-19-01 | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 14 | A00580-11-00 | LOWER CHAIN GUIDE BRACKET | 1 | Pc. | $39.00 | |
| 15 | A00581-11-00 | SWINGARM AXLE | 1 | Pc. | $35.00 | |
| 16 | A00276-21-01 | WASHER | 16.5X28X1 | 1 | Pc. | $1.50 |
| 17 | A00007-22-03 | FLANGE LOCKNUT | M16 | 1 | Pc. | $4.00 |
| 18 | A00401-07-00 | CHAIN ADJUSTER PLATE | 2 | Pcs. | $8.00 | |
| 19 | A00468-19-12 | CS BOLT | M5X10 | 4 | Pcs. | $1.50 |
| 20 | A00451-11-00 | LEFT CHAIN ADJUSTER BLOCK | 1 | Pc. | $18.00 | |
| 21 | A00469-19-03 | BOLT | M8X60 | 2 | Pcs. | $2.00 |
| 22 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |
| 23 | A00452-11-00 | RIGHT CHAIN ADJUSTER BLOCK | 1 | Pc. | $18.00 | |
| 24 | A00470-19-12 | CS BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 25 | A00582-11-00 | BRAKE HOSE CLAMP | 2 | Pcs. | $1.50 | |
| 26 | A00456-19-09 | PAN HEAD ALLEN BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 27 | A00583-11-00 | CHAIN SLIDER WASHER | 2 | Pcs. | $1.50 | |
| 28 | A00584-11-00 | CHAIN SLIDER | 1 | Pc. | $39.00 | |
| 29 | A00011-21-01 | WASHER | 6X18X1.5 | 1 | Pc. | $1.50 |
| FRONT & REAR SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00715-16-00 | FRONT RIGHT FORK ASSY | 1 | Assy. | $364.00 | |
| 1-1-2 | A00716-16-00 | FRONT LEFT FORK ASSY | 1 | Assy. | $364.00 | |
| 1-1-1 | A01009-02-00 | FORK GUARD SET | WHITE | 1 | Set | $45.00 |
| 1-2 | A00273-21-01 | WASHER | 10X16X1 | 6 | Pcs. | $1.50 |
| 1-3 | A00008-19-07 | STEPPED ALLEN BOLT | M6X12 | 6 | Pcs. | $1.50 |
| 2-1 | A00004-22-34 | FLANGE LOCKNUT | M10 | 1 | Pc. | $2.00 |
| 2-2 | A00471-19-07 | SPECIAL BOLT | M10X44 | 1 | Pc. | $2.00 |
| 2-3 | A00717-16-00 | REAR SHOCK ABSORBER | 480MM | 1 | Pc. | $319.00 |
| 2-4 | A00004-22-34 | FLANGE LOCKNUT | M10 | 1 | Pc. | $2.00 |
| 2-5 | A00472-19-07 | SPECIAL BOLT | M10X65 | 1 | Pc. | $2.50 |
| 3 | A00720-16-00 | FORK SEAL | 48X57.8X9.5 | 2 | Pcs. | $14.00 |
| 4 | A00719-16-00 | DUST SEAL | 2 | Pcs. | $14.00 | |
| 5 | A00014-19-11 | FLANGE BOLT | M8X40 | 4 | Pcs. | $2.00 |
| 6 | A00721-16-00 | BRAKE LINE HOLDER | 1 | Set | $6.00 | |
| 7 | A00002-19-81 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| HANDLEBARS & BRAKE ASSY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00559-05-00 | CLUTCH LEVER | FOLDING - GEN.1 - IF EQIPD | 1 | Pc. | $48.00 |
| 1-1 | A00546-05-00 | CLUTCH LEVER | 1 | Pc. | $18.00 | |
| 1 | A00558-05-00 | CLUTCH PERCH ASSY | FOLDING - GEN.1 - IF EQIPD | 1 | Assy. | $77.00 |
| 1 | A00543-05-00 | CLUTCH PERCH ASSY | 1 | Assy. | $42.00 | |
| 2 | A00606-08-00 | KILL SWITCH | 1 | Pc. | $30.00 | |
| 3 | A00560-05-00 | HANDLEBAR | 1 | Pc. | $104.00 | |
| 4 | A00280-05-00 | HANDLEBAR GRIP SET | 1 | Set | $13.00 | |
| 5 | A00711-04-00 | REAR BRAKE ASSY | 1 | Assy. | $302.00 | |
| 5-1 | A00712-04-00 | REAR BRAKE MASTER CYLINDER | 1 | Assy. | $131.00 | |
| 5-2 | A00713-04-00 | REAR BRAKE CALIPER | 1 | Assy. | $131.00 | |
| 5-3 | A00714-04-00 | REAR BRAKE HOSE | 600MM | 1 | Pc. | $30.00 |
| 5-4 | A00715-04-00 | REAR BRAKE PAD SET | 1 | Set | $69.00 | |
| 6 | A00126-19-19 | BUTTON HEAD ALLEN BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00561-05-00 | CLUTCH CABLE | 105 12 | 1 | Pc. | $24.00 |
| 8 | A00562-05-00 | THROTTLE CABLE | FOR PWK CARB - 1000 130 | 1 | Pc. | $39.00 |
| 8 | A00584-05-00 | THROTTLE CABLE |
GEN 2. FOR FCR CARB - 1000 128
|
1 | Pc. | $39.00 |
| 9 | A00563-05-00 | FRONT BRAKE LEVER | 1 | Pc. | $48.00 | |
| 10 | A00014-19-01 | FLANGE BOLT | M8X40 | 2 | Pcs. | $2.00 |
| 11 | A00716-04-00 | FRONT BRAKE ASSY | 1 | Assy. | $308.00 | |
| 11-1 | A00717-04-00 | FRONT BRAKE MASTER CYLINDER | 1 | Assy. | $142.00 | |
| 11-2 | A00718-04-00 | FRONT BRAKE HOSE | 1 | Pc. | $30.00 | |
| 11-3 | A00719-04-00 | FRONT BRAKE CALIPER | 1 | Assy. | $131.00 | |
| 11-4 | A00720-04-00 | FRONT BRAKE PAD SET | 1 | Set | $69.00 | |
| 12 | A00564-05-00 | THROTTLE ASSY W/ TUBE | 1 | Assy. | $36.00 | |
| 13 | A00607-08-00 | START SWITCH | 1 | Pc. | $30.00 | |
| 14 | A00009-24-01 | ZIP-TIE | 75MM | 4 | Pcs. | $1.50 |
| 15 | A00565-05-01 | HANDLEBAR PAD | 1 | Pc. | $23.00 | |
| 16 | A01026-02-02 | HANDLEBAR PAD COVER | W/ FUEL HOSE NOTCH | 1 | Pc. | $14.00 |
| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00579-18-00 | FRONT WHEEL ASSY | 1.60-21 BLACK | 1 | Assy. | $254.00 |
| 1-1 | A00580-18-00 | FRONT RIM | 1.60-21 BLACK | 1 | Pc. | $124.00 |
| 1-2 | A00581-18-00 | FRONT SPOKE W/ NIPPLE | 36 | Pcs. | $2.50 | |
| 1-3 | A00582-18-00 | FRONT WHEEL HUB | 1 | Pc. | $142.00 | |
| 1-4 | A00174-28-00 | BEARING | 6904 | 2 | Pcs. | $11.00 |
| 1-5 | A00011-26-00 | DUST SEAL | 26X37X7 | 2 | Pcs. | $3.50 |
| 1-6 | A00602-18-00 | BEARING SPACER SLEEVE | 1 | Pc. | $11.00 | |
| 2-1 | A00583-18-00 | FRONT TIRE | 80/100-21 | 1 | Pc. | $120.00 |
| 2-2 | A00584-18-00 | FRONT TUBE | 80/100-21 | 1 | Pc. | $18.00 |
| 3-1 | A00721-04-00 | FRONT BRAKE ROTOR | 240X101 | 1 | Pc. | $51.00 |
| 3-2 | A00473-19-19 | BUTTON HEAD ALLEN BOLT | M6X14 | 6 | Pcs. | $1.50 |
| 4-1 | A00260-18-00 | FRONT WHEEL AXLE | M20X216 | 1 | Pc. | $33.00 |
| 4-2 | A00585-18-00 | RIGHT FRONT WHEEL SPACER | 30X20.2X24X26 | 1 | Pc. | $7.00 |
| 4-3 | A00586-18-00 | LEFT FRONT WHEEL SPACER | 30X20.2X25X26 | 1 | Pc. | $7.00 |
| 4-4 | A00597-18-00 | FRONT AXLE BOLT | 1 | Pc. | $4.00 | |
| 5 | A00046-18-00 | RIM STRIP | 21" | 1 | Pc. | $7.00 |
| 6 | A00231-18-00 | RIM LOCK | 1.6 | 1 | Pc. | $13.00 |
| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00587-18-00 | REAR WHEEL ASSY | 2.15-19 BLACK | 1 | Assy. | $283.00 |
| 1-1 | A00588-18-00 | REAR RIM | 2.15-19 BLACK | 1 | Pc. | $142.00 |
| 1-2 | A00589-18-00 | REAR SPOKE W/ NIPPLE | 32 | Pcs. | $2.50 | |
| 1-3 | A00590-18-00 | REAR WHEEL HUB | 1 | Pc. | $188.00 | |
| 1-4 | A00039-28-00 | BEARING | 6905-RS1 | 2 | Pcs. | $11.00 |
| 1-5 | A00257-26-00 | DUST SEAL | 33X43X7 | 2 | Pcs. | $3.50 |
| 1-6 | A00603-18-00 | BEARING SPACER SLEEVE | 1 | Pc. | $11.00 | |
| 2-1 | A00591-18-00 | REAR TIRE | 100/90-19 | 1 | Pc. | $143.00 |
| 2-2 | A00592-18-00 | REAR TUBE | 100/90-19 | 1 | Pc. | $24.00 |
| 3-1 | A00722-04-00 | REAR BRAKE ROTOR | 240X121 | 1 | Pc. | $51.00 |
| 3-2 | A00002-22-34 | FLANGE LOCKNUT | M6 | 4 | Pcs. | $1.50 |
| 3-3 | A00126-19-19 | BUTTON HEAD ALLEN BOLT | M6X20 | 4 | Pcs. | $1.50 |
| 4 | A00593-18-00 | REAR SPROCKET CARRIER | 1 | Pc. | $51.00 | |
| 5-1 | A00402-07-00 | REAR SPROCKET | 520-48T | 1 | Pc. | $77.00 |
| 5-2 | A00100-22-34 | FLANGE LOCKNUT | M8 | 6 | Pcs. | $1.50 |
| 5-3 | A00474-19-12 | CS ALLEN BOLT | M8X38 | 6 | Pcs. | $1.50 |
| 6 | A00266-18-00 | RIM STRIP | 19" | 1 | Pc. | $8.00 |
| 7 | A00100-18-00 | RIM LOCK | 2.15 | 1 | Pc. | $24.00 |
| 8 | A00403-07-00 | DRIVE CHAIN | 520-114L | 1 | Pc. | $77.00 |
| 9-1 | A00594-18-00 | REAR WHEEL AXLE | 1 | Pc. | $39.00 | |
| 9-2 | A00595-18-00 | LEFT REAR WHEEL SPACER | 40X25.2X33X30 | 1 | Pc. | $7.00 |
| 9-3 | A00596-18-00 | RIGHT REAR WHEEL SPACER | 40X25.2X21X30 | 1 | Pc. | $7.00 |
| 9-4 | A00604-18-00 | REAR AXLE NUT | M40 | 1 | Pc. | $11.00 |
| AIRBOX & BATTERY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00324-14-00 | HOSE CLAMP | 44-64 | 1 | Pc. | $4.00 |
| 1 | A00004-24-02 | HOSE CLAMP | 38-57 | 1 | Pc. | $6.00 |
| 2 | A00325-14-00 | AIRBOX BOOT | FOR PWK CARB | 1 | Pc. | $45.00 |
| 2 | A00340-14-00 | AIRBOX BOOT | GEN 2. - FOR FCR CARB | 1 | Pc. | $45.00 |
| 3 | A00326-14-00 | HOSE CLAMP | 160-180 | 1 | Pc. | $8.00 |
| 3 | A00355-14-00 | HOSE CLAMP | 180-304 | 1 | Pc. | $8.00 |
| 4 | A00327-14-00 | AIRBOX FRONT COVER | 1 | Pc. | $18.00 | |
| 5 | A00328-14-00 | AIRBOX SCREEN | FITS BOTH CARB VERSIONS | 1 | Pc. | $18.00 |
| 6 | A00329-14-00 | AIR FILTER ELEMENT | 1 | Pc. | $39.00 | |
| 7 | A00330-14-00 | AIRBOX HOUSING | 1 | Pc. | $36.00 | |
| 8 | A00585-11-00 | BATTERY TRAY | 1 | Pc. | $36.00 | |
| 9 | A00608-08-00 | RUBBER STRAP | 85MM | 1 | Pc. | $6.00 |
| 10 | A00586-11-00 | BATTERY TRAY RETAINER | 1 | Pc. | $1.50 | |
| 11 | A00587-11-00 | FOAM SEAL | 4 - 0.65 | 1 | Pc. | $3.50 |
| 12 | HJTX7L-FP | LITHIUM BATTERY | 1 | Pc. | $112.00 | |
| 13 | A00413-08-00 | BATTERY STRAP | 105MM | 1 | Pc. | $14.00 |
| 14 | A00454-19-W3 | WING BOLT | M6X40 | 1 | Pc. | $2.00 |
| 15 | A00011-21-01 | WASHER | 6X18X1.5 | 1 | Pc. | $1.50 |
| 16 | A00010-20-03 | ST SCREW | 4.2X16 | 6 | Pcs. | $1.50 |
| 17 | A00304-14-00 | WIRE HOSE CLAMP | 13.5 | 2 | Pcs. | $1.50 |
| 18 | A00305-14-00 | AIRBOX DRAIN HOSE | 12 - 0.03 | 1 | Pc. | $1.50 |
| 19 | A00306-14-00 | DRAIN HOSE PLUG | 12.5 | 1 | Pc. | $1.50 |

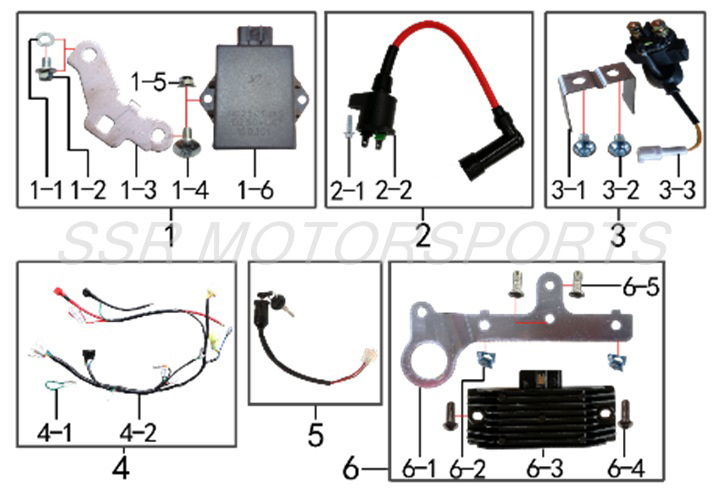

| ELECTRICAL COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00002-21-02 | LOCK WASHER | M6 | 1 | Pc. | $1.50 |
| 1-2 | A00461-19-01 | FLANGE BOLT | M6X8 | 1 | Pc. | $1.50 |
| 1-3 | A00609-08-00 | CDI MOUNTING BRACKET | 1 | Pc. | $6.00 | |
| 1-4 | A00258-19-02 | PAN HEAD ALLEN BOLT | M6X16 | 1 | Pc. | $1.50 |
| 1-5 | A00002-22-34 | FLANGE LOCKNUT | M6 | 1 | Pc. | $1.50 |
| 1-6 | A00610-08-00 | CDI | 1 | Pc. | $96.00 | |
| 2-1 | A00006-19-01 | FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 2-2 | A00618-08-00 | IGNITION COIL W/ CAP | 1 | Assy. | $33.00 | |
| 3-1 | A00611-08-00 | STARTER RELAY BRACKET | 1 | Pc. | $7.00 | |
| 3-2 | A00010-19-09 | PAN HEAD ALLEN BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 3-3 | A00612-08-00 | STARTER RELAY | 1 | Pc. | $18.00 | |
| 4-1 | A00613-08-00 | WIRE HARNESS JUMPER | 1 | Pc. | $7.00 | |
| 4-2 | A00614-08-00 | MAIN WIRE HARNESS | 1 | Pc. | $77.00 | |
| 5 | A00615-08-00 | IGNITION SWITCH | 1 | Pc. | $51.00 | |
| 6-1 | A00616-08-00 | IGNITION SWITCH+REG/REC BRACKET | 1 | Pc. | $10.00 | |
| 6-2 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 6-3 | A00617-08-00 | REGULATOR / RECTIFIER | 1 | Pc. | $45.00 | |
| 6-4 | A00123-19-02 | BUTTON HEAD ALLEN BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 6-5 | A00476-19-12 | CS BOLT | M6X10 | 2 | Pcs. | $1.50 |
| BODY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00588-11-00 | COLLAR | 19X8.5X6X5.5 | 4 | Pcs. | $4.00 |
| 2 | A00011-21-01 | WASHER | 6X18X1.5 | 6 | Pcs. | $1.50 |
| 3 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 4 | A00012-19-01 | FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 5 | A01010-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $59.00 |
| 6 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 7 | A00589-11-00 | COLLAR | 20X7X8X11X3 | 2 | Pcs. | $1.50 |
| 8 | A00475-19-09 | PAN HEAD ALLEN BOLT | M6X25 | 4 | Pcs. | $1.50 |
| 9 | A01011-02-01 | LEFT RADIATOR SHROUD | WHITE | 1 | Pc. | $36.00 |
| 10 | A01012-02-02 | LOWER LEFT RADIATOR SHROUD | BLACK | 1 | Pc. | $13.00 |
| 11 | A00024-20-03 | SCREW | 3.0-10 | 14 | Pcs. | $1.50 |
| 12 | A01013-02-01 | LEFT REAR SIDE COVER | WHITE | 1 | Pc. | $35.00 |
| 13 | A00460-19-09 | PAN HEAD ALLEN BOLT | M6X9 | 8 | Pcs. | $1.50 |
| 14 | A00273-21-01 | WASHER | 10X16X1 | 8 | Pcs. | $1.50 |
| 15 | A01014-02-01 | LEFT REAR NUMBER PLATE | WHITE | 1 | Pc. | $36.00 |
| 16 | A00009-20-03 | ST SCREW | 4.8X16 | 2 | Pcs. | $1.50 |
| 17 | A00723-02-02 | MUD FLAP | 1 | Pc. | $21.00 | |
| 18 | A00002-22-34 | FLANGE LOCKNUT | M6 | 2 | Pcs. | $1.50 |
| 19 | A00007-19-11 | FLANGE BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 20 | A00108-21-01 | COLLAR | 8X18X12 | 2 | Pcs. | $1.50 |
| 21 | A01015-02-01 | REAR FENDER | WHITE | 1 | Pc. | $51.00 |
| 22 | A01020-02-00 | MUFFLER STANDOFF RUBBER INSULATOR | 2 | Pcs. | $2.50 | |
| 23 | A01016-02-01 | RIGHT REAR NUMBER PLATE | WHITE | 1 | Pc. | $36.00 |
| 24 | A01017-02-01 | RIGHT REAR SIDE COVER | WHITE | 1 | Pc. | $35.00 |
| 25 | A01018-02-02 | LOWER RIGHT RADIATOR SHROUD | BLACK | 1 | Pc. | $13.00 |
| 26 | A01019-02-01 | RIGHT RADIATOR SHROUD | WHITE | 1 | Pc. | $36.00 |
| FUEL TANK & SEAT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 2 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 3 | A01021-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $23.00 |
| 4 | A01022-02-00 | SEAT | 1 | Pc. | $101.00 | |
| 5 | A00010-19-X9 | PAN HEAD ALLEN BOLT | M6X10 | 5 | Pcs. | $1.50 |
| 6 | A01023-02-01 | REAR ROTOR GUARD | 1 | Pc. | $11.00 | |
| 7 | A01024-02-01 | REAR BRAKE CALIPER GUARD | 1 | Pc. | $11.00 | |
| 8 | A00273-21-01 | WASHER | 10X16X1 | 4 | Pcs. | $1.50 |
| 9 | A00460-19-09 | PAN HEAD ALLEN BOLT | M6X9 | 2 | Pcs. | $1.50 |
| 10 | A01025-02-01 | FRONT BRAKE ROTOR GUARD | 1 | Pc. | $21.00 | |
| 11 | A00258-12-00 | FUEL TANK CAP | 1 | Pc. | $13.00 | |
| 12 | A00003-19-01 | FLANGE BOLT | M6X25 | 1 | Pc. | $1.50 |
| 13 | A00413-12-00 | COLLAR | 22X6.2X17X9X15 | 1 | Pc. | $1.50 |
| 14 | A00412-12-00 | FRONT FUEL TANK BRACKET | 1 | Pc. | $3.50 | |
| 15 | A00590-11-00 | RUBBER GROMMET | 1 | Pc. | $2.50 | |
| 16 | A00588-11-00 | COLLAR | 19X8.5X6X5.5 | 2 | Pcs. | $4.00 |
| 17 | A00456-19-09 | PAN HEAD ALLEN BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 18 | A00410-12-00 | FUEL TANK | 1 | Pc. | $89.00 | |
| 18-1 | A00411-12-00 | FUEL PETCOCK | 1 | Pc. | $23.00 | |
| 19 | A00260-12-00 | FUEL FILTER | FOR PWK CARB | 1 | Pc. | $11.00 |
| 19 | A00427-12-00 | FUEL FILTER | GEN 2. - FOR FCR CARB | 1 | Pc. | $11.00 |
| 20 | A00591-11-00 | COLLAR | 22X9.5X6X9 | 1 | Pc. | $2.50 |
| 21 | A00258-19-02 | PAN HEAD ALLEN BOLT | M6X16 | 1 | Pc. | $1.50 |
| 22 | A00479-19-02 | ALLEN BOLT | M6X12 | 2 | Pcs. | $1.50 |
| RADIATOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00086-06-01 | RIGHT RADIATOR GRILL | WHITE | 1 | Pc. | $13.00 |
| 2 | A00087-06-01 | LEFT RADIATOR GRILL | WHITE | 1 | Pc. | $13.00 |
| 3 | A00088-06-00 | LEFT RADIATOR | 1 | Pc. | $104.00 | |
| 4 | A00089-06-00 | RIGHT RADIATOR | INCLUDES OVERFLOW TANK | 1 | Pc. | $124.00 |
| 5 | A00011-21-01 | WASHER | 6X18X1.5 | 4 | Pcs. | $1.50 |
| 6 | A00003-19-01 | FLANGE BOLT | M6X25 | 4 | Pcs. | $1.50 |
| 7 | A00118-24-02 | HOSE CLAMP | 16-25 | 5 | Pcs. | $2.50 |
| 8 | A00090-06-00 | RADIATOR HOSE A | 1 | Pc. | $21.00 | |
| 9 | A00091-06-00 | RADIATOR HOSE B | 1 | Pc. | $29.00 | |
| 10 | A00119-24-02 | HOSE CLAMP | 18-32 | 1 | Pc. | $2.50 |
| 11 | A00092-06-00 | RADIATOR HOSE C | 1 | Pc. | $21.00 | |
| 12 | A00002-19-01 | FLANGE BOLT | M6X16 | 8 | Pcs. | $1.50 |
| 13 | A00093-06-00 | RADIATOR BRACE / COOLANT RES. BRACKET | 2 | Pcs. | $16.00 | |
| 14 | A00001-22-05 | CLIP NUT | M6 | 4 | Pcs. | $1.50 |
| 15 | A00094-06-00 | RADIATOR BRACE MOUNTING BRACKET | 2 | Pcs. | $6.00 | |
| 16 | A00035-19-01 | FLANGE BOLT | M6X50 | 2 | Pcs. | $1.50 |
| 17 | A00095-06-00 | RADIATOR BRACE MOUNTING CLAMP | 2 | Pcs. | $11.00 | |
| 18 | A00002-22-34 | FLANGE LOCKNUT | M6 | 2 | Pcs. | $1.50 |
| 19 | A00096-06-00 | TEMP. SENSOR SWITCH | 1 | Pc. | $39.00 | |
| 20 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 21 | A00002-21-02 | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |
| 22 | A00097-06-00 | RADIATOR FAN | 1 | Pc. | $66.00 | |
| 23 | 279185050000 | RADIATOR CAP | 1.1 | 1 | Pc. | $18.00 |
| GRAPHICS KIT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01026-02-02 | HANDLEBAR PAD COVER | W/ FUEL HOSE NOTCH | 1 | Pc. | $14.00 |
| 2 | A01027-02-00 | GRAPHICS KIT | 1 | Kit | $89.00 | |
