Product Description
Ref. No. | Part # | Description |
1 | 112842 | Left Headlight Assembly |
2 | 112843 | Right Headlight Assembly |
3 | 107921 | Cross Self Tapping Screw; ST3.8*12 |
4 | 100699 | Ignition Key Switch For 110cc Utility ATVs; 4 Wire Male Plug |
5 | 602450 | Wire Harness |
6 | 601785 | Gear Indicator |
7 | 106930 | Flat Washer; φ4*10*1 |
8 | 100394 | Remote Control / Alarm |
9 | 105272 | Locknut; M6 |
10 | 105140 | Hex Flange Bolt; M6x16 |
11 | 100730 | Regulator |
12 | 115204 | CDI |
13 | 101384 | Starter Relay/Solenoid for All ATVs |
14 | 105272 | Locknut; M6 |
15 | 112844 | Tail Lights Assembly |
16 | 100907 | Reflector; Rectangle; Red for E1-350 and more |

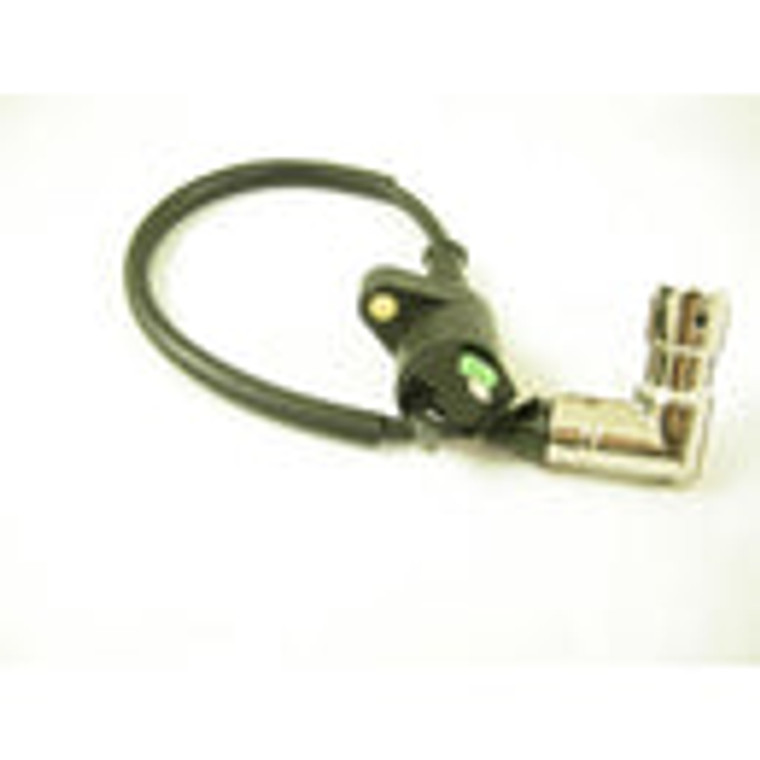

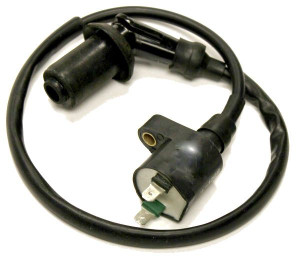

17 | 101008 | Ignition Coil |
18 | 105272 | Locknut; M6 |
19 | 105140 | Hex Flange Bolt; M6x16 |
20 | 103277 | 12V Battery; 12V5AH Acid Battery |
