Cylinder Head & Cylinder Assy.
All 2015 SSR SR170TX schematics

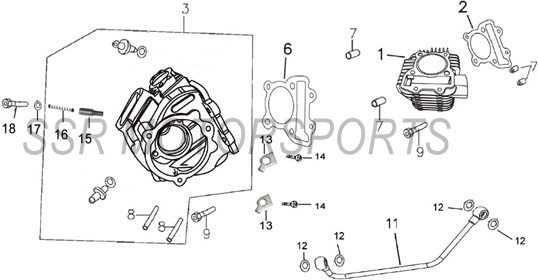

2015 SSR SR170TX - Cylinder Head & Cylinder Assy. Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01475-09-00 | CYLINDER+ ADD | $143.50 | 1 |
| 2 | A00185-13-00 | CYLINDER BASE GASKET+ ADD | $12.30 | 1 |
| 3 | A02551-09-00 | CYLINDER HEAD ASSY W/ VALVES+ ADD | $336.00 | 1 |
| 6 | A00186-13-00 | CYLINDER HEAD GASKET+ ADD | $12.30 | 1 |
| 7 | A00002-23-00 | DOWEL PIN M10X14+ ADD | $2.00 | 4 |
| 8 | A00384-19-04 | STUD+ ADD | $2.00 | 2 |
| 9 | A01769-09-00 | OIL PIPE BOLT M8x25+ ADD | $2.00 | 2 |
| 11 | A02724-09-00 | OIL PIPE+ ADD | $15.80 | 1 |
| 12 | A00238-21-04 | CRUSH WASHER+ ADD | $2.00 | 4 |
| 13 | A02725-09-00 | RETAINER PLATE+ ADD | $2.60 | 2 |
| 14 | A00385-19-03 | BOLT+ ADD | $2.00 | 2 |
| 15 | A02726-09-00 | COMPRESSION RELEASE PIN+ ADD | $2.60 | 1 |
| 16 | A02727-09-00 | COMPRESSION RELEASE SPRING+ ADD | $2.60 | 1 |
| 17 | A00239-21-01 | WASHER+ ADD | $2.00 | 1 |
| 18 | A00386-19-03 | BOLT+ ADD | $2.00 | 1 |
