Front Suspension
All 2015 SSR SR170TX schematics

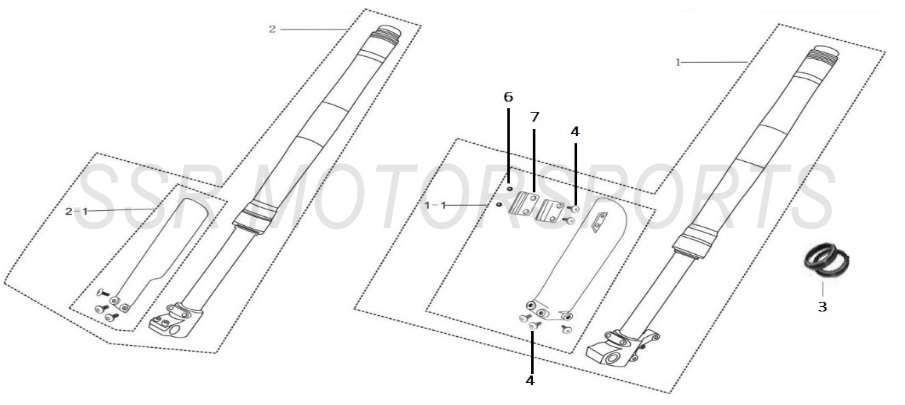

2015 SSR SR170TX - Front Suspension Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00489-16-00 | LEFT FRONT FORK ASSY 735MM+ ADD | $319.00 | 1 |
| 1-1 | A00744-02-02 | LEFT FRONT FORK PROTECTOR BLACK+ ADD | $21.00 | 1 |
| 2 | A00490-16-00 | RIGHT FRONT FORK ASSY 735+ ADD | $319.00 | 1 |
| 2-1 | A00745-02-02 | RIGHT FRONT FORK PROTECTOR BLACK+ ADD | $21.00 | 1 |
| 3 | A00491-16-00 | FORK/DUST SEAL SET 33X46X11 + 33X46/51+ ADD | $15.80 | 2 |
| 4 | A00106-19-01 | BUTTON HEAD ALLEN BOLT M6X16 - BLACK+ ADD | $2.00 | 8 |
| 6 | A00005-22-04 | FLANGE LOCKNUT M6+ ADD | $2.00 | 2 |
| 7 | A00800-02-00 | BRAKE LINE HOLDER SET+ ADD | $2.60 | 1 |
| 8 | A00008-19-02 | ALLEN BOLT M6X20+ ADD | $2.00 | 2 |
