Oil Cooler System
All 2015 SSR SR170TX schematics

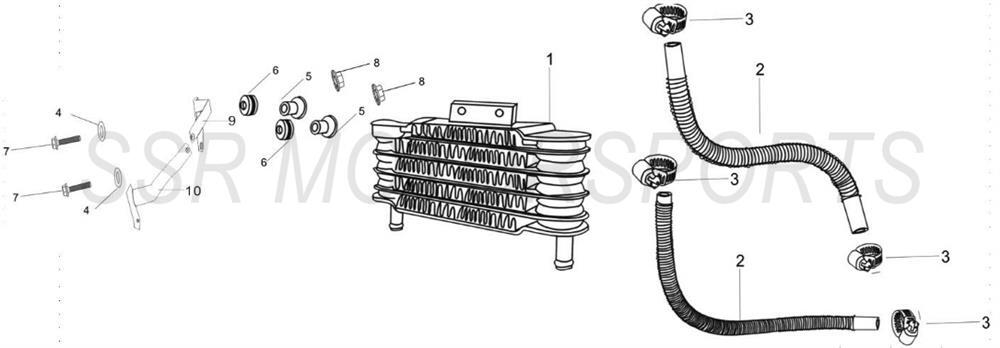

2015 SSR SR170TX - Oil Cooler System Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00079-06-00 | OIL COOLER+ ADD | $110.30 | 1 |
| 2 | A00080-06-00 | OIL COOLER HOSE 8X14XL650+ ADD | $19.30 | 2 |
| 3 | A00039-24-03 | HOSE CLAMP+ ADD | $2.50 | 4 |
| 4 | A00014-21-01 | WASHER M10X20X2+ ADD | $2.00 | 2 |
| 5 | A00081-06-00 | COLLAR+ ADD | $2.00 | 2 |
| 6 | A00082-06-00 | RUBBER GROMMET+ ADD | $2.00 | 2 |
| 7 | A00003-19-01 | FLANGE BOLT M6X25+ ADD | $2.00 | 2 |
| 8 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 2 |
| 9 | A00083-06-00 | RIGHT TANK SHROUD BRACKET+ ADD | $12.30 | 1 |
| 10 | A00084-06-00 | LEFT TANK SHROUD BRACKET+ ADD | $12.30 | 1 |
| 11 | A00108-06-00 | BRASS OIL HOSE FITTING+ ADD | $4.40 | 2 |
