Oil Pump Assy.
All 2015 SSR SR170TX schematics

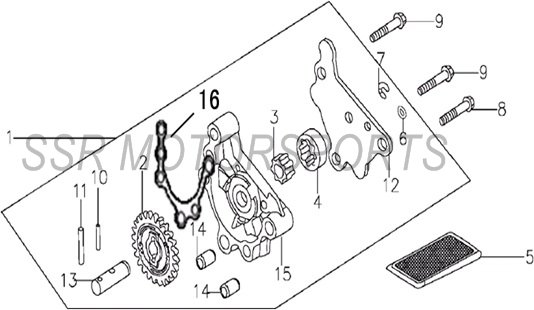

2015 SSR SR170TX - Oil Pump Assy. Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01867-09-00 | OIL PUMP ASSY+ ADD | $49.00 | 1 |
| 2 | A01868-09-00 | OIL PUMP DRIVEN GEAR+ ADD | $10.50 | 1 |
| 3 | A01869-09-00 | OIL PUMP INNER ROTOR+ ADD | $8.80 | 1 |
| 4 | A01870-09-00 | OIL PUMP OUTER ROTOR+ ADD | $8.80 | 1 |
| 5 | A01098-09-00 | OIL SCREEN+ ADD | $10.50 | 1 |
| 6 | A00141-19-05 | WASHER BOLT+ ADD | $2.00 | 1 |
| 7 | A00038-24-07 | CIRCLIP+ ADD | $2.00 | 1 |
| 8 | A00142-19-01 | FLANGE BOLT+ ADD | $2.00 | 1 |
| 9 | A00143-19-01 | FLANGE BOLT+ ADD | $2.60 | 2 |
| 10 | A01754-09-00 | PIN+ ADD | $2.00 | 1 |
| 11 | A01755-09-00 | PIN+ ADD | $2.00 | 1 |
| 12 | A01872-09-00 | OIL PUMP COVER+ ADD | $8.80 | 1 |
| 13 | A01873-09-00 | OIL PUMP ROD+ ADD | $8.80 | 1 |
| 14 | A00101-23-00 | DOWEL PIN+ ADD | $2.00 | 2 |
| 15 | A01874-09-00 | OIL PUMP BODY+ ADD | $21.00 | 1 |
| 16 | A00278-13-00 | OIL PUMP GASKET+ ADD | $6.10 | 1 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact part-number matches verified in SSR parts catalogs.
