Shifting Mechanism
All 2015 SSR SR170TX schematics

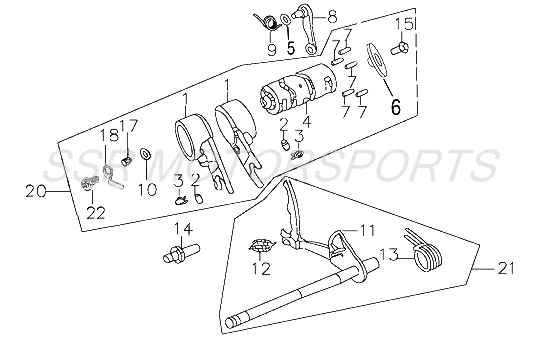

2015 SSR SR170TX - Shifting Mechanism Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01840-09-00 | SHIFT FORK+ ADD | $12.30 | 2 |
| 2 | A01841-09-00 | GUIDE PIN+ ADD | $2.00 | 2 |
| 3 | A01842-09-00 | SPRING CLIP+ ADD | $2.00 | 2 |
| 4 | A01843-09-00 | SHIFT DRUM+ ADD | $49.00 | 1 |
| 5 | A01844-09-00 | LOCK WASHER+ ADD | $8.00 | 1 |
| 6 | A01845-09-00 | SHIFTER STAR+ ADD | $8.00 | 1 |
| 7 | A01846-09-00 | SHIFTER PIN+ ADD | $2.00 | 5 |
| 8 | A01847-09-00 | SHIFTER ACTUATOR+ ADD | $8.80 | 1 |
| 9 | A01848-09-00 | SPRING+ ADD | $2.00 | 1 |
| 10 | A00267-21-03 | GROUNDING WASHER+ ADD | $6.10 | 1 |
| 11 | A01849-09-00 | SHIFT SHAFT+ ADD | $72.50 | 1 |
| 12 | A01850-09-00 | SPRING+ ADD | $2.00 | 1 |
| 13 | A01851-09-00 | RETURN SPRING+ ADD | $2.50 | 1 |
| 14 | A01852-09-00 | RETAINER PIN+ ADD | $2.60 | 1 |
| 15 | A00031-19-01 | FLANGE BOLT M6X12+ ADD | $2.00 | 1 |
| 17 | A01853-09-00 | SWITCH PLUG+ ADD | $2.00 | 1 |
| 20 | A01855-09-00 | SHIFT DRUM ASSY+ ADD | $101.50 | 1 |
| 21 | A01856-09-00 | SHIFTING SUB-ASSEMBLY+ ADD | $75.30 | 1 |
