Swingarm
All 2015 SSR SR170TX schematics

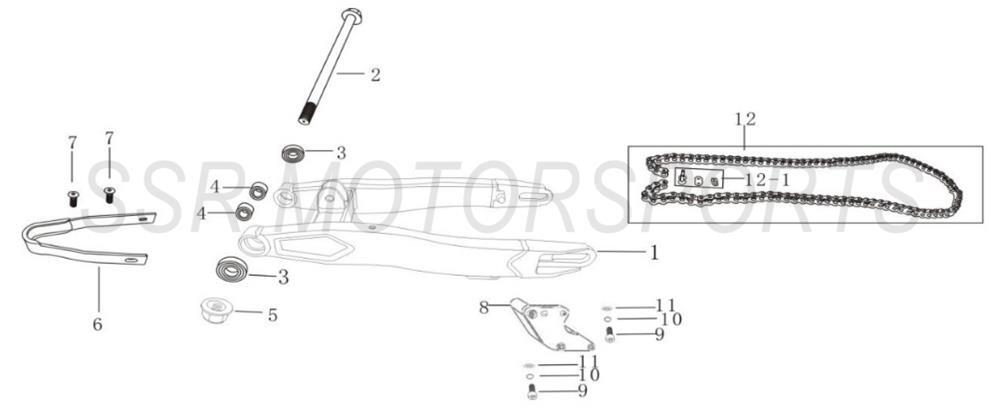

2015 SSR SR170TX - Swingarm Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00416-11-00 | SWINGARM 420MM+ ADD | $231.00 | 1 |
| 2 | A00369-11-00 | SWINGARM AXLE 10X190X1.25MM+ ADD | $10.50 | 1 |
| 3 | A00011-28-00 | BEARING 6200Z/Z+ ADD | $8.80 | 2 |
| 4 | A00406-11-00 | BUSHING 10.2X22.5XH16+ ADD | $6.10 | 2 |
| 5 | A00004-22-34 | FLANGE LOCKNUT M10+ ADD | $2.50 | 1 |
| 6 | A00545-11-00 | FRONT CHAIN SLIDER+ ADD | $19.30 | 1 |
| 7 | A00006-20-12 | CS SCREW M6X12+ ADD | $2.00 | 2 |
| 8 | A00409-11-00 | CHAIN GUIDE+ ADD | $24.50 | 1 |
| 9 | A00251-19-02 | ALLEN BOLT M8X20+ ADD | $2.00 | 2 |
| 10 | A00001-21-02 | LOCK WASHER 8X13X2+ ADD | $2.00 | 2 |
| 11 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 2 |
| 12 | A00396-07-00 | DRIVE CHAIN W/ LINK 420-108L GOLD/BLACK+ ADD | $66.50 | 1 |
| 12 | A00397-07-00 | DRIVE CHAIN W/ LINK 420-108L GOLD/GOLD+ ADD | $66.50 | 1 |
| 12-1 | A00287-07-00 | CLIP LINK 420+ ADD | $6.10 | 1 |
