Cylinder

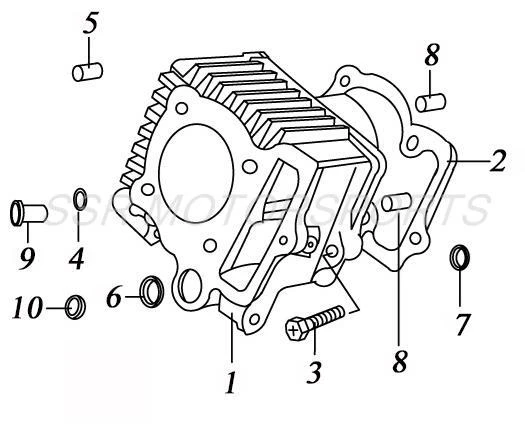

2015 SSR SR70C - Cylinder Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02717-09-00 | CYLINDER+ ADD | $117.30 | 1 |
| 2 | A00260-13-00 | CYLINDER BASE GASKET+ ADD | $12.30 | 1 |
| 3 | A00002-19-03 | BOLT M6X23 - HEX / PHILLIPS+ ADD | $2.00 | 1 |
| 4 | A00042-27-00 | O-RING 9X1.6+ ADD | $2.00 | 1 |
| 5 | A00001-23-00 | DOWEL PIN M8X14+ ADD | $2.00 | 2 |
| 6 | A00008-27-00 | O-RING 14.5X18.5X2.4+ ADD | $2.00 | 1 |
| 7 | A00009-27-00 | O-RING 11.5X2.5+ ADD | $2.00 | 1 |
| 8 | A00003-23-00 | DOWEL PIN M8X12+ ADD | $2.00 | 2 |
| 9 | A00118-23-00 | SPECIAL PIN 8X11+ ADD | $2.60 | 1 |
| 10 | A00000-21-01 | WASHER 11.5X15X1.5+ ADD | $2.00 | 1 |
