Product Description

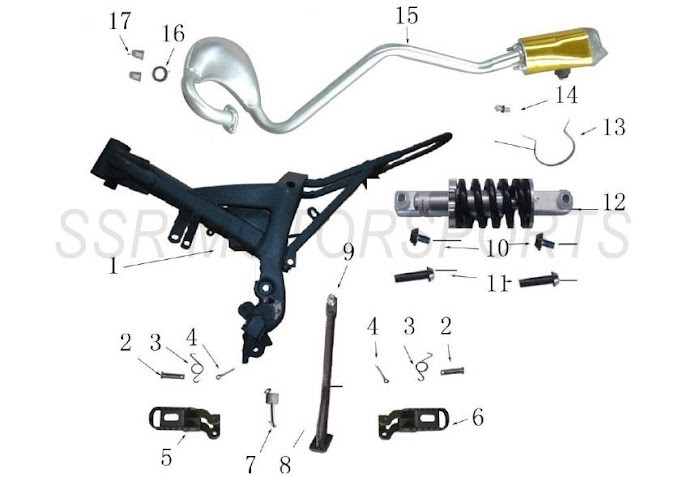

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PRICE |
| 1 | A00331-11-00 | FRAME | 1 | Pc. | $58.00 | |
| 2 | A00300-05-00 | FOOTPEG PIN | 2 | Pcs. | $1.00 | |
| 3 | A00301-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.00 | |
| 3 | A00302-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.00 | |
| 4 | A00023-28-01 | COTTER PIN | 2 | Pcs. | $1.00 | |
| 5 | A00303-05-00 | LEFT FOOTPEG | 1 | Pc. | $11.00 | |
| 6 | A00304-05-00 | RIGHT FOOTPEG | 1 | Pc. | $11.00 | |
| 7 | A00305-05-00 | KICKSTAND SPRING | 1 | Pc. | $2.00 | |
| 8 | A00306-05-00 | KICKSTAND | 1 | Pc. | $16.00 | |
| 9 | A00307-05-00 | KICKSTAND BOLT | 1 | Pc. | $1.00 | |
| 10 | A00177-19-03 | SPECIAL BOLT | 2 | Pcs. | $1.00 | |
| 11 | A00178-19-03 | SPECIAL BOLT | 2 | Pcs. | $2.00 | |
| 12 | A00219-16-00 | REAR SHOCK ABSORBER | 1 | Pc. | $32.00 | |
| 13 | A00074-10-00 | MUFFLER HANGER | 1 | Pc. | $8.00 | |
| 14 | A00251-19-02 | ALLEN BOLT | M8X20 | 1 | Pc. | $1.00 |
| 15 | A00075-10-00 | MUFFLER | 1 | Pc. | $38.00 | |
| 16 | A00109-13-00 | MUFFLER GASKET | 1 | Pc. | $3.50 | |
| 17 | A00164-19-03 | ALLEN BOLT | M6X15 | 2 | Pcs. | $1.00 |
