Product Description

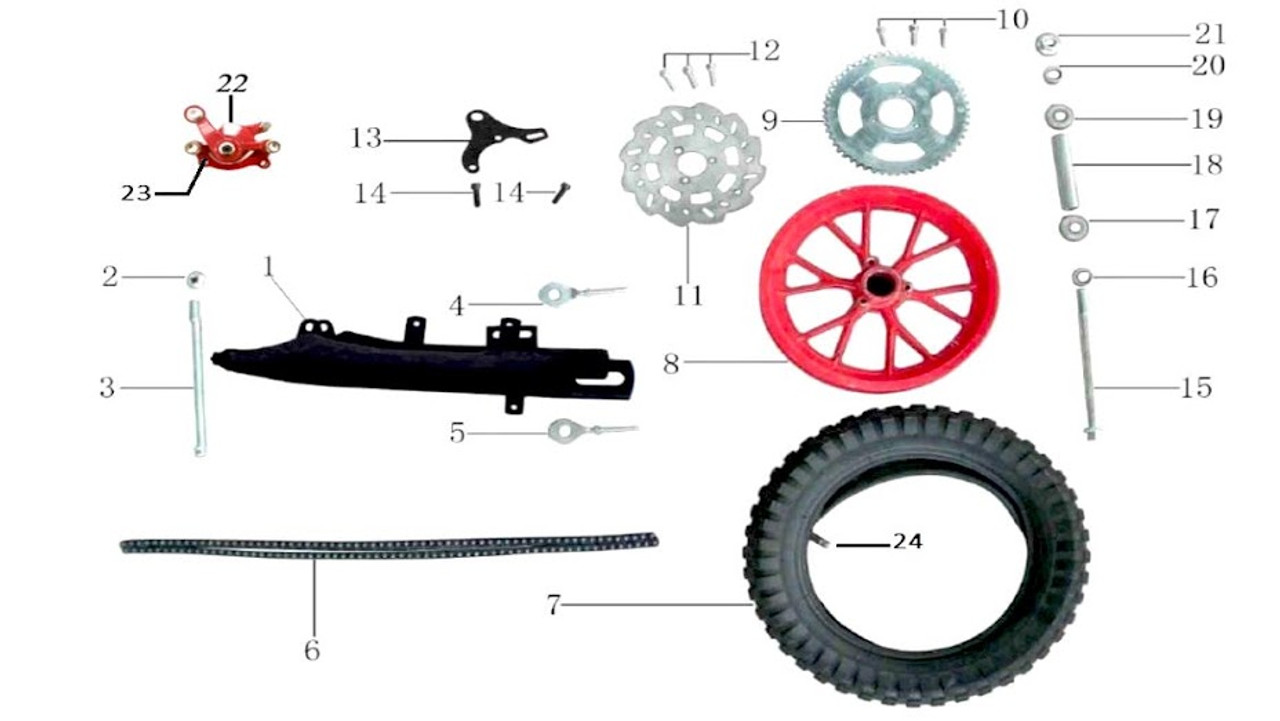

| REAR COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00474-11-00 | SWINGARM | 1 | Pc. | $37.00 | |
| 2 | A00040-22-01 | NUT | 1 | Pc. | $1.00 | |
| 3 | A00369-11-00 | SWINGARM AXLE | 1 | Pc. | $8.00 | |
| 4 | A00307-11-00 | CHAIN ADJUSTER | 1 | Pc. | $2.00 | |
| 5 | A00307-11-00 | CHAIN ADJUSTER | 1 | Pc. | $2.00 | |
| 6 | A00241-07-00 | DRIVE CHAIN | 8MM (T8F) 144L 2016 | 1 | Pc. | $13.00 |
| 6 | A00386-07-00 | DRIVE CHAIN | 8MM (T8F) 140L 2017/2018 | 1 | Pc. | $13.00 |
| 7 | A00322-18-00 | REAR TIRE | 2.50-10 | 1 | Pc. | $22.00 |
| 8 | A00564-18-00 | REAR WHEEL |
1.75X10 BLACK W/ SILVER LIP
|
1 | Pc. | $32.00 |
| 9 | A00291-07-00 | REAR SPROCKET | 54T | 1 | Pc. | $13.00 |
| 10 | A00164-19-03 | ALLEN BOLT | M6X15 | 3 | Pcs. | $1.00 |
| 11 | A00411-04-00 | REAR BRAKE ROTOR | 1 | Pc. | $13.00 | |
| 12 | A00166-19-03 | BOLT | 3 | Pcs. | $1.00 | |
| 13 | A00463-04-00 | REAR CALIPER BRACKET | 1 | Pc. | $11.00 | |
| 14 | A00168-19-03 | BOLT | 2 | Pcs. | $1.00 | |
| 15 | A00535-18-00 | REAR WHEEL AXLE | M12X145 | 1 | Pc. | $5.00 |
| 16 | A00476-11-00 | REAR WHEEL SPACER | 1 | Pc. | $2.00 | |
| 17 | A00115-28-00 | WHEEL BEARING | 6001RS | 1 | Pc. | $4.00 |
| 18 | A00477-11-00 | BEARING SPACER | 1 | Pc. | $2.00 | |
| 19 | A00115-28-00 | WHEEL BEARING | 6001RS | 1 | Pc. | $4.00 |
| 20 | A00478-11-00 | SPACER | 1 | Pc. | $2.00 | |
| 21 | A00042-22-01 | REAR AXLE NUT | 1 | Pc. | $1.00 | |
| 22 | A00464-04-00 | REAR BRAKE CALIPER | 1 | Pc. | $21.00 | |
| 23 | A00409-04-00 | FRONT/REAR BRAKE PAD SET | 1 | Set | $14.00 | |
| 24 | A00219-18-00 | INNER TUBE | 2.50X10 | 1 | Pc. | $11.00 |
