Timing Chain
All 2016 SSR SR160TR schematics

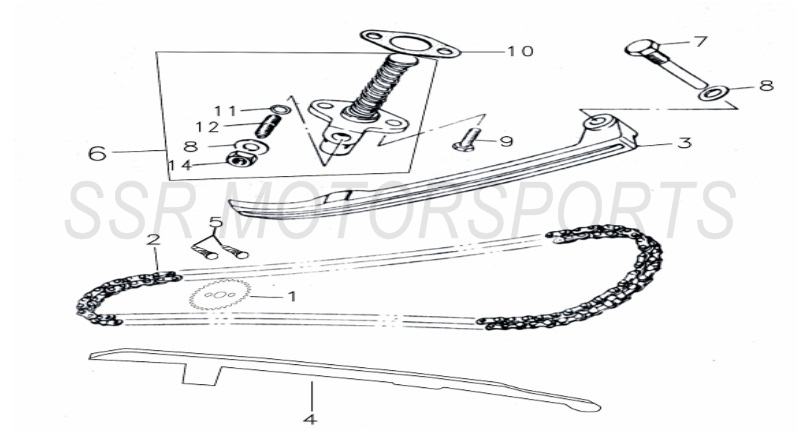

2016 SSR SR160TR - Timing Chain Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01787-09-00 | CAM SPROCKET+ ADD | $24.50 | 1 |
| 2 | A01788-09-00 | TIMING CHAIN+ ADD | $75.30 | 1 |
| 3 | A01789-09-00 | UPPER TENSIONER GUIDE+ ADD | $15.80 | 1 |
| 4 | A01790-09-00 | LOWER TENSIONER GUIDE+ ADD | $15.80 | 1 |
| 5 | A00011-19-03 | BOLT M6×14+ ADD | $2.00 | 2 |
| 6 | A01791-09-00 | CAM CHAIN TENSIONER ASSY+ ADD | $15.80 | 1 |
| 7 | A01792-09-00 | UPPER CHAIN SLIDER PIVOT BOLT+ ADD | $2.50 | 1 |
| 8 | A00004-21-01 | WASHER M8+ ADD | $2.00 | 2 |
| 9 | A00016-19-03 | BOLT M6X20+ ADD | $2.00 | 2 |
| 10 | A00175-13-00 | CAM CHAIN TENSIONER GASKET+ ADD | $2.60 | 1 |
| 11 | A00097-27-00 | O-RING+ ADD | $2.00 | 1 |
| 12 | A01793-09-00 | ADJUSTER BOLT+ ADD | $2.00 | 1 |
| 14 | A00002-22-01 | NUT M8+ ADD | $2.00 | 1 |
