Cylinder Head & Cylinder
All 2016 SSR SR160TX schematics

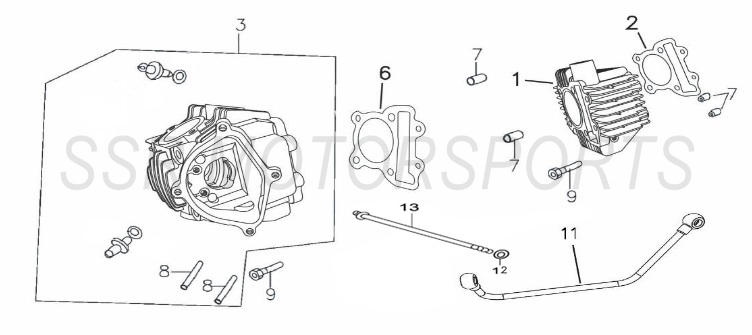

2016 SSR SR160TX - Cylinder Head & Cylinder Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01765-09-00 | CYLINDER+ ADD | $143.50 | 1 |
| 2 | A00170-13-00 | CYLINDER BASE GASKET+ ADD | $12.30 | 1 |
| 3 | A01766-09-00 | CYLINDER HEAD ASSY W/O VALVES+ ADD | $336.00 | 1 |
| 6 | A00171-13-00 | CYLINDER HEAD GASKET+ ADD | $12.30 | 1 |
| 7 | A00002-23-00 | DOWEL PIN M10X14+ ADD | $2.00 | 4 |
| 8 | A00019-19-04 | STUD M6x38+ ADD | $2.00 | 2 |
| 9 | A01769-09-00 | OIL PIPE BOLT M8x25+ ADD | $2.00 | 2 |
| 11 | A02724-09-00 | OIL PIPE+ ADD | $15.80 | 1 |
| 12 | A01177-09-00 | ALUMINUM WASHER M6+ ADD | $2.00 | 2 |
| 13 | A00437-19-08 | CASE FLANGE BOLT M6X105+ ADD | $2.50 | 2 |
