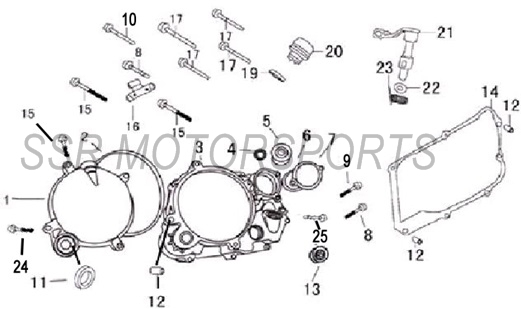

2016 SSR SR170TX - Crankcase Cover Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A01812-09-00	OUTER CLUTCH COVER+ ADD	$82.30	1
2	A00082-27-00	CLUTCH COVER O-RING+ ADD	$8.80	1
3	A02969-09-00	INNER CLUTCH COVER+ ADD	$115.50	1
4	A01815-09-00	OIL FILTER SPRING+ ADD	$2.50	1
5	A01816-09-00	OIL FILTER SCREEN TYPE+ ADD	$28.00	1
6	A00083-27-00	OIL FILTER COVER O-RING+ ADD	$2.50	1
7	A01818-09-00	OIL FILTER COVER+ ADD	$24.50	1
8	A00418-19-08	CASE FLANGE BOLT M6X16+ ADD	$2.00	2
9	A00435-19-08	CASE FLANGE BOLT M6X130+ ADD	$2.00	1
10	A00428-19-08	CASE FLANGE BOLT M6X50+ ADD	$2.00	1
11	A00226-26-00	OIL SEAL 16X24X5+ ADD	$3.50	1
12	A00102-23-00	DOWEL PIN+ ADD	$2.00	3
13	A01820-09-00	OIL LEVEL WINDOW+ ADD	$12.30	1
14	A00176-13-00	CLUTCH COVER GASKET+ ADD	$21.00	1
15	A00421-19-08	CASE FLANGE BOLT M6X25+ ADD	$2.00	2
16	A01821-09-00	CLUTCH CABLE HOLDER+ ADD	$2.60	1
17	A00426-19-08	CASE FLANGE BOLT M6X40+ ADD	$2.00	4
19	A00099-27-00	O-RING 18x3+ ADD	$2.00	1
20	A01822-09-00	OIL FILLER CAP+ ADD	$8.80	1
21	A01823-09-00	CLUTCH ACTUATOR+ ADD	$31.50	1
22	A00096-27-00	OIL SEAL 12X18X5+ ADD	$2.00	1
23	A01824-09-00	CLUTCH ACTUATOR RETURN SPRING+ ADD	$2.00	1
24	A00438-19-08	CASE FLANGE BOLT M6X90+ ADD	$2.00	1
25	A00430-19-08	CASE FLANGE BOLT M6X65+ ADD	$2.50	1
