Footpegs, Side Stand And Skid Plate
All 2016 SSR SR170TX schematics

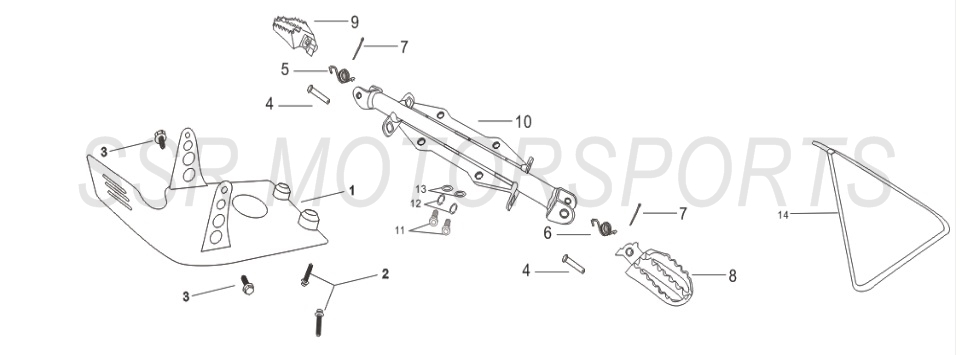

2016 SSR SR170TX - Footpegs, Side Stand And Skid Plate Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00410-11-00 | SKID PLATE+ ADD | $68.30 | 1 |
| 2 | A00049-19-01 | FLANGE BOLT M8X35+ ADD | $2.50 | 2 |
| 3 | A00418-19-08 | CASE FLANGE BOLT M6X16+ ADD | $2.00 | 2 |
| 4 | A00336-05-00 | FOOTPEG PIVOT PIN 7.8X42+ ADD | $2.00 | 2 |
| 5 | A00335-05-00 | RIGHT FOOTPEG SPRING 20X2XH8X4+ ADD | $2.00 | 1 |
| 6 | A00334-05-00 | LEFT FOOTPEG SPRING 20X2XH8X4+ ADD | $2.00 | 1 |
| 7 | A00019-28-01 | COTTER PIN 2.5X24+ ADD | $2.00 | 2 |
| 8 | A00332-05-00 | LEFT FOOTPEG+ ADD | $21.00 | 1 |
| 9 | A00330-05-00 | RIGHT FOOTPEG+ ADD | $21.00 | 1 |
| 10 | A00395-05-00 | FOOTPEG BRACKET+ ADD | $31.50 | 1 |
| 11 | A00125-19-02 | ALLEN BOLT M8X25+ ADD | $2.00 | 2 |
| 12 | A00005-21-04 | LOCK WASHER 8X16X1.5MM+ ADD | $2.00 | 2 |
| 13 | A00004-21-01 | WASHER M8+ ADD | $2.00 | 2 |
| 14 | A00396-05-00 | TRIANGLE SIDE STAND 14/12+ ADD | $38.50 | 1 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact part-number matches verified in SSR parts catalogs.
