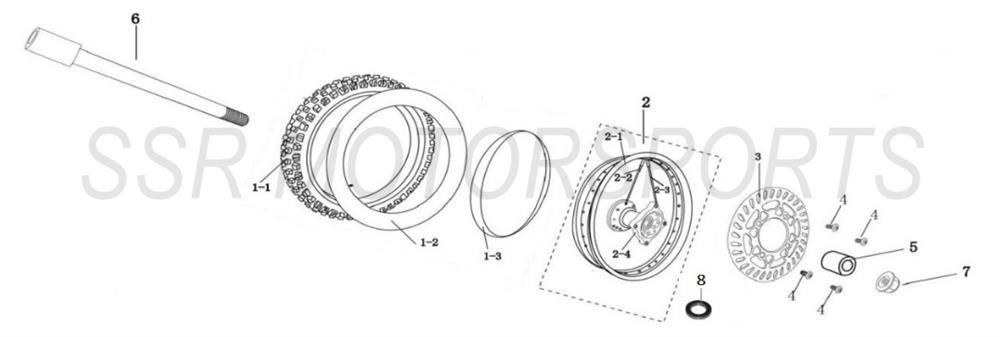

2016 SSR SR170TX - Front Wheel Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1-1 | A00354-18-00 | FRONT TIRE 60/100-14+ ADD | $64.80 | 1 |
| 1-2 | A00233-18-00 | INNER TUBE 250-14" (60/100-14")+ ADD | $21.00 | 1 |
| 1-3 | A00400-18-00 | RIM STRIP 14"+ ADD | $6.10 | 1 |
| 2 | A00515-18-00 | FRONT WHEEL ASSY 1.4X4-33 ALUMINUM+ ADD | $129.00 | 1 |
| 2-1 | A00517-18-00 | FRONT RIM 1.4-14+ ADD | $72.50 | 1 |
| 2-2 | A00338-18-00 | FRONT INNER SPOKE W/ NIPPLE 150+ ADD | $2.50 | 16 |
| 2-3 | A00339-18-00 | FRONT OUTER SPOKE W/ NIPPLE 153+ ADD | $2.50 | 16 |
| 2-4 | A00308-18-00 | FRONT WHEEL HUB+ ADD | $101.50 | 1 |
| 3 | A00514-04-00 | FRONT BRAKE ROTOR 220 16.5XH1.5+ ADD | $36.80 | 1 |
| 4 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN+ ADD | $2.00 | 4 |
| 5 | A00341-18-00 | FRONT WHEEL AXLE SPACER 15X25XH26+ ADD | $6.10 | 1 |
| 6 | A00342-18-00 | FRONT AXLE 15X58X215XM14X1.5MM+ ADD | $35.00 | 1 |
| 7 | A00003-22-01 | FLANGE LOCKNUT M14x1.5+ ADD | $2.60 | 1 |
| 8 | A00017-28-00 | BEARING 6202-RS+ ADD | $8.00 | 2 |
