Stator And Stator Cover
All 2016 SSR SR170TX schematics

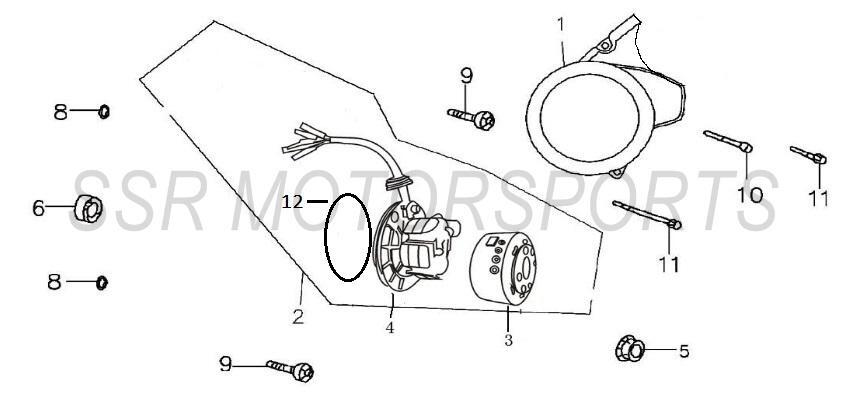

2016 SSR SR170TX - Stator And Stator Cover Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01825-09-00 | STATOR COVER+ ADD | $82.30 | 1 |
| 2 | A02702-09-00 | STATOR W/ FLYWHEEL ASSY+ ADD | $176.80 | 1 |
| 3 | A02703-09-00 | FLYWHEEL+ ADD | $94.50 | 1 |
| 4 | A02704-09-00 | STATOR+ ADD | $117.30 | 1 |
| 5 | A00004-22-08 | SPECIAL NUT M10X1.25 WIDE FLANGE+ ADD | $2.00 | 1 |
| 6 | A00003-26-00 | OIL SEAL 18.9X30X5+ ADD | $4.40 | 1 |
| 8 | A00012-27-00 | O-RING 6.5X1.9+ ADD | $2.00 | 2 |
| 9 | A00025-19-01 | FLANGE BOLT M6X14+ ADD | $2.00 | 2 |
| 10 | A00422-19-08 | CASE FLANGE BOLT M6X28+ ADD | $2.00 | 1 |
| 11 | A00425-19-08 | CASE FLANGE BOLT M6X35+ ADD | $2.00 | 2 |
| 12 | A00010-27-00 | O-RING 107X2+ ADD | $8.80 | 1 |
| 13 | A00258-13-00 | STATOR COVER GASKET+ ADD | $10.50 | 1 |
Selected Parts (0)
Estimated Total: $0.00
