All 2017 SSR SR110SEMI schematics

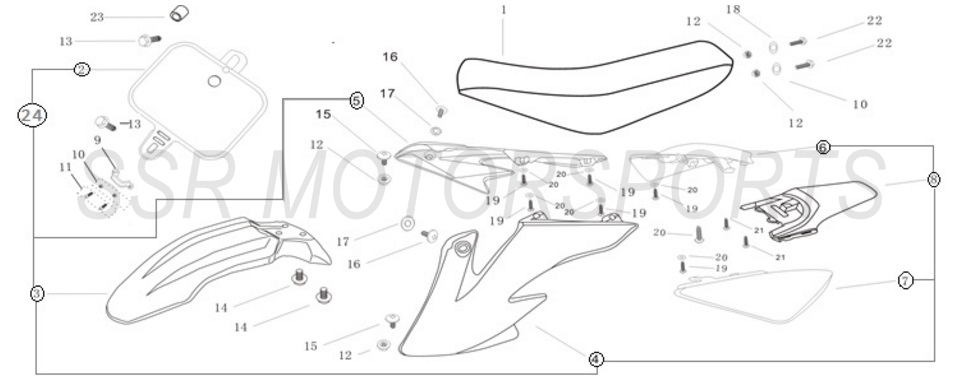

2017 SSR SR110SEMI - Body Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

2017 SSR SR110SEMI - Body Parts Diagram
FIND & SELECT YOUR PARTS
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
NO. PART # DESCRIPTION MSRP QTY
1 A00717-02-00 SEAT LOW+ ADD $52.50 1
2 A00677-02-02 FRONT NUMBER PLATE BLACK+ ADD $12.30 1
2 A00677-02-01 FRONT NUMBER PLATE WHITE+ ADD $12.30 1
2 A00677-02-04 FRONT NUMBER PLATE GREEN+ ADD $12.30 1
2 A00677-02-12 FRONT NUMBER PLATE BLUE+ ADD $12.30 1
2 A00677-02-18 FRONT NUMBER PLATE RED+ ADD $12.30 1
2 A00677-02-03 FRONT NUMBER PLATE ORANGE+ ADD $12.30 1
3 A00678-02-02 FRONT FENDER BLACK+ ADD $12.30 1
3 A00678-02-01 FRONT FENDER WHITE+ ADD $12.30 1
3 A00678-02-04 FRONT FENDER GREEN+ ADD $12.30 1
3 A00678-02-12 FRONT FENDER BLUE+ ADD $12.30 1
3 A00678-02-18 FRONT FENDER RED+ ADD $12.30 1
3 A00678-02-03 FRONT FENDER ORANGE+ ADD $12.30 1
4 A00679-02-02 LEFT FUEL TANK SHROUD BLACK+ ADD $12.30 1
4 A00679-02-01 LEFT FUEL TANK SHROUD WHITE+ ADD $12.30 1
4 A00679-02-04 LEFT FUEL TANK SHROUD GREEN+ ADD $12.30 1
4 A00679-02-12 LEFT FUEL TANK SHROUD BLUE+ ADD $12.30 1
4 A00679-02-18 LEFT FUEL TANK SHROUD RED+ ADD $12.30 1
4 A00679-02-03 LEFT FUEL TANK SHROUD ORANGE+ ADD $12.30 1
5 A00680-02-02 RIGHT FUEL TANK SHROUD BLACK+ ADD $12.30 1
5 A00680-02-01 RIGHT FUEL TANK SHROUD WHITE+ ADD $12.30 1
5 A00680-02-04 RIGHT FUEL TANK SHROUD GREEN+ ADD $12.30 1
5 A00680-02-12 RIGHT FUEL TANK SHROUD BLUE+ ADD $12.30 1
5 A00680-02-18 RIGHT FUEL TANK SHROUD RED+ ADD $12.30 1
5 A00680-02-03 RIGHT FUEL TANK SHROUD ORANGE+ ADD $12.30 1
6 A00681-02-02 RIGHT REAR NUMBER PLATE BLACK+ ADD $12.30 1
6 A00681-02-01 RIGHT REAR NUMBER PLATE WHITE+ ADD $12.30 1
6 A00681-02-04 RIGHT REAR NUMBER PLATE GREEN+ ADD $12.30 1
6 A00681-02-12 RIGHT REAR NUMBER PLATE BLUE+ ADD $12.30 1
6 A00681-02-18 RIGHT REAR NUMBER PLATE RED+ ADD $12.30 1
6 A00681-02-03 RIGHT REAR NUMBER PLATE ORANGE+ ADD $12.30 1
7 A00682-02-02 LEFT REAR NUMBER PLATE BLACK+ ADD $12.30 1
7 A00682-02-01 LEFT REAR NUMBER PLATE WHITE+ ADD $12.30 1
7 A00682-02-04 LEFT REAR NUMBER PLATE GREEN+ ADD $12.30 1
7 A00682-02-12 LEFT REAR NUMBER PLATE BLUE+ ADD $12.30 1
7 A00682-02-18 LEFT REAR NUMBER PLATE RED+ ADD $12.30 1
7 A00682-02-03 LEFT REAR NUMBER PLATE ORANGE+ ADD $12.30 1
8 A00683-02-02 REAR FENDER BLACK+ ADD $12.30 1
8 A00683-02-01 REAR FENDER WHITE+ ADD $12.30 1
8 A00683-02-04 REAR FENDER GREEN+ ADD $12.30 1
8 A00683-02-12 REAR FENDER BLUE+ ADD $12.30 1
8 A00683-02-18 REAR FENDER RED+ ADD $12.30 1
8 A00683-02-03 REAR FENDER ORANGE+ ADD $12.30 1
9 A00684-02-00 FRONT BRAKE CABLE/HOSE GUIDE WHITE+ ADD $2.00 1
10 A00348-22-04 LOCKNUT M4+ ADD $2.00 2
11 A00009-20-01 PHILLIPS BOLT M4X12+ ADD $2.00 2
12 A00093-22-03 FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD $2.00 2
13 A00418-19-08 CASE FLANGE BOLT M6X16+ ADD $2.00 2
14 A00008-19-03 FLANGE BOLT M6X12+ ADD $2.00 2
15 A00003-20-01 SCREW M6X16+ ADD $2.00 2
16 A00010-19-29 PAN HEAD PHILLIPS BOLT M6X10+ ADD $2.00 2
17 A00016-21-01 RUBBER WASHER 6X17X3.5+ ADD $2.00 2
18 A00011-21-01 WASHER M6X18X1.5+ ADD $2.00 2
19 A00010-20-03 ST SCREW ST4.2X16+ ADD $2.00 7
20 A00017-21-01 WASHER 6X12X1.5+ ADD $2.00 6
21 A00002-20-03 ST SCREW ST4.2X12+ ADD $2.00 2
22 A00419-19-08 CASE FLANGE BOLT M6X20+ ADD $2.00 2
23 A00685-02-00 SPACER 8X16XH6.5+ ADD $2.00 1
24 A00936-02-02 COMPLETE PLASTIC KIT BLACK+ ADD $42.00 1
24 A00936-02-01 COMPLETE PLASTIC KIT WHITE+ ADD $42.00 1
24 A00936-02-04 COMPLETE PLASTIC KIT GREEN+ ADD $42.00 1
24 A00936-02-12 COMPLETE PLASTIC KIT BLUE+ ADD $42.00 1
24 A00936-02-18 COMPLETE PLASTIC KIT RED+ ADD $42.00 1
24 A00936-02-03 COMPLETE PLASTIC KIT ORANGE+ ADD $42.00 1
25 A00009-20-03 ST SCREW ST4.8X16+ ADD $2.00 1

Selected Parts (0)

Estimated Total: $0.00
WHERE USED
WHERE USED

Exact part-number matches verified in SSR parts catalogs.
