Upper And Lower Triple Clamp
All 2017 SSR SR110SEMI schematics

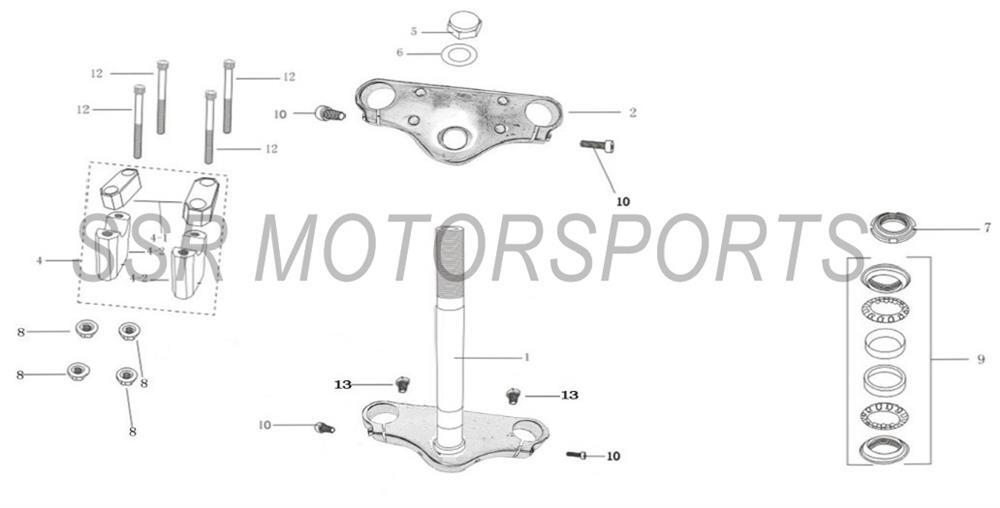

2017 SSR SR110SEMI - Upper And Lower Triple Clamp Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00157-15-00 | LOWER TRIPLE CLAMP W/ STEERING STEM 25.1X201+ ADD | $85.80 | 1 |
| 2 | A00158-15-00 | UPPER TRIPLE CLAMP 33+ ADD | $68.30 | 1 |
| 4 | A00214-15-00 | HANDLEBAR RISER ASSY+ ADD | $35.00 | 1 |
| 4-1 | A00215-15-00 | UPPER HANDLEBAR CLAMP+ ADD | $8.80 | 2 |
| 4-2 | A00216-15-00 | LOWER HANDLEBAR CLAMP 52X21XH25+ ADD | $10.50 | 2 |
| 5 | A00166-15-00 | STEERING STEM NUT M22X1+ ADD | $6.10 | 1 |
| 6 | A00170-15-00 | WASHER 23X36X2+ ADD | $2.60 | 1 |
| 7 | A00219-15-00 | STEERING STEM ADJUSTER NUT CRF+ ADD | $4.40 | 1 |
| 8 | A00167-15-00 | FLANGE NUT GB6187-86 M8+ ADD | $2.00 | 4 |
| 9 | A00168-15-00 | STEERING STEM BEARING SET INCLUDES #20+ ADD | $35.00 | 1 |
| 10 | A00008-19-02 | ALLEN BOLT M6X20+ ADD | $2.00 | 4 |
| 11 | A00251-19-02 | ALLEN BOLT M8X20+ ADD | $2.00 | 2 |
| 12 | A00052-19-03 | ALLEN BOLT M8x75+ ADD | $2.50 | 4 |
| 13 | A00026-19-03 | ALLEN BOLT M8X12+ ADD | $2.00 | 2 |
