Suspension Linkage

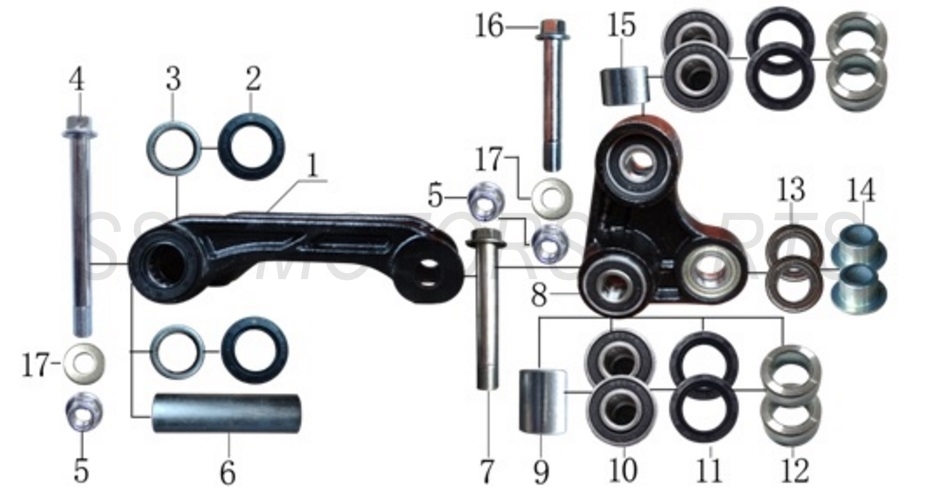

2017 SSR SR150 - Suspension Linkage Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00207-16-00 | ROD LINK+ ADD | $38.50 | 1 |
| 2 | A00034-26-00 | DUST SEAL 20X32X5+ ADD | $2.60 | 2 |
| 3 | A00064-28-00 | NEEDLE BEARING HK2012+ ADD | $26.30 | 2 |
| 4 | A00018-19-01 | FLANGE BOLT M12X120+ ADD | $6.10 | 1 |
| 5 | A00001-22-34 | FLANGE LOCKNUT M12+ ADD | $2.50 | 3 |
| 6 | A00210-16-00 | BEARING SPACER SLEEVE 20X12X81MM+ ADD | $4.40 | 1 |
| 7 | A00019-19-01 | FLANGE BOLT M12X95+ ADD | $6.10 | 1 |
| 8 | A00211-16-00 | PIVOT ARM+ ADD | $59.50 | 1 |
| 9 | A00212-16-00 | BEARING SPACER SLEEVE 18X12.5X24MM+ ADD | $2.60 | 1 |
| 10 | A00003-28-01 | BEARING 6001RS (SHIELDED)+ ADD | $12.30 | 4 |
| 11 | A00035-26-00 | DUST SEAL 20X28X5+ ADD | $2.60 | 4 |
| 12 | A00067-21-01 | SPACER 19X12X9.5+ ADD | $2.00 | 4 |
| 13 | A00065-28-00 | BEARING 6902+ ADD | $14.00 | 2 |
| 14 | A00214-16-00 | COLLAR 20X10.2X11X15MM+ ADD | $2.00 | 2 |
| 15 | A00215-16-00 | BEARING SPACER 18X12.5X13.5+ ADD | $2.60 | 1 |
| 16 | A00020-19-01 | FLANGE BOLT M12X83+ ADD | $3.50 | 1 |
| 17 | A00066-21-01 | WASHER 12X24X2+ ADD | $2.00 | 2 |
