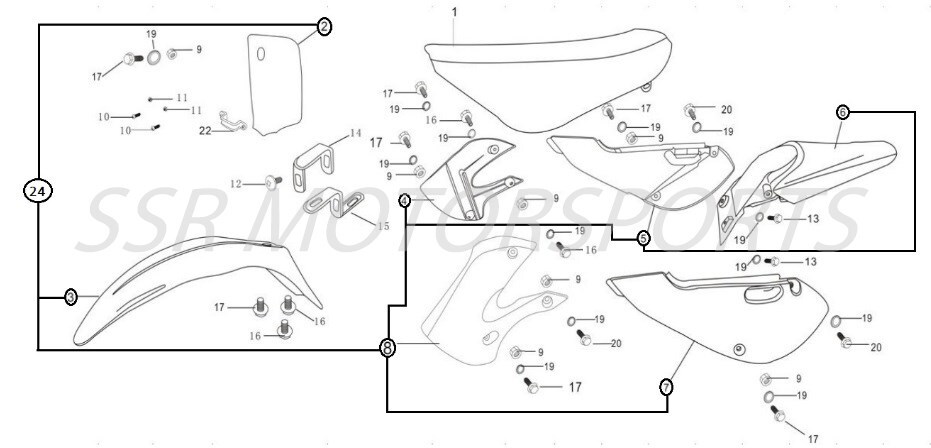

2017 SSR SR170TX - Body Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A00746-02-00	SEAT+ ADD	$101.50	1
2	A00748-02-01	FRONT NUMBER PLATE WHITE+ ADD	$15.80	1
3	A00749-02-02	FRONT FENDER BLACK+ ADD	$21.00	1
3	A00749-02-01	FRONT FENDER WHITE+ ADD	$21.00	1
4	A00750-02-02	RIGHT FUEL TANK SHROUD BLACK+ ADD	$24.50	1
4	A00750-02-01	RIGHT FUEL TANK SHROUD WHITE+ ADD	$24.50	1
5	A00751-02-02	RIGHT REAR NUMBER PLATE SR160/170TX+ ADD	$21.00	1
5	A00751-02-01	RIGHT REAR NUMBER PLATE WHITE+ ADD	$21.00	1
6	A00752-02-02	REAR FENDER BLACK+ ADD	$21.00	1
6	A00752-02-01	REAR FENDER WHITE+ ADD	$21.00	1
7	A00753-02-02	LEFT REAR NUMBER PLATE SR160/170TX+ ADD	$21.00	1
7	A00753-02-01	LEFT REAR NUMBER PLATE WHITE+ ADD	$21.00	1
8	A00754-02-02	LEFT FUEL TANK SHROUD BLACK+ ADD	$24.50	1
8	A00754-02-01	LEFT FUEL TANK SHROUD WHITE+ ADD	$24.50	1
9	A00001-22-01	NUT M6+ ADD	$2.00	7
10	A00009-20-01	PHILLIPS BOLT M4X12+ ADD	$2.00	2
11	A00348-22-04	LOCKNUT M4+ ADD	$2.00	2
12	A00001-20-01	SCREW M5x10+ ADD	$2.00	1
13	A00003-19-01	FLANGE BOLT M6X25+ ADD	$2.00	2
15	A00756-02-00	FRONT LOWER NUMBER PLATE BRACKET 57X17+ ADD	$8.00	1
16	A00031-19-01	FLANGE BOLT M6X12+ ADD	$2.00	4
17	A00418-19-08	CASE FLANGE BOLT M6X16+ ADD	$2.00	6
19	A00011-21-01	WASHER M6X18X1.5+ ADD	$2.00	13
20	A00015-19-01	FLANGE BOLT M8X20 S12+ ADD	$2.00	2
22	A00757-02-01	FRONT BRAKE HOSE GUIDE WHITE+ ADD	$2.00	1
24	A00938-02-02	COMPLETE BODY KIT BLACK+ ADD	$75.30	1
24	A00938-02-01	COMPLETE BODY KIT WHITE+ ADD	$75.30	1
