Kickstart Assy.
All 2017 SSR SR170TX schematics

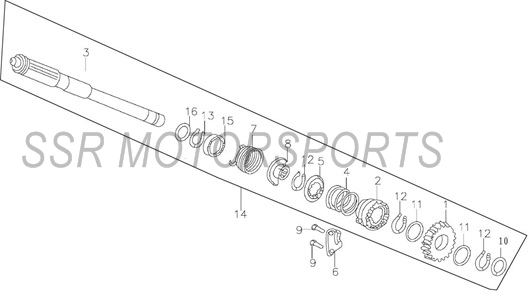

2017 SSR SR170TX - Kickstart Assy. Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01857-09-00 | KICKSTARTER GEAR+ ADD | $29.80 | 1 |
| 2 | A01858-09-00 | KICKSTARTER RATCHET WHEEL+ ADD | $19.30 | 1 |
| 3 | A01859-09-00 | KICKSTARTER SHAFT+ ADD | $49.00 | 1 |
| 4 | A01860-09-00 | SPRING+ ADD | $2.50 | 1 |
| 5 | A01861-09-00 | RATCHET WASHER+ ADD | $2.60 | 1 |
| 6 | A01862-09-00 | RATCHET WHEEL GUIDE RUNNER+ ADD | $6.10 | 1 |
| 7 | A01863-09-00 | STARTING SHAFT SPRING+ ADD | $2.60 | 1 |
| 8 | A01864-09-00 | STARTING SHAFT SPRING PLATE+ ADD | $8.80 | 1 |
| 10 | A01123-09-00 | WASHER I 20.2X27X1+ ADD | $2.00 | 1 |
| 11 | A01129-09-00 | WASHER II 17.2X24X1+ ADD | $2.00 | 2 |
| 12 | A01130-09-00 | CIRCLIP 18.5+ ADD | $2.00 | 3 |
| 13 | A01131-09-00 | CIRCLIP 15.5+ ADD | $2.00 | 1 |
| 14 | A01865-09-00 | KICKSTARTER SHAFT ASSY+ ADD | $117.30 | 1 |
| 15 | A01866-09-00 | SPRING COVER+ ADD | $4.40 | 1 |
| 16 | A00120-21-01 | WASHER+ ADD | $2.00 | 1 |
