Rear Wheel
All 2017 SSR SR170TX schematics

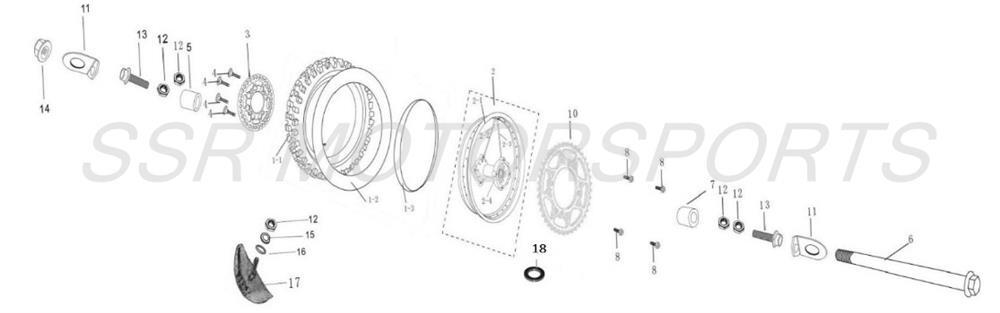

2017 SSR SR170TX - Rear Wheel Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1-1 | A00452-18-00 | REAR TIRE 80/100-12+ ADD | $64.80 | 1 |
| 1-2 | A00291-18-00 | INNER TUBE 80/100-12+ ADD | $21.00 | 1 |
| 1-3 | A00292-18-00 | RIM STRIP 12"+ ADD | $6.10 | 1 |
| 2 | A00516-18-00 | REAR WHEEL ASSY 1.85X12/36 ALUMINUM+ ADD | $129.00 | 1 |
| 2-2 | A00295-18-00 | REAR INNER SPOKE (129) W/NIPPLE+ ADD | $2.50 | 16 |
| 2-3 | A00296-18-00 | REAR OUTER SPOKE (133) W/NIPPLE+ ADD | $2.50 | 16 |
| 2-4 | A00346-18-00 | REAR WHEEL HUB+ ADD | $101.50 | 1 |
| 3 | A00515-04-00 | REAR BRAKE ROTOR 190/16.5XH1.5+ ADD | $36.80 | 1 |
| 4 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN+ ADD | $2.00 | 4 |
| 5 | A00347-18-00 | RIGHT REAR WHEEL SPACER 15X25XH25+ ADD | $6.10 | 1 |
| 6 | A00348-18-00 | REAR AXLE 15X225XM14X1.5MM+ ADD | $38.50 | 1 |
| 7 | A00349-18-00 | LEFT REAR WHEEL SPACER 15X25XH33+ ADD | $6.10 | 1 |
| 8 | A00007-19-01 | FLANGE BOLT M8X25+ ADD | $2.00 | 4 |
| 10 | A00385-07-00 | REAR SPROCKET 420-41T ALUMINUM+ ADD | $101.50 | 1 |
| 11 | A00350-18-00 | CHAIN ADJUSTER PLATE 15X29+31X7XH37 (RED or SILVER)+ ADD | $8.80 | 2 |
| 12 | A00002-22-01 | NUT M8+ ADD | $2.00 | 5 |
| 13 | A00263-19-03 | BOLT M8X45+ ADD | $2.50 | 2 |
| 14 | A00003-22-01 | FLANGE LOCKNUT M14x1.5+ ADD | $2.60 | 1 |
| 15 | A00001-21-02 | LOCK WASHER 8X13X2+ ADD | $2.00 | 1 |
| 16 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 1 |
| 17 | A00352-18-00 | RIM LOCK KAYO 1.85+ ADD | $8.80 | 1 |
| 18 | A00017-28-00 | BEARING 6202-RS+ ADD | $8.00 | 2 |
