Air Cleaner
All 2017 SSR SR250S schematics

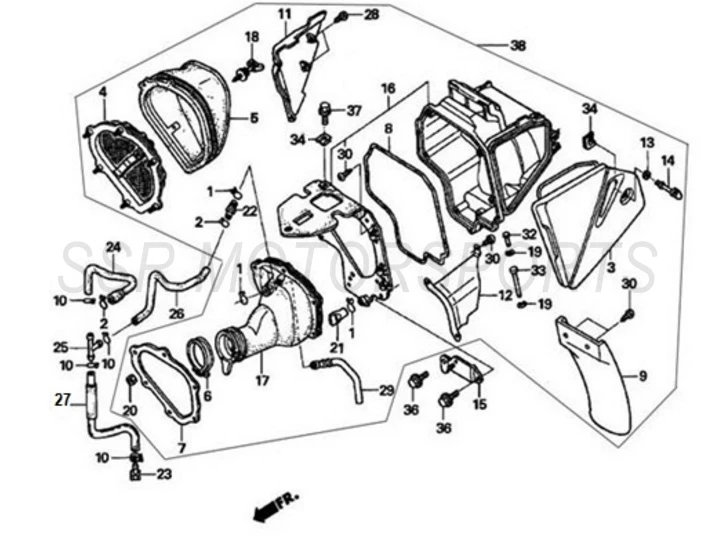

2017 SSR SR250S - Air Cleaner Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00025-24-03 | WIRE HOSE CLAMP+ ADD | $2.00 | 3 |
| 2 | A00026-24-03 | WIRE HOSE CLAMP 16MM+ ADD | $2.00 | 2 |
| 3 | A00027-14-00 | AIRBOX LID+ ADD | $28.00 | 1 |
| 4 | A00028-14-00 | AIR FILTER HOLDER SCREEN+ ADD | $35.00 | 1 |
| 5 | A00063-14-00 | AIR FILTER ELEMENT TWIN AIR+ ADD | $72.50 | 1 |
| 6 | A00027-24-02 | HOSE CLAMP 40-60mm+ ADD | $8.00 | 1 |
| 7 | A00031-14-00 | AIRBOX BOOT RETAINER+ ADD | $14.00 | 1 |
| 8 | A00032-14-00 | AIR BOX SEAL+ ADD | $8.80 | 1 |
| 9 | A00067-14-00 | MUDFLAP+ ADD | $8.80 | 1 |
| 10 | A00028-24-03 | WIRE HOSE CLAMP 12MM+ ADD | $2.00 | 5 |
| 11 | A00034-14-00 | RIGHT AIRBOX COVER+ ADD | $19.30 | 1 |
| 12 | A00035-14-00 | LEFT AIRBOX COVER+ ADD | $19.30 | 1 |
| 13 | A00098-21-01 | WASHER+ ADD | $2.00 | 1 |
| 14 | A00036-14-00 | FILTER COVER BOLT+ ADD | $2.00 | 1 |
| 15 | A00037-14-00 | REGULATOR / RECTIFIER BRACKET+ ADD | $6.10 | 1 |
| 16 | A00038-14-00 | AIRBOX+ ADD | $92.80 | 1 |
| 17 | A00039-14-00 | AIR BOX BOOT+ ADD | $45.50 | 1 |
| 18 | A00247-19-01 | AIR FILTER WINGBOLT+ ADD | $4.40 | 1 |
| 19 | A00029-24-07 | CIRCLIP+ ADD | $2.00 | 2 |
| 20 | A00028-22-03 | FLANGE NUT+ ADD | $2.00 | 6 |
| 21 | A00041-14-00 | AIRBOX DRAIN HOSE+ ADD | $4.40 | 1 |
| 22 | A00042-14-00 | TUBE JOINT+ ADD | $8.00 | 1 |
| 23 | A00076-14-00 | BREATHER TUBE PLUG+ ADD | $4.40 | 1 |
| 24 | A00044-14-00 | VENT TUBE+ ADD | $8.80 | 1 |
| 25 | A00078-14-00 | 3 WAY JOINT+ ADD | $3.50 | 1 |
| 26 | A00046-14-00 | VENT TUBE+ ADD | $8.80 | 1 |
| 27 | A00047-14-00 | BREATHER TUBE+ ADD | $8.80 | 1 |
| 28 | A00012-20-03 | ST SCREW ST5X12+ ADD | $2.00 | 2 |
| 29 | A00049-14-00 | TUBE+ ADD | $8.80 | 1 |
| 30 | A00039-20-02 | PAN HEAD SCREW+ ADD | $2.00 | 8 |
| 32 | A00014-25-00 | PIN+ ADD | $2.00 | 1 |
| 33 | A00015-25-00 | PIN+ ADD | $2.00 | 1 |
| 34 | A00001-22-05 | CLIP NUT M6+ ADD | $2.00 | 2 |
| 36 | A00118-19-01 | FLANGE BOLT+ ADD | $2.00 | 2 |
| 37 | A00119-19-01 | FLANGE BOLT+ ADD | $2.00 | 1 |
| 38 | A00082-14-00 | AIR BOX ASSY+ ADD | $187.30 | 1 |
