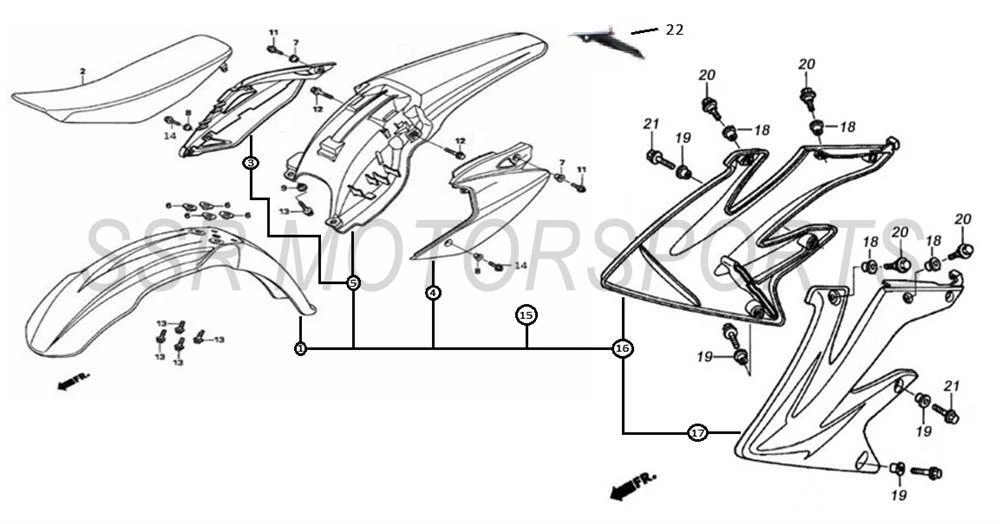

2017 SSR SR250S - Body Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A00056-02-02	FRONT FENDER BLACK+ ADD	$59.50	1
1	A00056-02-18	FRONT FENDER RED+ ADD	$59.50	1
1	A00056-02-12	FRONT FENDER BLUE+ ADD	$59.50	1
1	A00056-02-01	FRONT FENDER WHITE+ ADD	$59.50	1
2	A00057-02-02	SEAT BLACK+ ADD	$140.00	1
3	A00058-02-02	RIGHT REAR NUMBER PLATE BLACK+ ADD	$38.50	1
3	A00058-02-01	RIGHT REAR NUMBER PLATE WHITE+ ADD	$38.50	1
4	A00059-02-02	LEFT REAR NUMBER PLATE BLACK+ ADD	$38.50	1
4	A00059-02-01	LEFT REAR NUMBER PLATE WHITE+ ADD	$38.50	1
5	A00060-02-02	REAR FENDER BLACK+ ADD	$59.50	1
5	A00060-02-18	REAR FENDER RED+ ADD	$59.50	1
5	A00060-02-12	REAR FENDER BLUE+ ADD	$59.50	1
5	A00060-02-01	REAR FENDER WHITE+ ADD	$59.50	1
6	A00061-02-00	WASHER / COLLAR 6.3X25X6+ ADD	$2.00	4
7	A00063-02-00	COLLAR 8.5X18X6+ ADD	$2.00	2
8	A00713-02-00	COLLAR 6.3X14X4.5+ ADD	$2.00	2
9	A00064-02-00	COLLAR 6.3X22X5.8+ ADD	$2.00	2
11	A00041-19-01	FLANGE BOLT M8X30+ ADD	$2.00	2
12	A00001-19-01	FLANGE BOLT M6X30+ ADD	$2.00	2
13	A00114-19-01	FLANGE BOLT M6X20+ ADD	$2.00	6
14	A00445-19-08	CASE FLANGE BOLT M6X12+ ADD	$2.00	2
15	A00940-02-02	COMPLETE PLASTIC KIT BLACK+ ADD	$234.50	1
15	A00940-02-18	COMPLETE PLASTIC KIT RED+ ADD	$234.50	1
15	A00940-02-12	COMPLETE PLASTIC KIT BLUE+ ADD	$234.50	1
15	A00940-02-01	COMPLETE PLASTIC KIT WHITE+ ADD	$234.50	1
16	A00045-02-02	RIGHT RADIATOR SHROUD BLACK+ ADD	$35.00	1
16	A00045-02-18	RIGHT RADIATOR SHROUD RED+ ADD	$35.00	1
16	A00045-02-12	RIGHT RADIATOR SHROUD BLUE+ ADD	$35.00	1
16	A00045-02-01	RIGHT RADIATOR SHROUD WHITE+ ADD	$35.00	1
17	A00046-02-02	LEFT RADIATOR SHROUD BLACK+ ADD	$35.00	1
17	A00046-02-18	LEFT RADIATOR SHROUD RED+ ADD	$35.00	1
17	A00046-02-12	LEFT RADIATOR SHROUD BLUE+ ADD	$35.00	1
17	A00046-02-01	LEFT RADIATOR SHROUD WHITE+ ADD	$35.00	1
18	A00067-02-00	COLLAR 5.5X15X4.5+ ADD	$2.00	4
19	A00073-02-00	COLLAR 6.3X18X5.5+ ADD	$2.00	4
20	A00068-19-08	CASE FLANGE BOLT M5X14+ ADD	$2.00	4
21	A00419-19-08	CASE FLANGE BOLT M6X20+ ADD	$2.00	4
22	A00331-03-00	LED TAILLIGHT KIT+ ADD	$56.00	1
