Controls
All 2017 SSR SR250S schematics

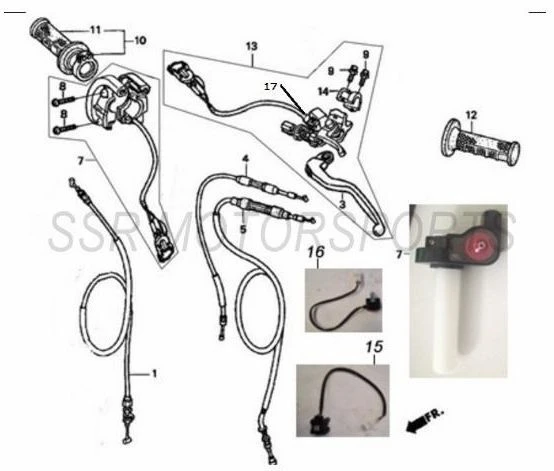

2017 SSR SR250S - Controls Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00516-05-00 | THROTTLE CABLE+ ADD | $21.00 | 1 |
| 1A | A00069-05-00 | THROTTLE CABLE+ ADD | $21.00 | 1 |
| 3 | A00071-05-00 | CLUTCH LEVER+ ADD | $21.00 | 1 |
| 4 | A00072-05-00 | CHOKE CABLE+ ADD | $28.00 | 1 |
| 5 | A00073-05-00 | CLUTCH CABLE+ ADD | $28.00 | 1 |
| 7 | A00518-05-00 | THROTTLE HOUSING ASSY+ ADD | $33.30 | 1 |
| 7A | A00457-05-00 | THROTTLE ASSY W/ TUBE SWR PHB E34+ ADD | $47.30 | 1 |
| 8 | A00023-20-02 | PAN HEAD SCREW M5X14+ ADD | $2.00 | 2 |
| 9 | A00024-19-01 | FLANGE BOLT M6X22+ ADD | $2.00 | 2 |
| 10 | A00519-05-00 | THROTTLE GRIP W/ TUBE ASSY DELLORTO-ITALY+ ADD | $14.00 | 1 |
| 10A | A00109-05-00 | THROTTLE GRIP W/ TUBE ASSY 128X60X25+ ADD | $14.00 | 1 |
| 11 | A00309-05-00 | RIGHT HANDLEBAR GRIP GREY+ ADD | $10.50 | 1 |
| 12 | A00111-05-00 | LEFT HANDLEBAR GRIP GREY+ ADD | $10.50 | 1 |
| 13 | A00079-05-00 | CLUTCH PERCH ASSY+ ADD | $45.50 | 1 |
| 14 | A00080-05-00 | CLUTCH PERCH CLAMP+ ADD | $12.30 | 1 |
| 15 | A00074-08-00 | KILL SWITCH+ ADD | $56.00 | 1 |
| 16 | A00073-08-00 | START SWITCH+ ADD | $56.00 | 1 |
| 17 | A00539-05-00 | CLUTCH LOCKOUT SWITCH CLIP TYPE+ ADD | $12.30 | 1 |
