Crankshaft
All 2017 SSR SR250S schematics

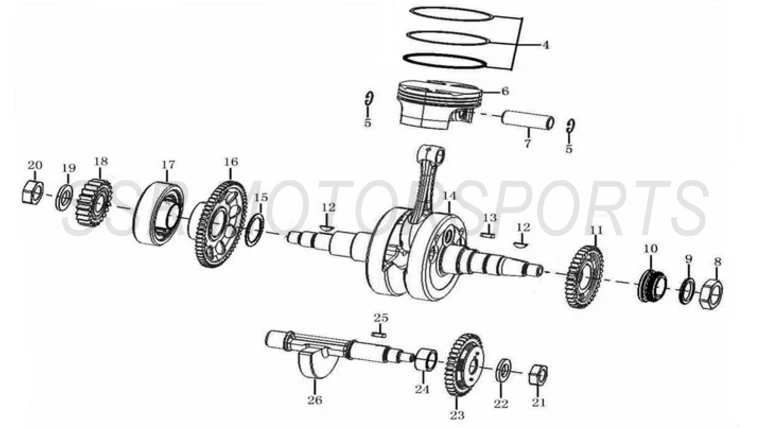

2017 SSR SR250S - Crankshaft Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 4 | A00383-09-00 | PISTON RING SET+ ADD | $56.00 | 1 |
| 5 | A00384-09-00 | PISTON PIN CIRCLIP+ ADD | $2.00 | 2 |
| 6 | A00385-09-00 | PISTON+ ADD | $82.30 | 1 |
| 7 | A00386-09-00 | PISTON PIN+ ADD | $12.30 | 1 |
| 8 | A00016-22-01 | NUT M24x1.0+ ADD | $8.00 | 1 |
| 9 | A00031-21-01 | WASHER 24.2X2.5X32+ ADD | $2.50 | 1 |
| 10 | A00387-09-00 | TIMING CHAIN SPROCKET+ ADD | $26.30 | 1 |
| 11 | A00388-09-00 | DRIVING GEAR 36T+ ADD | $63.00 | 1 |
| 12 | A00389-09-00 | WOODRUFF KEY+ ADD | $2.50 | 2 |
| 13 | A00390-09-00 | SQUARE PIN+ ADD | $2.60 | 1 |
| 14 | A00391-09-00 | CRANKSHAFT ASSY+ ADD | $210.00 | 1 |
| 15 | A00030-21-01 | WASHER 30.2X1X40+ ADD | $2.50 | 1 |
| 16 | A00392-09-00 | STARTER GEAR 58T+ ADD | $82.30 | 1 |
| 17 | A00109-28-01 | STARTER CLUTCH BEARING+ ADD | $59.50 | 1 |
| 18 | A00394-09-00 | PRIMARY DRIVE GEAR 22T+ ADD | $63.00 | 1 |
| 19 | A00029-21-01 | WASHER 18.2X3X31+ ADD | $2.50 | 1 |
| 20 | A00026-22-01 | NUT M18+ ADD | $8.00 | 1 |
| 21 | A00027-22-01 | LOCKNUT M16+ ADD | $4.40 | 1 |
| 22 | A00396-09-00 | DISHED WASHER 16.5X2X27+ ADD | $2.00 | 1 |
| 23 | A00397-09-00 | DRIVEN GEAR+ ADD | $82.30 | 1 |
| 24 | A00398-09-00 | CRANKSHAFT COLLAR+ ADD | $8.00 | 1 |
| 25 | A00399-09-00 | WOODRUFF KEY 4X4X13+ ADD | $2.60 | 1 |
| 26 | A00400-09-00 | BALANCER SHAFT+ ADD | $96.30 | 1 |
