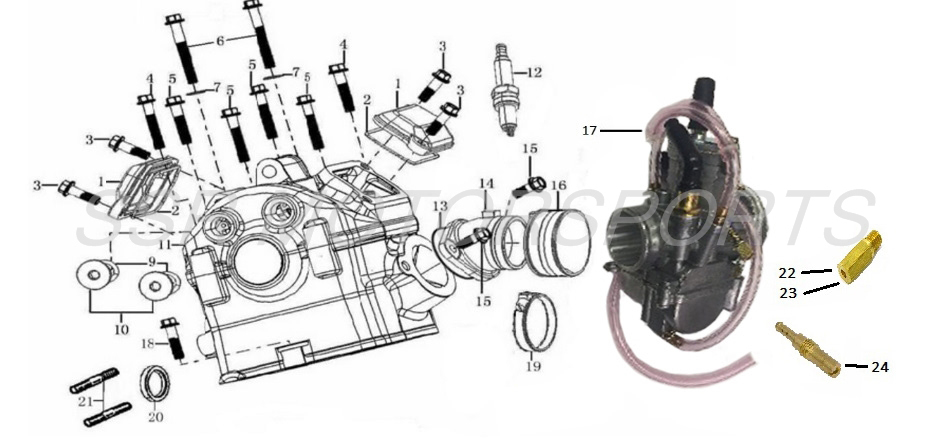

2017 SSR SR250S - Cylinder Head Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A00264-09-00	TAPPET COVER+ ADD	$14.00	2
2	A00084-27-00	O-RING+ ADD	$8.80	2
3	A00419-19-08	CASE FLANGE BOLT M6X20+ ADD	$2.00	4
4	A00425-19-08	CASE FLANGE BOLT M6X35+ ADD	$2.00	2
5	A00001-19-01	FLANGE BOLT M6X30+ ADD	$2.00	4
6	A00429-19-08	CASE FLANGE BOLT M6X60+ ADD	$2.50	2
7	A00038-21-01	COPPER WASHER 6.5×1.5×12+ ADD	$2.00	2
9	A00024-27-00	O-RING 11.8X2.6+ ADD	$2.50	2
10	A00267-09-00	PLUG BOLT M14+ ADD	$4.40	2
11	A00268-09-00	CYLINDER HEAD ASSY HEAD W/ VALVES+ ADD	$532.00	1
12	CPR8EA-9	SPARK PLUG CPR8EA-9+ ADD	$12.30	1
13	A00027-27-00	O-RING 38X3+ ADD	$6.10	1
14	A00296-14-00	INTAKE MANIFOLD+ ADD	$28.00	1
14A	A00269-14-00	INTAKE MANIFOLD+ ADD	$28.00	1
15	A00001-19-03	BOLT M6X16+ ADD	$2.00	2
16	A00270-14-00	INSULATOR CONNECTOR DELLORTO-ITALY+ ADD	$14.00	1
16	A00297-14-00	INSULATOR CONNECTOR SWR PHB E34+ ADD	$14.00	1
17	A00058-12-00	CARBURETOR (DISCONTINUED) REFER TO SR250S PARTS DIAGRAM+ ADD	$423.50	1
17A	A00461-12-00	CARBURETOR NIBBI 34+ ADD	$229.00	1
18	A00421-19-08	CASE FLANGE BOLT M6X25+ ADD	$2.00	1
19	A00273-09-00	INTAKE MANIFOLD CLAMP 40-55+ ADD	$14.00	2
20	A00274-09-00	EXHAUST GASKET+ ADD	$8.80	1
21	A00015-19-04	STUD M8X40+ ADD	$2.50	2
22	A00073-01-01	MAIN JET #125 OPTIONAL+ ADD	$8.80	1
23	A00074-01-00	MAIN JET #135 OPTIONAL+ ADD	$8.80	1
24	A00075-01-00	PILOT JET #48 OPTIONAL+ ADD	$8.80	1
