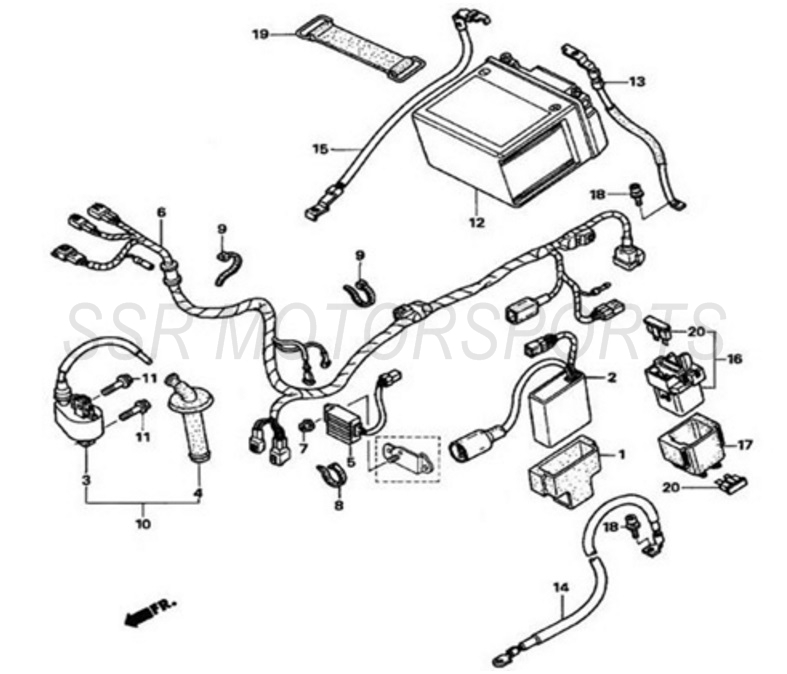

2017 SSR SR250S - Electrical Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00054-08-00 | RUBBER CDI HOLDER+ ADD | $8.80 | 1 |
| 2 | A00055-08-00 | CDI 4P+ ADD | $210.00 | 1 |
| 3 | A00056-08-00 | IGNITION COIL+ ADD | $45.50 | 1 |
| 4 | A00057-08-00 | SPARK PLUG CAP+ ADD | $24.50 | 1 |
| 5 | A00058-08-00 | REGULATOR / RECTIFIER+ ADD | $59.50 | 1 |
| 6 | A00059-08-00 | WIRE HARNESS LX WITH HEADLIGHT+ ADD | $82.30 | 1 |
| 7 | A00001-22-01 | NUT M6+ ADD | $2.00 | 1 |
| 8 | A00006-24-01 | ZIP TIE 3.6X250+ ADD | $2.50 | 1 |
| 9 | A00007-24-01 | ZIP TIE 3.6X150+ ADD | $2.00 | 2 |
| 10 | A00062-08-00 | IGNITION COIL ASSY+ ADD | $68.30 | 1 |
| 11 | A00066-19-01 | FLANGE BOLT M6X18+ ADD | $2.00 | 2 |
| 12 | HJTX4L-FPZ | LITHIUM BATTERY HJTX4L-FPZ+ ADD | $140.00 | 1 |
| 13 | A00064-08-00 | POSITIVE BATTERY CABLE+ ADD | $19.30 | 1 |
| 14 | A00065-08-00 | STARTER MOTOR CABLE+ ADD | $19.30 | 1 |
| 15 | A00068-08-00 | NEGATIVE BATTERY CABLE+ ADD | $19.30 | 1 |
| 16 | A00069-08-00 | STARTER RELAY+ ADD | $47.30 | 1 |
| 17 | A00070-08-00 | STARTER RELAY RUBBER HOLDER+ ADD | $8.80 | 1 |
| 18 | A00043-19-03 | BOLT M5X9+ ADD | $2.00 | 2 |
| 19 | A00071-08-00 | BATTERY STRAP+ ADD | $8.80 | 1 |
| 20 | A00072-08-00 | BLADE FUSE 15A+ ADD | $2.60 | 2 |
