Exhaust System
All 2017 SSR SR250S schematics

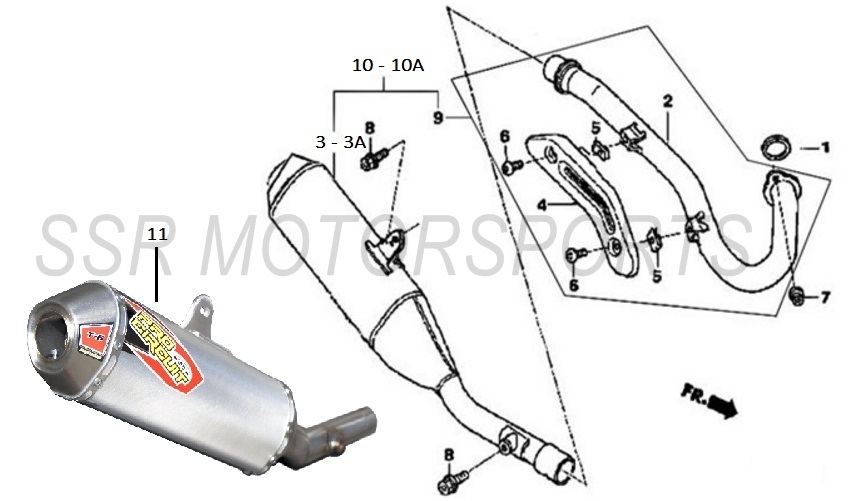

2017 SSR SR250S - Exhaust System Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00029-13-00 | EXHAUST GASKET+ ADD | $8.80 | 1 |
| 2 | A00013-10-00 | HEAD PIPE+ ADD | $92.80 | 1 |
| 3 | A00014-10-00 | MUFFLER ASSY+ ADD | $248.50 | 1 |
| 3A | A00115-10-00 | MUFFLER ASSY CARBON FIBER END CAP+ ADD | $283.50 | 1 |
| 4 | A00015-10-00 | HEAT SHIELD+ ADD | $35.00 | 1 |
| 5 | A00001-22-05 | CLIP NUT M6+ ADD | $2.00 | 2 |
| 6 | A00031-19-01 | FLANGE BOLT M6X12+ ADD | $2.00 | 2 |
| 7 | A00002-22-01 | NUT M8+ ADD | $2.00 | 2 |
| 8 | A00015-19-01 | FLANGE BOLT M8X20 S12+ ADD | $2.00 | 2 |
| 9 | A00016-10-00 | EXHAUST HEAD PIPE ASSY+ ADD | $115.50 | 1 |
| 10 | A00017-10-00 | EXHAUST SYSTEM ASSY ALUMINUM+ ADD | $343.00 | 1 |
| 10A | A00114-10-00 | EXHAUST SYSTEM ASSY CARBON FIBER END CAP+ ADD | $378.00 | 1 |
| 11 | A00073-01-00 | PRO CIRCUIT T-6 SLIP-ON MUFFLER W/ SPARK ARRESTOR OPTIONAL+ ADD | $349.00 | 1 |
| 12 | A00301-13-00 | MUFFLER PACKING GASKET+ ADD | $12.30 | 1 |
