Footpeg / Stand
All 2017 SSR SR250S schematics

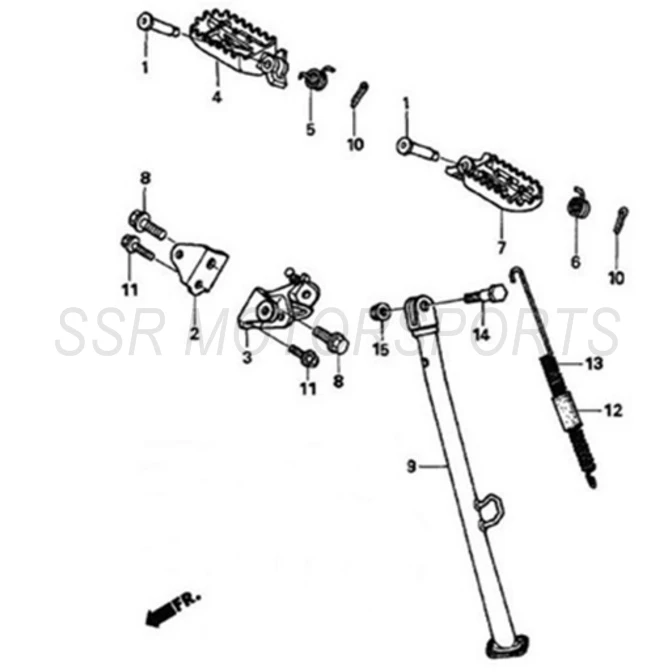

2017 SSR SR250S - Footpeg / Stand Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00081-05-00 | FOOTPEG PIN+ ADD | $2.60 | 2 |
| 2 | A00082-05-00 | RIGHT FOOTPEG MOUNTING BRACKET+ ADD | $21.00 | 1 |
| 3 | A00083-05-00 | LEFT FOOTPEG MOUNTING BRACKET+ ADD | $56.00 | 1 |
| 4 | A00084-05-00 | RIGHT FOOTPEG+ ADD | $56.00 | 1 |
| 4 | A00521-05-00 | RIGHT FOOTPEG TWO-PIECE+ ADD | $42.00 | 1 |
| 5 | A00085-05-00 | RIGHT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 6 | A00086-05-00 | LEFT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 7 | A00087-05-00 | LEFT FOOTPEG+ ADD | $56.00 | 1 |
| 7 | A00522-05-00 | LEFT FOOTPEG TWO-PIECE+ ADD | $42.00 | 1 |
| 8 | A00056-19-03 | HEX BOLT M12X30+ ADD | $2.50 | 2 |
| 9 | A00099-05-00 | SIDE STAND+ ADD | $99.80 | 1 |
| 10 | A00006-25-01 | COTTER PIN 2.0X15+ ADD | $2.00 | 2 |
| 11 | A00041-19-01 | FLANGE BOLT M8X30+ ADD | $2.00 | 2 |
| 12 | A00100-05-00 | SIDE STAND SPRING RUBBER COVER+ ADD | $2.60 | 1 |
| 13 | A00101-05-00 | OUTER SIDE STAND SPRING+ ADD | $8.00 | 1 |
| 13A | A00103-05-00 | INNER SIDE STAND SPRING+ ADD | $4.40 | 1 |
| 14 | A00115-19-07 | SIDE STAND BOLT M10X38+ ADD | $3.50 | 1 |
| 15 | A00004-22-03 | FLANGE NUT M10x1.25+ ADD | $2.00 | 1 |
