Frame
All 2017 SSR SR250S schematics

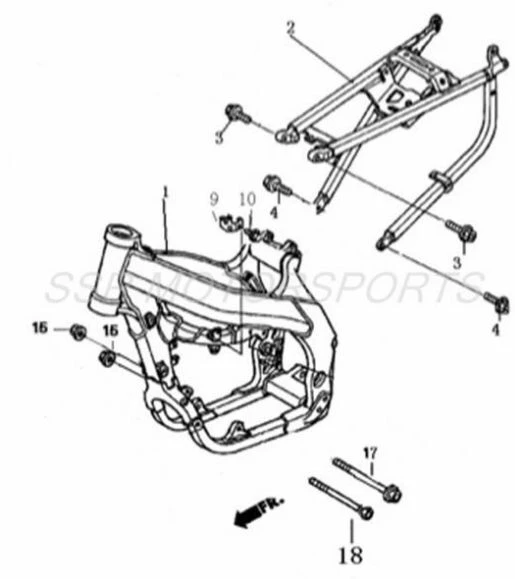

2017 SSR SR250S - Frame Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00026-11-00 | FRAME *OVERSIZE/WEIGHT*+ ADD | $1,650.00 | 1 |
| 2 | A00031-11-00 | SUBFRAME+ ADD | $210.00 | 1 |
| 3 | A00041-19-01 | FLANGE BOLT M8X30+ ADD | $2.00 | 2 |
| 4 | A00079-19-01 | FLANGE BOLT M10x30+ ADD | $2.50 | 2 |
| 9 | A00030-11-00 | STAY+ ADD | $2.60 | 1 |
| 10 | A00002-19-01 | FLANGE BOLT M6X16+ ADD | $2.00 | 3 |
| 15 | A00004-22-04 | FLANGE NUT M10+ ADD | $2.00 | 2 |
| 17 | A00069-19-01 | FLANGE BOLT M10×135×1.25+ ADD | $4.40 | 1 |
| 18 | A00480-19-01 | FLANGE BOLT M10×145+ ADD | $4.40 | 1 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact part-number matches verified in SSR parts catalogs.
