Front Brake System
All 2017 SSR SR250S schematics

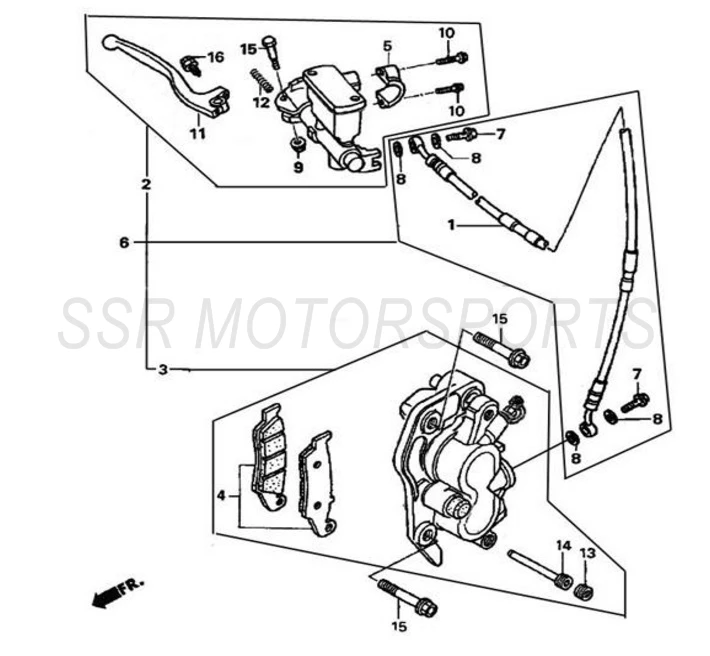

2017 SSR SR250S - Front Brake System Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00050-04-00 | FRONT BRAKE HOSE+ ADD | $45.50 | 1 |
| 2 | A00051-04-00 | FRONT BRAKE MASTER CYLINDER ASSY SILVER+ ADD | $68.30 | 1 |
| 2 | A00748-04-00 | FRONT BRAKE MASTER CYLINDER ASSY BLACK+ ADD | $68.30 | 1 |
| 3 | A00052-04-00 | FRONT CALIPER ASSY+ ADD | $92.80 | 1 |
| 4 | A00053-04-00 | FRONT BRAKE PAD SET+ ADD | $49.00 | 1 |
| 5 | A00054-04-00 | MASTER CYLINER CLAMP+ ADD | $12.30 | 1 |
| 6 | A00055-04-00 | FRONT BRAKE ASSY+ ADD | $210.00 | 1 |
| 7 | A00056-04-00 | BANJO BOLT+ ADD | $2.50 | 2 |
| 8 | A00025-04-00 | SEALING WASHER+ ADD | $2.00 | 4 |
| 9 | A00002-22-01 | NUT M8+ ADD | $2.00 | 1 |
| 10 | A00113-19-01 | FLANGE BOLT+ ADD | $2.00 | 2 |
| 11 | A00057-04-00 | FRONT BRAKE LEVER SPRING TYPE+ ADD | $21.00 | 1 |
| 11 | A00057-04-0A | FRONT BRAKE LEVER NON SPRING TYPE+ ADD | $21.00 | 1 |
| 12 | A00058-04-00 | BRAKE LEVER SPRING+ ADD | $2.00 | 1 |
| 13 | A00059-04-00 | BRAKE PIN PLUG+ ADD | $2.00 | 1 |
| 14 | A00076-04-01 | FRONT BRAKE PAD PIN+ ADD | $2.50 | 1 |
| 15 | A00014-19-01 | FLANGE BOLT M8X40+ ADD | $2.50 | 2 |
| 16 | A00062-04-00 | LEVER ADJUSTER BOLT+ ADD | $2.00 | 1 |
