Front Suspension
All 2017 SSR SR250S schematics

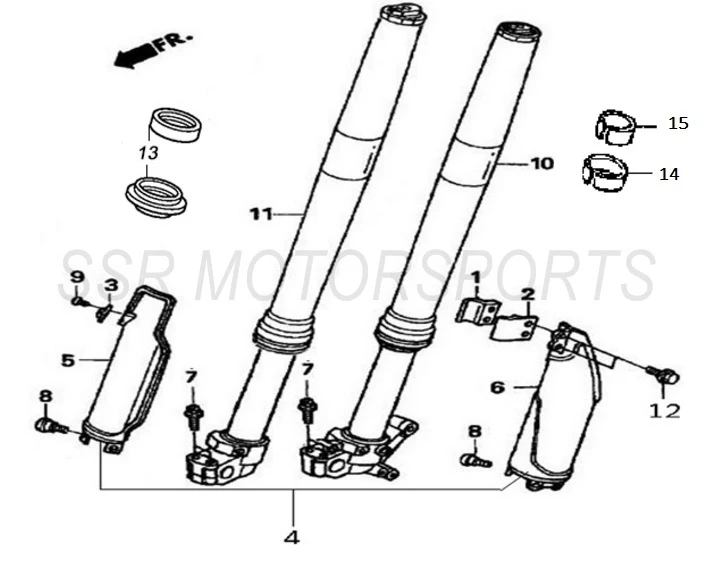

2017 SSR SR250S - Front Suspension Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00078-16-00 | FRONT BRAKE HOSE HOLDER A+ ADD | $2.60 | 1 |
| 2 | A00079-16-00 | FRONT BRAKE HOSE HOLDER B+ ADD | $2.60 | 1 |
| 3 | A00055-16-00 | SPEEDOMETER WIRE RETAINER+ ADD | $2.00 | 1 |
| 4 | A00053-02-01 | FORK PROTECTOR SET+ ADD | $68.30 | 1 |
| 5 | A00088-02-01 | LEFT FORK PROTECTOR WHITE+ ADD | $38.50 | 1 |
| 6 | A00089-02-01 | RIGHT FORK PROTECTOR WHITE+ ADD | $38.50 | 1 |
| 7 | A00014-19-01 | FLANGE BOLT M8X40+ ADD | $2.50 | 4 |
| 8 | A00008-19-07 | STEPPED ALLEN BOLT M6X12+ ADD | $2.00 | 6 |
| 9 | A00111-19-01 | ST SCREW M4X10+ ADD | $2.00 | 1 |
| 10 | A00075-16-00 | RIGHT FORK ASSY+ ADD | $349.00 | 1 |
| 11 | A00077-16-00 | LEFT FORK ASSY+ ADD | $349.00 | 1 |
| 12 | A00002-19-01 | FLANGE BOLT M6X16+ ADD | $2.00 | 2 |
| 13 | A00687-16-00 | FORK/DUST SEAL SET 48X57.8X9.5/48X58X14+ ADD | $35.00 | 2 |
| 14 | A00692-16-00 | GUIDE BUSHING+ ADD | $8.80 | 2 |
| 15 | A00693-16-00 | SLIDER BUSHING+ ADD | $8.80 | 2 |
