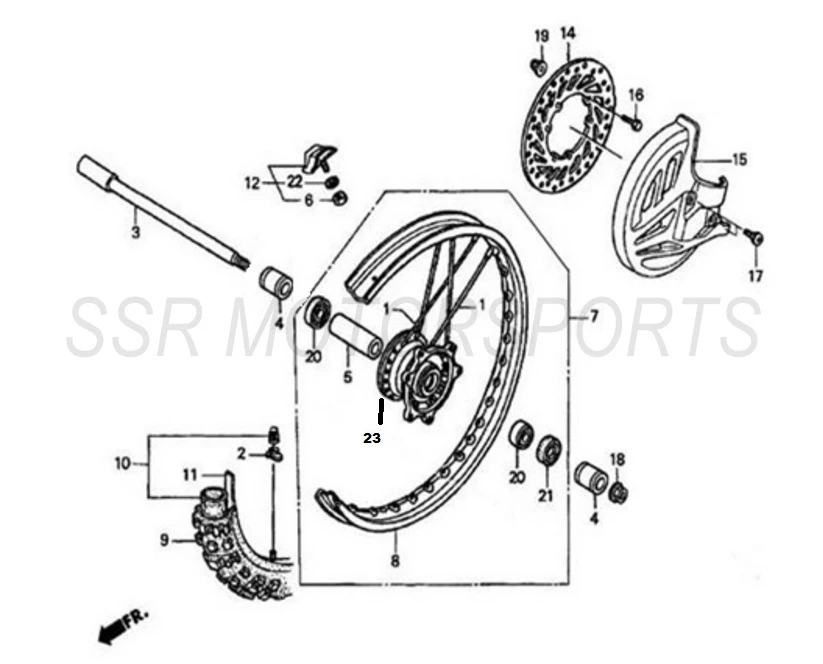

2017 SSR SR250S - Front Wheel Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A00054-18-00	FRONT SPOKE W/ NIPPLE 21+ ADD	$3.50	36
2	A00055-18-00	VALVE STEM RUBBER HOLDER+ ADD	$6.10	1
3	A00056-18-00	FRONT WHEEL AXLE M16X1.5X230+ ADD	$38.50	1
4	A00057-18-00	FRONT LEFT WHEEL SPACER 20X27X25.5+ ADD	$15.80	1
4-1	A00126-18-00	FRONT RIGHT WHEEL SPACER 20X27X24.5+ ADD	$15.80	1
5	A00058-18-00	FRONT WHEEL BEARING SPACER 20X26X71+ ADD	$33.30	1
6	A00002-22-01	NUT M8+ ADD	$2.00	1
7	A00059-18-01	FRONT WHEEL ASSY 1.60-21 SILVER HUB / BLACK RIM+ ADD	$554.80	1
8	A00060-18-02	FRONT RIM BLACK 1.60-21 BLACK+ ADD	$234.50	1
9	A00061-18-00	FRONT TIRE 80/100-21 KT9662-01 51W+ ADD	$150.50	1
10	A00064-18-00	INNERTUBE 3.00-21 (80/100-21)+ ADD	$19.30	1
11	A00046-18-00	RIM STRIP 21"+ ADD	$8.00	1
12	A00065-18-00	RIM LOCK 1.6+ ADD	$28.00	1
14	A00556-04-00	FRONT BRAKE ROTOR 240X3+ ADD	$59.50	1
15	A00054-02-01	FRONT BRAKE ROTOR GUARD WHITE+ ADD	$35.00	1
16	A00006-19-01	FLANGE BOLT M6X20+ ADD	$2.00	6
17	A00042-19-03	BUTTON HEAD ALLEN BOLT M6x15+ ADD	$2.00	2
18	A00007-22-03	FLANGE LOCKNUT M16+ ADD	$4.40	1
19	A00002-22-34	FLANGE LOCKNUT M6+ ADD	$2.00	6
20	A00038-28-00	BEARING 6904-2RS+ ADD	$35.00	2
21	A00011-26-00	SEAL 26X37X7+ ADD	$3.50	2
22	A00023-21-01	WASHER 8.4X16X1.6+ ADD	$2.00	1
23	A00519-18-00	FRONT HUB+ ADD	$352.50	1
