Fuel Tank
All 2017 SSR SR250S schematics

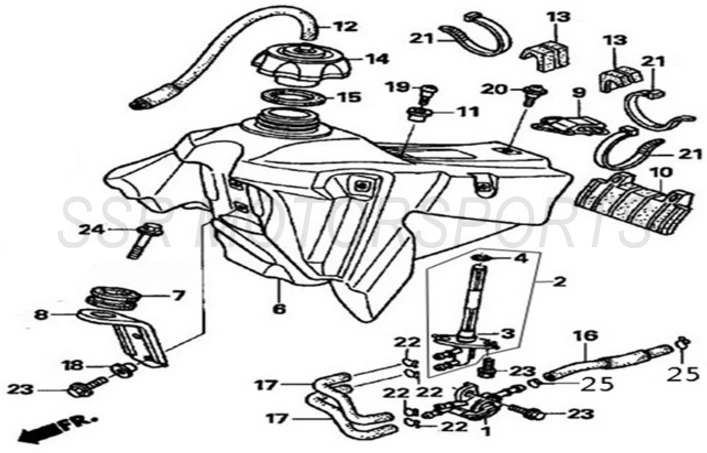

2017 SSR SR250S - Fuel Tank Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00080-12-00 | FUEL PETCOCK+ ADD | $24.50 | 1 |
| 2 | A00081-12-00 | FUEL PICKUP ASSY W/ SCREEN+ ADD | $28.00 | 1 |
| 3 | A00061-12-00 | FUEL PICKUP SCREEN+ ADD | $14.00 | 1 |
| 4 | A00086-27-00 | O-RING+ ADD | $2.00 | 1 |
| 6 | A00063-12-02 | FUEL TANK BLACK+ ADD | $169.00 | 1 |
| 7 | A00377-12-00 | FRONT FUEL TANK RUBBER DAMPER+ ADD | $2.60 | 1 |
| 8 | A00378-12-00 | FRONT FUEL TANK STAY+ ADD | $8.00 | 1 |
| 9 | A00066-12-00 | FUEL TANK STRAP+ ADD | $8.80 | 1 |
| 10 | A00067-12-00 | REAR RUBBER FUEL TANK DAMPER+ ADD | $8.00 | 1 |
| 11 | A00090-12-00 | SEAT COLLAR PLASTIC+ ADD | $2.00 | 1 |
| 12 | A00069-12-00 | FUEL TANK VENT HOSE 4X8X300+ ADD | $12.30 | 1 |
| 13 | A00070-12-00 | FUEL TANK RUBBER DAMPER+ ADD | $8.80 | 4 |
| 14 | A00071-12-00 | FUEL TANK CAP+ ADD | $15.80 | 1 |
| 15 | A00072-12-00 | FUEL TANK CAP GASKET+ ADD | $8.00 | 1 |
| 16 | A00073-12-00 | FUEL HOSE A 7.3X12.5X25+ ADD | $19.30 | 1 |
| 17 | A00074-12-00 | FUEL HOSE B 7X12+ ADD | $8.80 | 2 |
| 18 | A00097-12-00 | COLLAR 6.3X16X6.5+ ADD | $2.00 | 1 |
| 19 | A00108-19-03 | BOLT+ ADD | $2.00 | 1 |
| 20 | A00109-19-03 | BOLT+ ADD | $2.00 | 1 |
| 21 | A00006-24-01 | ZIP TIE 3.6X250+ ADD | $2.50 | 4 |
| 22 | A00031-24-02 | HOSE CLAMP+ ADD | $2.00 | 4 |
| 23 | A00002-19-01 | FLANGE BOLT M6X16+ ADD | $2.00 | 5 |
| 24 | A00001-19-01 | FLANGE BOLT M6X30+ ADD | $2.00 | 1 |
| 25 | A00063-24-02 | HOSE CLAMP+ ADD | $2.00 | 2 |
