Gearshift Drum
All 2017 SSR SR250S schematics

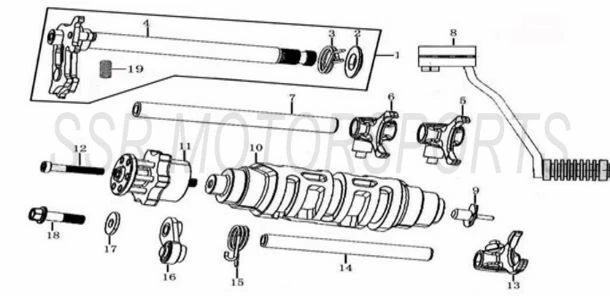

2017 SSR SR250S - Gearshift Drum Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00413-09-00 | GEARSHIFT SHAFT ASSY+ ADD | $68.30 | 1 |
| 2 | A00414-09-00 | SLEEVE+ ADD | $4.40 | 1 |
| 3 | A00415-09-00 | RETURN SPRING+ ADD | $4.40 | 1 |
| 4 | A00416-09-00 | GEARSHIFT SHAFT+ ADD | $59.50 | 1 |
| 5 | A00417-09-00 | RIGHT SHIFT FORK+ ADD | $26.30 | 1 |
| 6 | A00418-09-00 | LEFT SHIFT FORK+ ADD | $26.30 | 1 |
| 7 | A00419-09-00 | SHIFT FORK SHAFT+ ADD | $14.00 | 1 |
| 8 | A00420-09-00 | GEARSHIFT LEVER+ ADD | $85.80 | 1 |
| 9 | A00421-09-00 | GEAR INDICATOR CONTACT+ ADD | $4.40 | 1 |
| 10 | A00422-09-00 | GEARSHIFT DRUM+ ADD | $129.50 | 1 |
| 11 | A00423-09-00 | GEAR SHIFT DRUM SELECTOR+ ADD | $68.30 | 1 |
| 12 | A00012-19-02 | ALLEN BOLT M6X35+ ADD | $2.00 | 1 |
| 13 | A00424-09-00 | CENTER SHIFT FORK+ ADD | $28.00 | 1 |
| 14 | A00425-09-00 | GEARSHIFT FORK SHAFT+ ADD | $10.50 | 1 |
| 15 | A00426-09-00 | LOCATING PLATE SPRING+ ADD | $2.60 | 1 |
| 16 | A00427-09-00 | LOCATING PLATE ASSY+ ADD | $14.00 | 1 |
| 17 | A00025-21-01 | WASHER 6.5X1.5X18+ ADD | $2.00 | 1 |
| 18 | A00006-19-01 | FLANGE BOLT M6X20+ ADD | $2.00 | 1 |
| 19 | A00428-09-00 | GEARSHIFT PLATE SPRING+ ADD | $2.50 | 1 |
