Handlebar Components
All 2017 SSR SR250S schematics

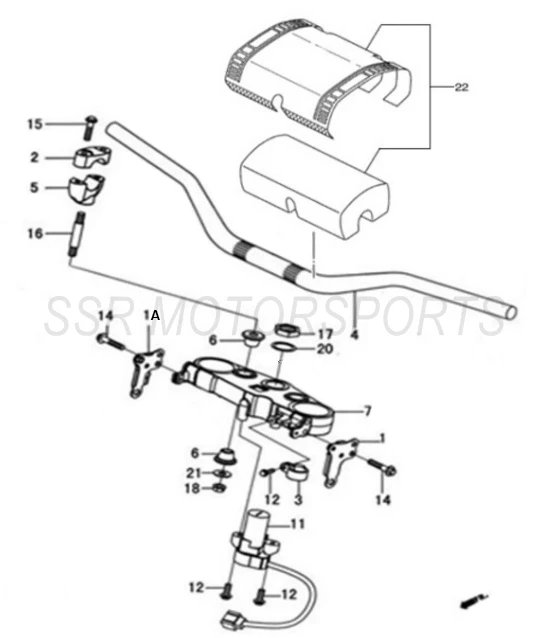

2017 SSR SR250S - Handlebar Components Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00124-05-00 | LEFT HEADLIGHT STAY+ ADD | $8.80 | 1 |
| 1A | A00125-05-00 | RIGHT HEADLIGHT STAY+ ADD | $8.80 | 1 |
| 2 | A00062-05-00 | UPPER HANDLEBAR CLAMP+ ADD | $28.00 | 2 |
| 3 | A00123-05-00 | UPPER FRONT BRAKE HOSE GUIDE+ ADD | $2.60 | 1 |
| 4 | A00064-05-00 | HANDLEBAR+ ADD | $176.80 | 1 |
| 5 | A00065-05-00 | LOWER HANDLEBAR CLAMP+ ADD | $28.00 | 2 |
| 6 | A00066-05-00 | RUBBER HANDLEBAR DAMPER+ ADD | $3.50 | 4 |
| 7 | A00067-05-00 | UPPER TRIPLE CLAMP+ ADD | $129.50 | 1 |
| 11 | A00062-08-01 | IGNITION SWITCH W/ 2 KEYS+ ADD | $59.50 | 1 |
| 12 | A00007-19-03 | BOLT M6X18+ ADD | $2.00 | 1 |
| 14 | A00014-19-01 | FLANGE BOLT M8X40+ ADD | $2.50 | 4 |
| 15 | A00007-19-01 | FLANGE BOLT M8X25+ ADD | $2.00 | 4 |
| 16 | A00120-19-04 | STUD M10+ ADD | $8.00 | 2 |
| 17 | A00345-22-01 | STEERING STEM NUT M26+ ADD | $8.00 | 1 |
| 18 | A00014-22-01 | NUT M10×1.25+ ADD | $2.00 | 2 |
| 20 | A00041-21-01 | WASHER 26.5X35X1+ ADD | $4.40 | 1 |
| 21 | A00002-21-01 | WASHER M10+ ADD | $2.00 | 1 |
| 22 | A00444-05-00 | HANDLEBAR PAD WITH COVER+ ADD | $28.00 | 1 |
