Headlight / Front Number Plate
All 2017 SSR SR250S schematics

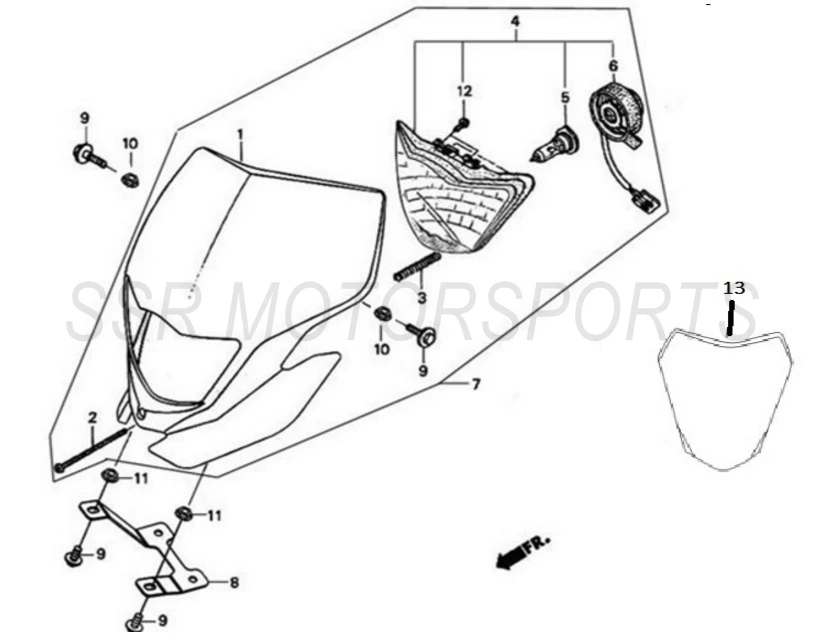

2017 SSR SR250S - Headlight / Front Number Plate Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00091-02-01 | HEADLIGHT SHROUD WHITE+ ADD | $45.50 | 1 |
| 2 | A00040-20-02 | HEADLIGHT ADJUSTER SCREW M4X55+ ADD | $2.00 | 1 |
| 3 | A00291-03-00 | HEADLIGHT ADJUSTER SPRING+ ADD | $2.60 | 1 |
| 4 | A00292-03-00 | HEADLIGHT ASSY+ ADD | $52.50 | 1 |
| 5 | A00293-03-00 | HEADLIGHT BULB HS1- 12V 35/35W+ ADD | $12.30 | 1 |
| 6 | A00294-03-00 | HEADLIGHT BULB SOCKET+ ADD | $12.30 | 1 |
| 7 | A00295-03-00 | HEADLIGHT W/ # PLATE ASSY+ ADD | $106.80 | 1 |
| 8 | A00296-03-00 | HEADLIGHT BRACKET+ ADD | $14.00 | 2 |
| 9 | A00002-19-01 | FLANGE BOLT M6X16+ ADD | $2.00 | 4 |
| 11 | A00001-22-01 | NUT M6+ ADD | $2.00 | 2 |
| 12 | A00089-19-00 | SCREW+ ADD | $2.00 | 2 |
| 13 | A00857-02-01 | FRONT NUMBER PLATE WHITE+ ADD | $38.50 | 1 |
