All 2017 SSR SR250S schematics

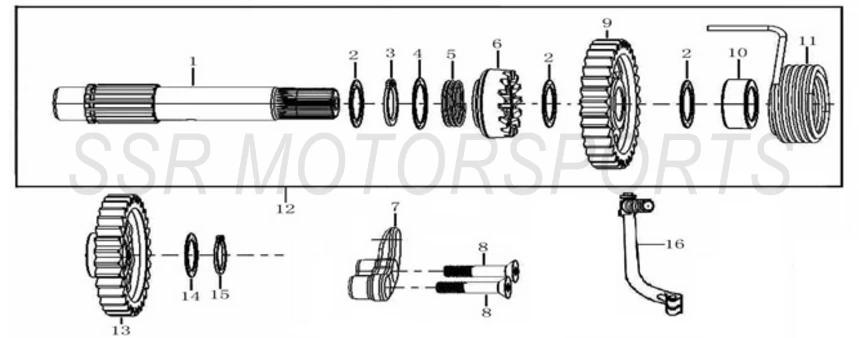

2017 SSR SR250S - Kickstarter Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00401-09-00 | KICKSTART SHAFT+ ADD | $52.50 | 1 |
| 2 | A00028-21-01 | WASHER 18.5X0.5X26+ ADD | $2.50 | 3 |
| 3 | A00010-24-07 | CIRCLIP 21+ ADD | $2.00 | 1 |
| 4 | A00027-21-01 | WASHER 21.7X0.5X29.5+ ADD | $2.50 | 1 |
| 5 | A00403-09-00 | KICK STARTER SPRING+ ADD | $2.60 | 1 |
| 6 | A00404-09-00 | STARTING RATCHET+ ADD | $59.50 | 1 |
| 7 | A00405-09-00 | GUIDE PLATE+ ADD | $8.80 | 1 |
| 8 | A00002-20-05 | CS SCREW M6X25+ ADD | $2.00 | 2 |
| 9 | A00406-09-00 | KICK STARTER GEAR 33T+ ADD | $68.30 | 1 |
| 10 | A00407-09-00 | KICK START COLLAR+ ADD | $8.80 | 1 |
| 11 | A00408-09-00 | RETURN SPRING+ ADD | $4.40 | 1 |
| 12 | A00409-09-00 | KICKSTARTER GEAR ASSY 33T+ ADD | $187.30 | 1 |
| 13 | A00410-09-00 | IDLER GEAR 31T+ ADD | $28.00 | 1 |
| 14 | A00026-21-01 | WASHER 17.1X0.5X26+ ADD | $2.00 | 1 |
| 15 | A00001-24-07 | CIRCLIP 17+ ADD | $2.00 | 1 |
| 16 | A00412-09-00 | KICK STARTER LEVER+ ADD | $106.80 | 1 |
