Left Crankcase Cover
All 2017 SSR SR250S schematics

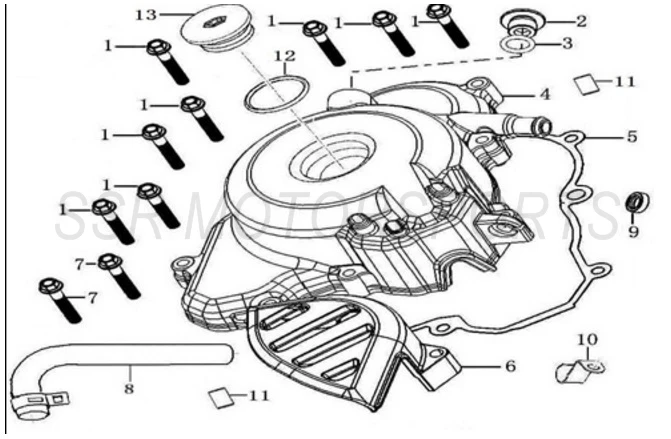

2017 SSR SR250S - Left Crankcase Cover Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00425-19-08 | CASE FLANGE BOLT M6X35+ ADD | $2.00 | 8 |
| 2 | A00315-09-00 | TIMING PLUG M14X1+ ADD | $8.00 | 1 |
| 3 | A00024-27-00 | O-RING 11.8X2.6+ ADD | $2.50 | 1 |
| 4 | A00317-09-00 | STATOR COVER+ ADD | $129.50 | 1 |
| 5 | A00028-13-00 | STATOR COVER GASKET+ ADD | $42.00 | 1 |
| 6 | A00318-09-00 | FRONT SPROCKET COVER+ ADD | $21.00 | 1 |
| 7 | A00423-19-08 | CASE FLANGE BOLT M6X30+ ADD | $2.00 | 2 |
| 8 | A00319-09-00 | BREATHER TUBE+ ADD | $10.50 | 1 |
| 9 | A00016-26-00 | OIL SEAL 10X18X6+ ADD | $12.30 | 1 |
| 10 | A00321-09-00 | CARB DRAIN/VENT RETAINER+ ADD | $2.60 | 1 |
| 11 | A00010-23-00 | DOWEL PIN 9X13+ ADD | $2.00 | 2 |
| 12 | A00023-27-00 | O-RING 22.5X3.55+ ADD | $8.00 | 1 |
| 13 | A00323-09-00 | CRANKSHAFT PLUG+ ADD | $12.30 | 1 |
