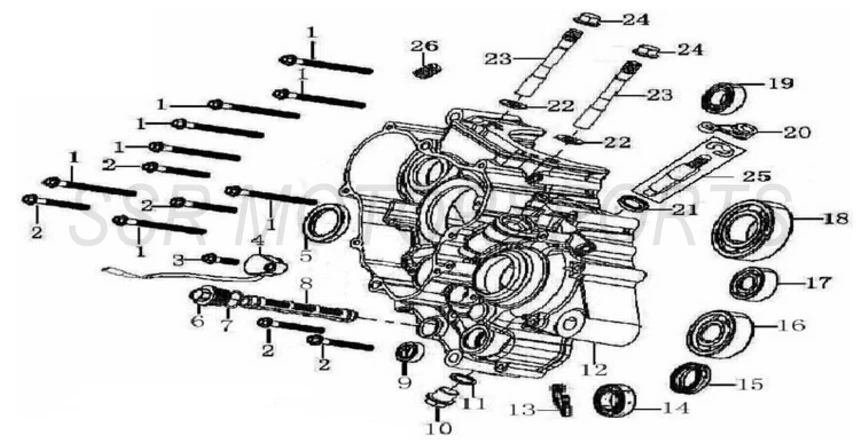

2017 SSR SR250S - Left Crankcase Half Parts Diagram

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A00430-19-08	CASE FLANGE BOLT M6X65+ ADD	$2.50	8
2	A00427-19-08	CASE FLANGE BOLT M6X45+ ADD	$2.00	5
3	A00419-19-08	CASE FLANGE BOLT M6X20+ ADD	$2.00	1
4	A00066-08-00	GEAR POSITION SENSOR+ ADD	$68.30	1
5	A00017-26-00	OIL SEAL 32X47X6+ ADD	$10.50	1
6	A00350-09-00	OIL FILTER SCREEN COVER+ ADD	$8.80	1
7	A00022-27-00	O-RING 17.5X1.8+ ADD	$2.00	1
8	A00373-09-00	OIL FILTER STRAINER METAL MESH+ ADD	$14.00	1
9	A00018-26-00	OIL SEAL 15X25X5+ ADD	$8.00	1
10	A00354-09-00	OIL DRAIN PLUG+ ADD	$14.00	1
11	A00013-21-04	CRUSH WASHER 14X20X1.5+ ADD	$2.00	1
12	A00356-09-00	LEFT CRANKCASE HALF+ ADD	$224.00	1
13	A00009-24-07	CIRCLIP 28+ ADD	$2.00	1
14	A00026-28-00	BEARING 6902+ ADD	$12.30	1
15	A00027-28-00	BEARING 6805+ ADD	$19.30	1
16	A00032-28-01	BEARING 63/22/P5/16+ ADD	$38.50	1
17	A00028-28-00	BEARING 6203/P63+ ADD	$12.30	1
18	A00034-28-00	BEARING QSTM6207+ ADD	$59.50	1
19	A00035-28-00	BEARING 6004CMNSK+ ADD	$12.30	1
20	A00364-09-00	CLUTCH RELEASE ARM+ ADD	$21.00	1
21	A00019-26-00	OIL SEAL 14X22X5+ ADD	$4.40	1
22	A00032-21-01	WASHER 10.5X2X20+ ADD	$2.00	2
23	A00116-19-04	CYLINDER STUD+ ADD	$8.00	2
24	A00004-22-03	FLANGE NUT M10x1.25+ ADD	$2.00	2
25	A00366-09-00	CLUTCH ACTUATOR ROD W/ CIRCLIP+ ADD	$26.30	1
26	A00367-09-00	OIL NOZZLE+ ADD	$4.40	1
