Lower Triple Clamp
All 2017 SSR SR250S schematics

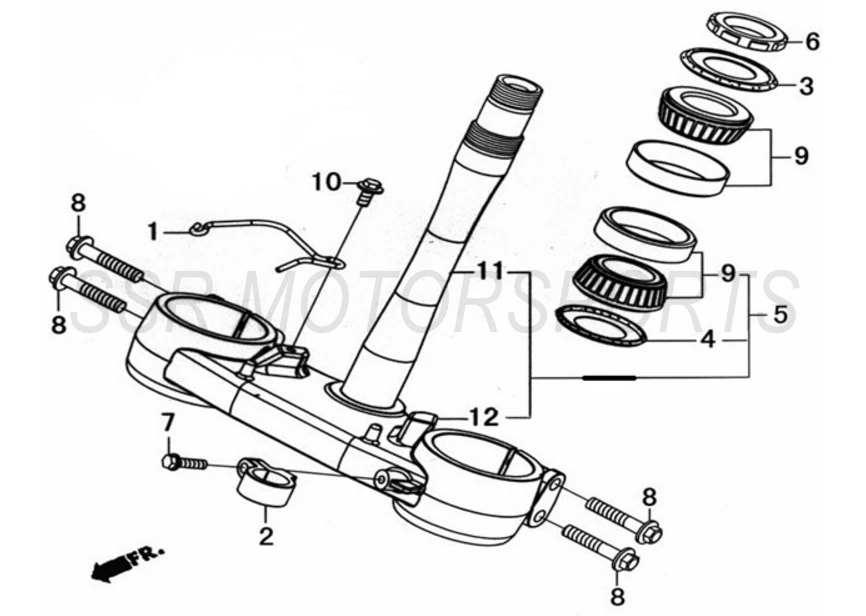

2017 SSR SR250S - Lower Triple Clamp Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00361-15-00 | STAY+ ADD | $2.60 | 1 |
| 2 | A00063-05-00 | FRONT BRAKE HOSE GUIDE+ ADD | $2.60 | 1 |
| 3 | A00033-15-00 | UPPER DUST SEAL+ ADD | $8.00 | 1 |
| 4 | A00034-15-00 | LOWER DUST SEAL+ ADD | $8.00 | 1 |
| 5 | A00035-15-00 | LOWER TRIPLE CLAMP W/ STEM + BEARING ASSY+ ADD | $282.50 | 1 |
| 6 | A00036-15-01 | STEERING STEM NUT M30X1+ ADD | $8.80 | 1 |
| 7 | A00066-19-01 | FLANGE BOLT M6X18+ ADD | $2.00 | 1 |
| 8 | A00016-19-01 | FLANGE BOLT M8x45+ ADD | $2.50 | 4 |
| 9 | A00037-15-00 | BEARING SET TR0627+ ADD | $42.00 | 2 |
| 10 | A00031-19-01 | FLANGE BOLT M6X12+ ADD | $2.00 | 2 |
| 11 | A00038-15-00 | STEERING STEM+ ADD | $82.30 | 1 |
| 12 | A00039-15-00 | LOWER TRIPLE CLAMP+ ADD | $140.00 | 1 |
