Oil Pump
All 2017 SSR SR250S schematics

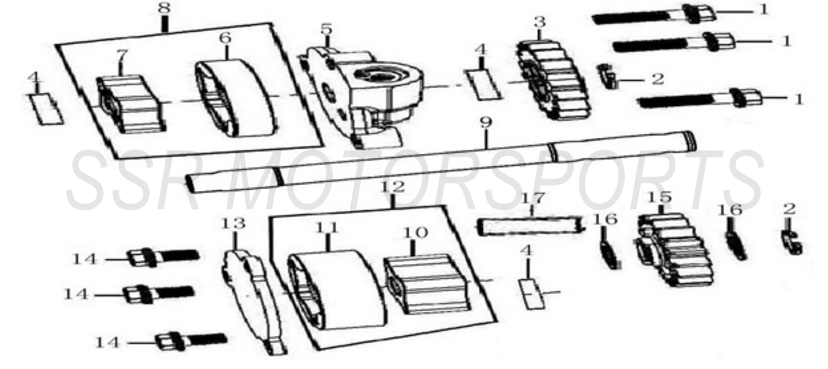

2017 SSR SR250S - Oil Pump Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00067-19-01 | FLANGE BOLT M5X18+ ADD | $2.00 | 3 |
| 2 | A00004-24-07 | CIRCLIP 10+ ADD | $2.50 | 2 |
| 3 | A00336-09-00 | OIL PUMP GEAR 18T+ ADD | $14.00 | 1 |
| 4 | A00003-25-02 | PIN 4X15.8+ ADD | $2.00 | 3 |
| 5 | A00337-09-00 | OIL PUMP COVER+ ADD | $47.30 | 1 |
| 6 | A00338-09-00 | OIL PUMP A OUTER ROTOR+ ADD | $14.00 | 1 |
| 7 | A00339-09-00 | OIL PUMP A INNER ROTOR+ ADD | $12.30 | 1 |
| 8 | A00340-09-00 | OIL PUMP ROTOR SET A+ ADD | $31.50 | 1 |
| 9 | A00341-09-00 | OIL PUMP SHAFT+ ADD | $21.00 | 1 |
| 10 | A00342-09-00 | OIL PUMP B INNER ROTOR+ ADD | $12.30 | 1 |
| 11 | A00343-09-00 | OIL PUMP B OUTER ROTOR+ ADD | $14.00 | 1 |
| 12 | A00344-09-00 | OIL PUMP ROTOR SET B+ ADD | $49.00 | 1 |
| 13 | A00345-09-00 | OIL PUMP COVER+ ADD | $15.80 | 1 |
| 14 | A00065-19-01 | HEX BOLT M5X12+ ADD | $2.00 | 3 |
| 15 | A00346-09-00 | OIL PUMP GEAR 17T+ ADD | $12.30 | 1 |
| 16 | A00033-21-01 | WASHER 10.2X0.5X15+ ADD | $2.00 | 2 |
| 17 | A00347-09-00 | OIL PUMP GEAR SHAFT+ ADD | $8.80 | 1 |
