Radiator
All 2017 SSR SR250S schematics

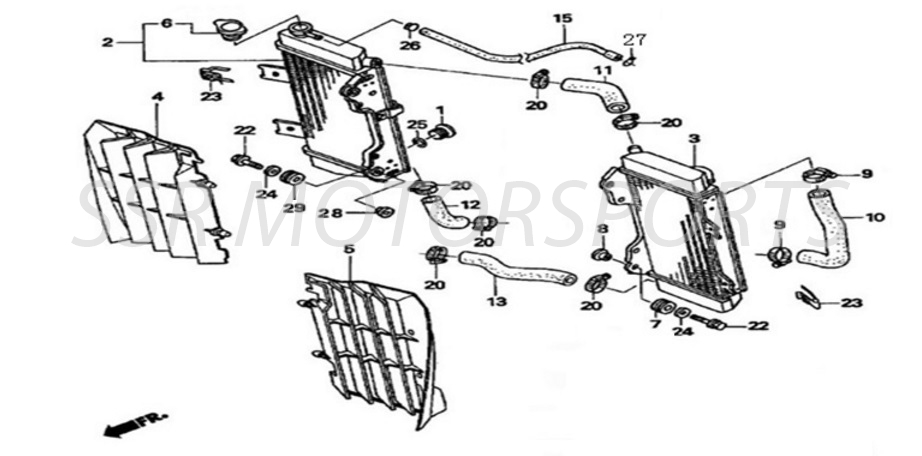

2017 SSR SR250S - Radiator Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00010-06-00 | RADIATOR DRAIN PLUG M12x1.25+ ADD | $3.50 | 1 |
| 2 | A00011-06-00 | RIGHT RADIATOR+ ADD | $140.00 | 1 |
| 3 | A00012-06-00 | LEFT RADIATOR+ ADD | $140.00 | 1 |
| 4 | A00051-02-01 | RIGHT RADIATOR GRILLE WHITE+ ADD | $21.00 | 1 |
| 5 | A00052-02-01 | LEFT RADIATOR GRILLE WHITE+ ADD | $21.00 | 1 |
| 6 | A00025-06-00 | RADIATOR CAP+ ADD | $8.80 | 1 |
| 7 | A00014-06-00 | RUBBER GROMMET+ ADD | $4.40 | 4 |
| 8 | A00015-06-00 | COLLAR 6.5X10X23+ ADD | $2.00 | 2 |
| 9 | A00021-24-02 | HOSE CLAMP+ ADD | $2.50 | 2 |
| 10 | A00016-06-00 | COOLANT HOSE A+ ADD | $15.80 | 1 |
| 11 | A00017-06-00 | COOLANT HOSE B+ ADD | $14.00 | 1 |
| 12 | A00018-06-00 | COOLANT HOSE C+ ADD | $14.00 | 1 |
| 13 | A00019-06-00 | COOLANT HOSE D+ ADD | $14.00 | 1 |
| 15 | A00020-06-00 | HOSE 5.5x8x825+ ADD | $21.00 | 1 |
| 20 | A00022-24-02 | HOSE CLAMP+ ADD | $2.50 | 6 |
| 22 | A00012-19-01 | FLANGE BOLT M6X35+ ADD | $2.00 | 4 |
| 23 | A00343-22-01 | U-SHAPED CLIP NUT M6+ ADD | $2.00 | 4 |
| 24 | A00044-21-01 | WASHER 6.4X18X1.6+ ADD | $2.00 | 4 |
| 25 | A00037-06-00 | SEALING WASHER *CHECK IF ACTUALLY AN O-RING*+ ADD | $2.00 | 1 |
| 26 | A00023-24-03 | WIRE HOSE CLAMP+ ADD | $2.00 | 2 |
| 27 | A00024-24-03 | WIRE HOSE CLAMP+ ADD | $2.00 | 1 |
| 28 | A00099-06-00 | COLLAR+ ADD | $2.00 | 1 |
| 29 | A00098-06-00 | RUBBER GROMMET+ ADD | $2.00 | 1 |
